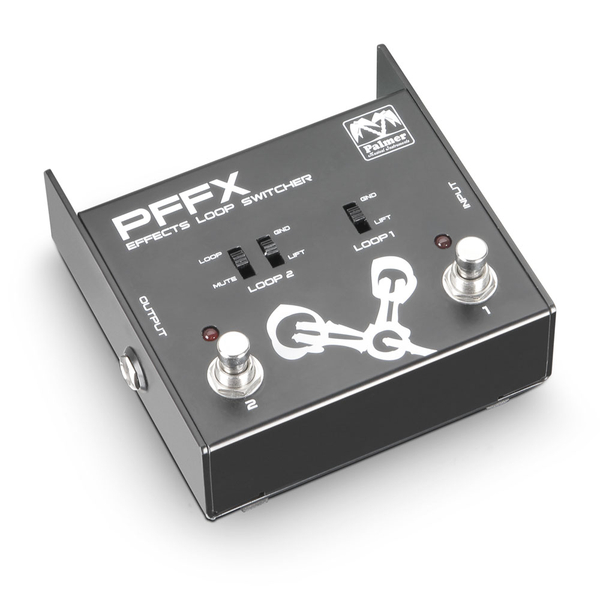

The Palmer PFFX allows you to individually switch on or off two effect loops, or connect both in series and thus supports customised set-ups, e.g. for rhythm and solo sounds. For the FX 2, a mute function for connecting a tuner can be selected and a ground lift switch helps to avoid ground loops. The PFFX can also be inserted in the effects loop of an amplifier. The flexible true bypass pedal is completely passive; for using the LED displays, a 9V block battery or an AC adapter with negative internal contact such as the Palmer PW9V are required.
Specifications
General
Product type
Switches
Switching function
input switcher, output switcher
Number of inputs
3
Input connectors
6.3 mm jack
Number of outputs
3
Output connectors
6.3 mm jack
Transformer isolated outputs
No
Indicators
Loop On/Off
Controls
Channel switch, ground lift, mute
Power supply
9 V DC power supply
Max. Current
0.04
Cabinet material
sheet steel
Cabinet surface
Powder coated
Width
120 mm
Depth
120 mm
Height
65 mm
Weight
0,7 kg
Features
True bypass
