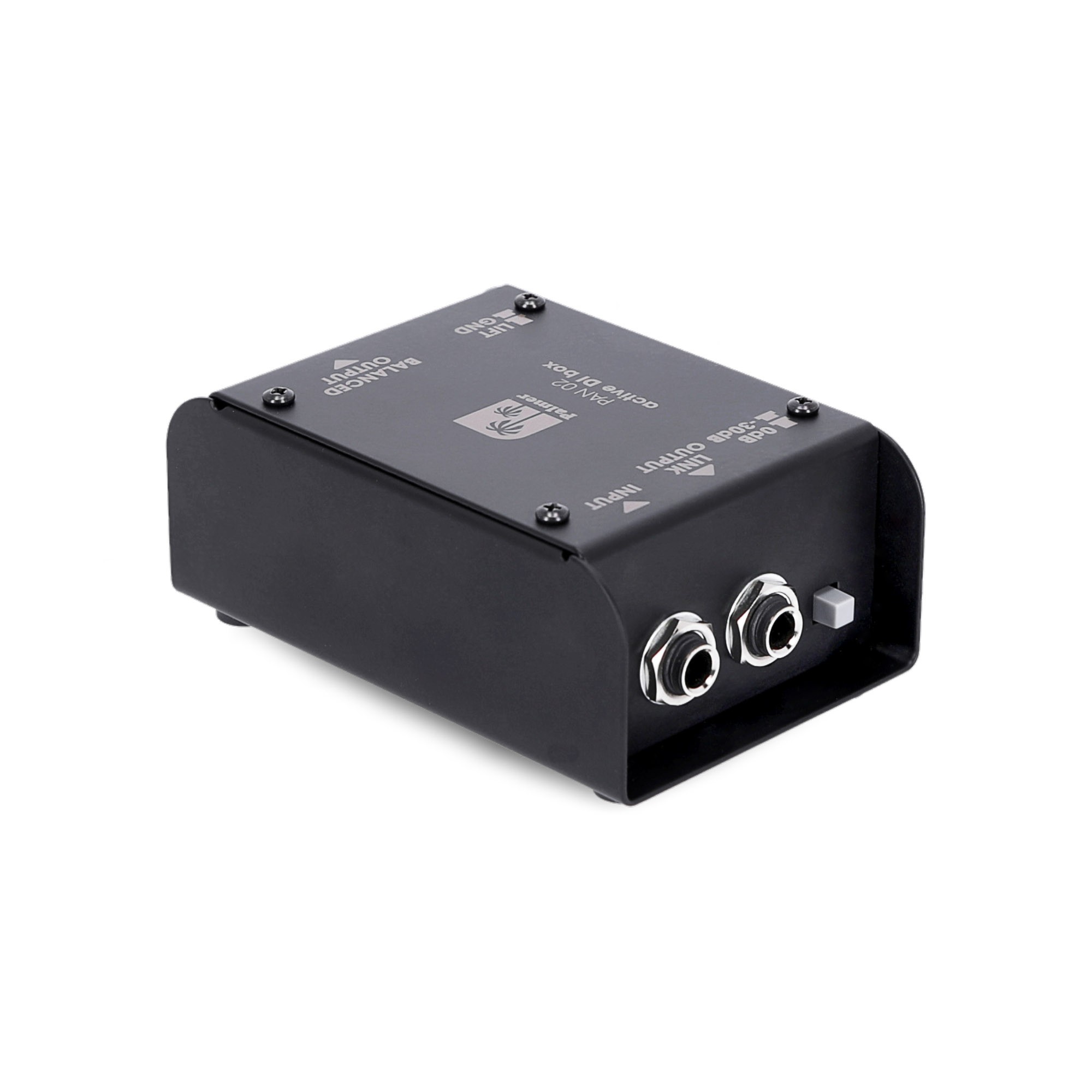

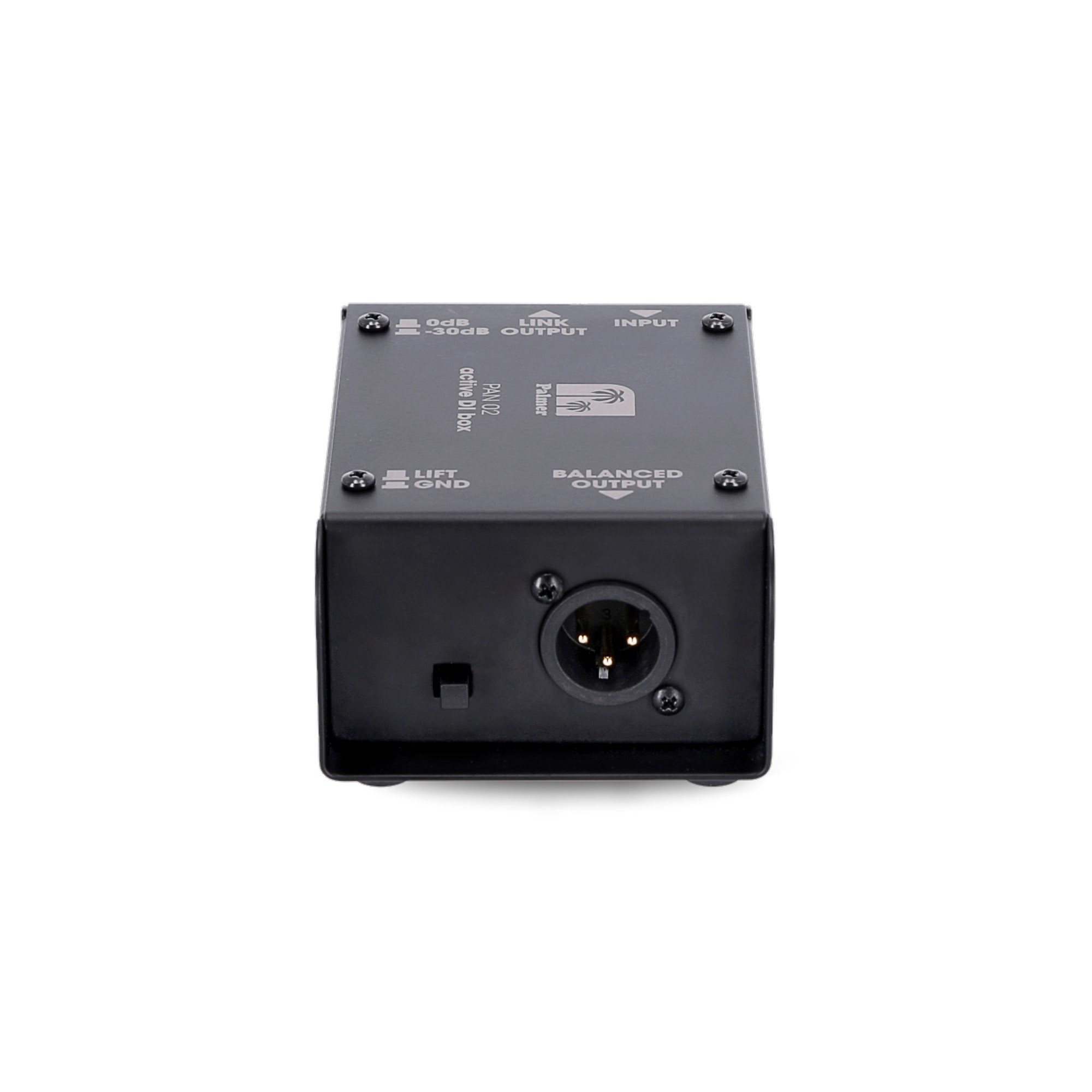

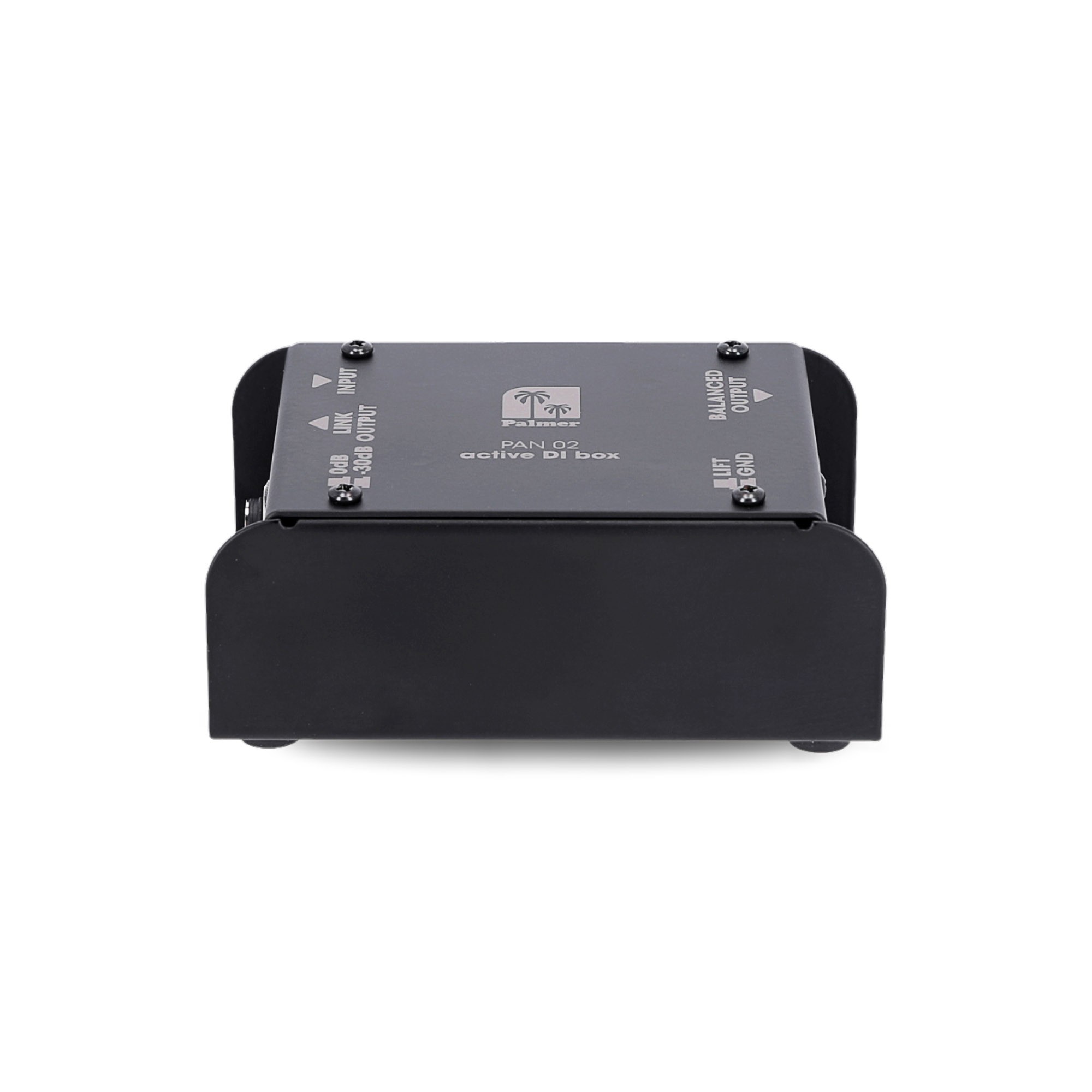

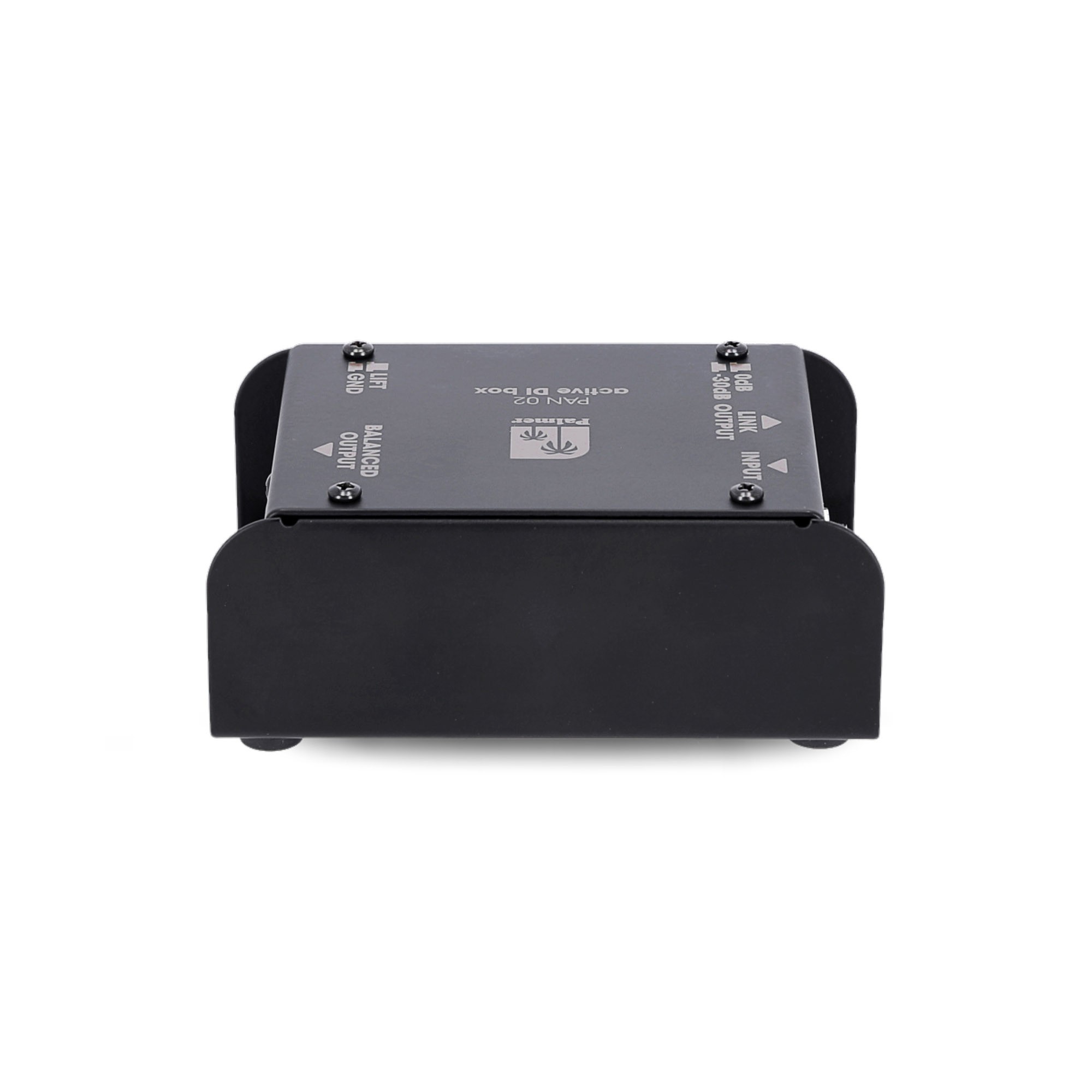

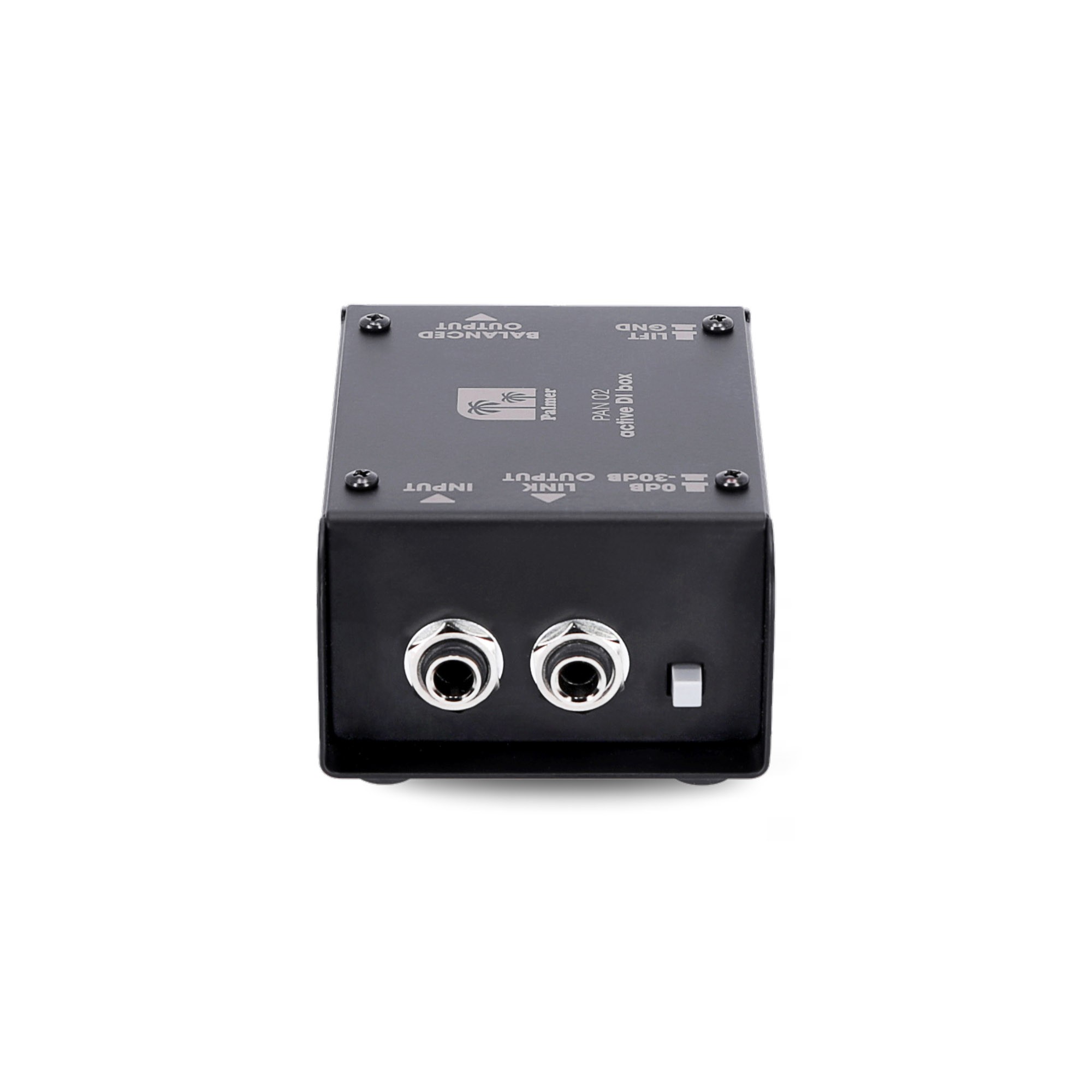

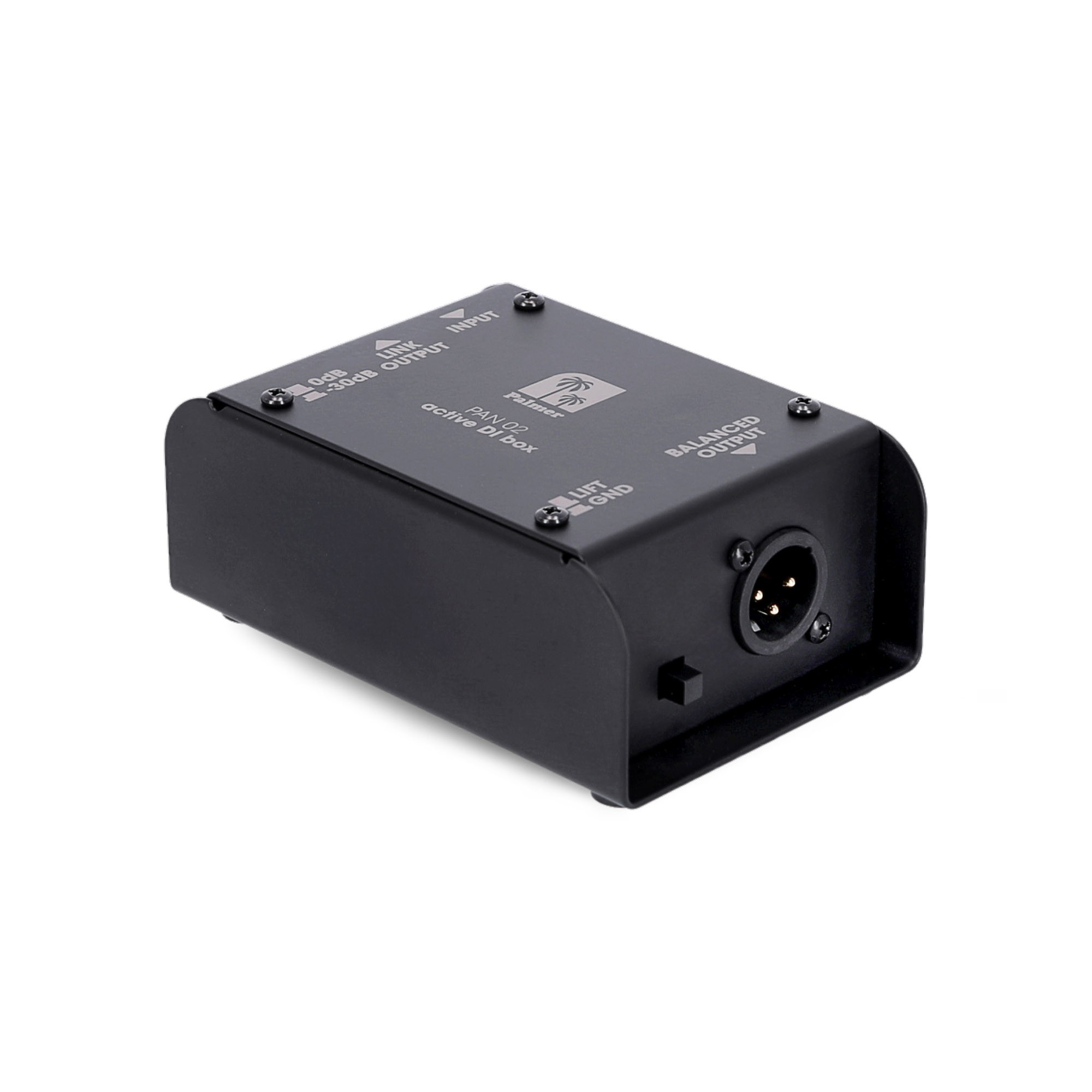

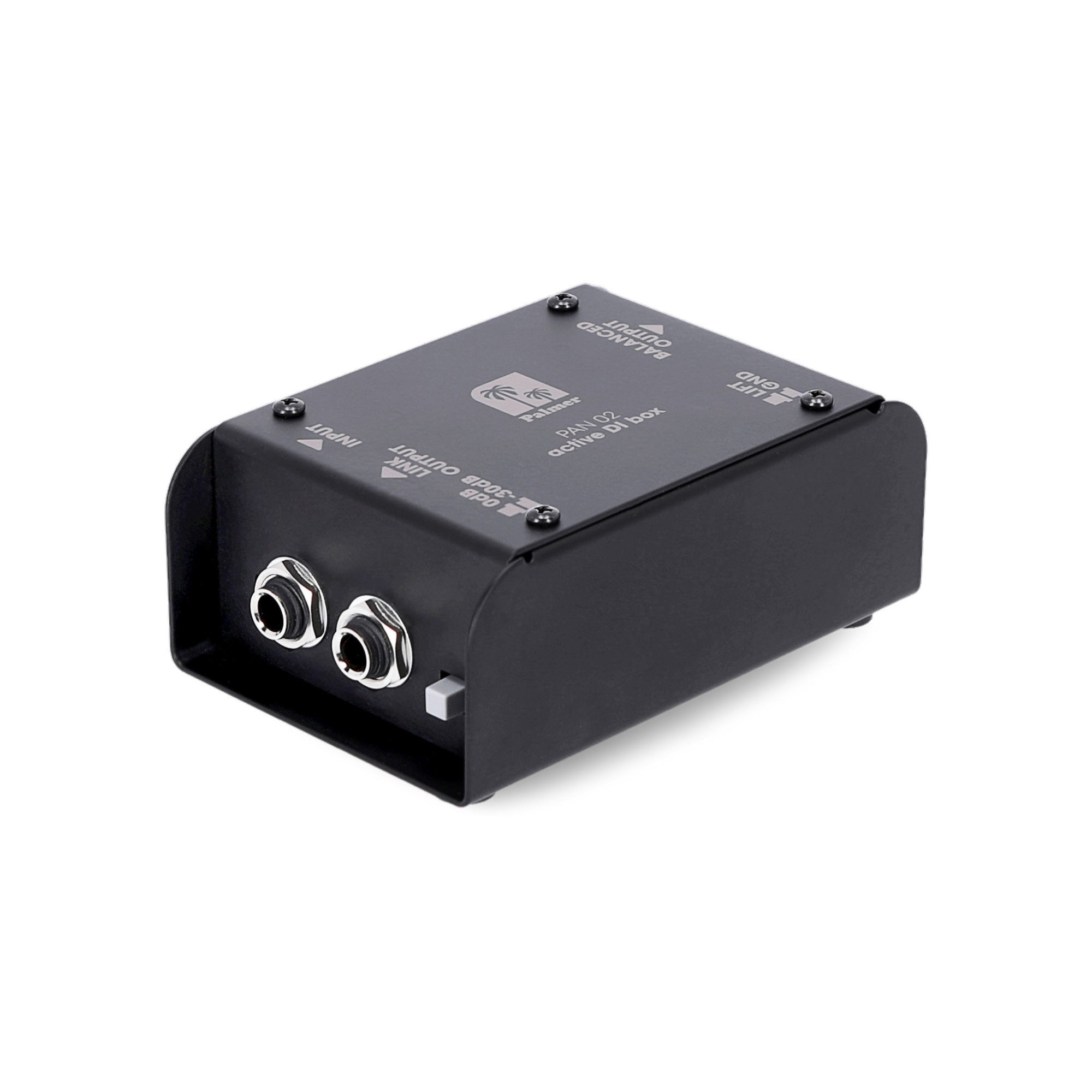

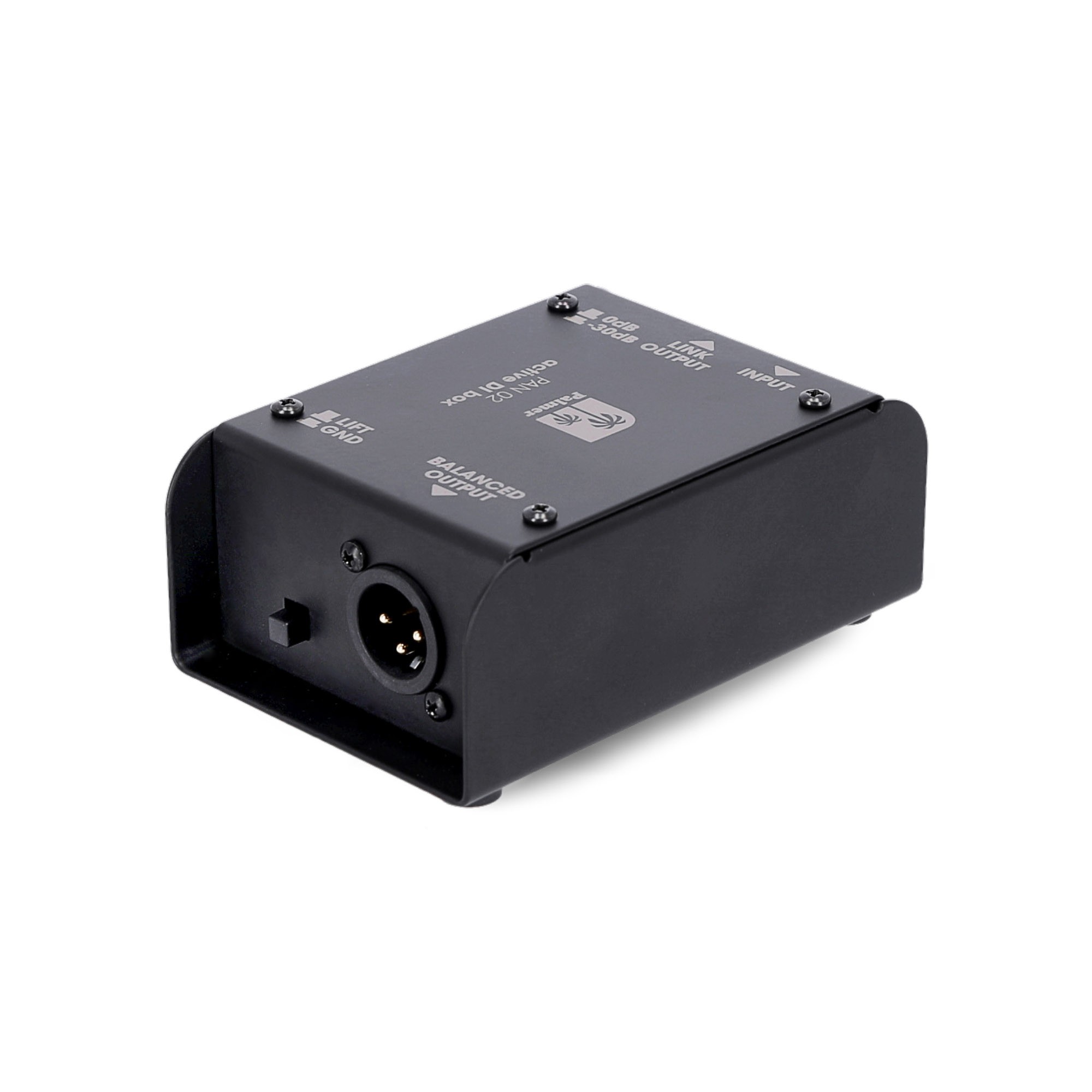

The Palmer PAN 02 Active DI Box is a single-channel device that can be powered by either a 9 V battery or 48 V phantom power. With a high-impedance input, this DI box offers a higher output level compared to a passive DI box. The active circuitry provides a high input impedance of 1 megohm and increased input sensitivity with a typical difference of -4 dB between input and output. The maximum output impedance with phantom power operation is +10 dB, and the output is transformer balanced. The unique “floating ground” circuitry allows for ground lift even during phantom power operation. Housed in a sturdy metal case measuring 110 x 73 x 42 mm, the Palmer PAN 02 Active DI Box is a reliable and versatile tool for audio professionals. It features a single channel, 6.3 mm jack input connectors, and a maximum input level of +45 dBu. Additionally, it has controls for attenuator and ground lift, making it easy to adjust for various sound requirements. With its compact design and high-quality construction, this DI box is ideal for live performances, studio recording, and other audio applications.
General
Product type
DI boxes
Type
active
Channels
1
Inputs
1
Input connectors
6.3 mm jack
Max. input level
+ 45 dBu
Input impedance
(@ 60 Hz) 1 M Ohm(s)
Input pad
0 / -30 dB
Number of outputs
1
THRU outputs/channel
1
Output connectors
6.3 mm jack, XLR
Max. output level
+ 10 dBu
Output impedance
600 Ohm(s)
Frequency response
10 – 20000
Transformer balanced
Yes
Ratio
1 : 1
Controls
attenuator, ground lift
Power supply
+48 V phantom power, 9 V block
Power consumption
3.8 mA (9V), 4 mA (48V)
Cabinet material
sheet steel
Cabinet surface
Powder coated
Width
110 mm
Depth
73 mm
Height
42 mm
Weight
0,353 kg
