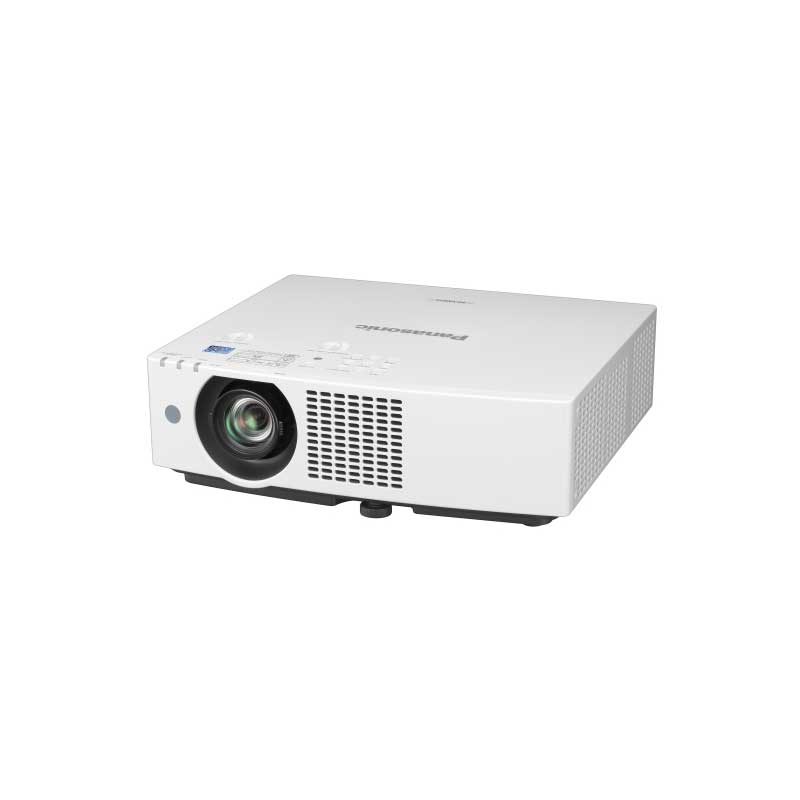

Panasonic PT-VMZ51 LCD Laser Projector 5,200 lm

Description
Panasonic PT-VMZ51 LCD Laser Projector
The Panasonic PT-VMZ51 LCD Laser Projector is the world’s smallest and lightest LCD laser projector in its class, bringing smooth styling and quiet operation to seamlessly harmonise with your interior space
Weighing just 7.0 kg, the PT-VMZ71 series is the smallest and lightest LCD laser projector in its class with up to 7,000 lm of brightness from a compact, easy-to-manage body. Its lightweight design makes it portable enough to carry from room to room, and simple to install on almost any ceiling. The projector’s smooth styling and quiet operation will harmonise with your interior space, blending in and keeping attention focused on the presentation.



The Panasonic PT-VMZ51 LCD Laser Projector has high brightness in compact and lightweight body. Designed for education and corporate applications.

Compact and lightweight LCD laser projector
Installation flexibility adapts projection to any space
Clear images that are easy to see in bright rooms with up to 7,000lm (PT-VMZ71) / 6,200lm (PT-VMZ61) / 5,200lm (PT-VMZ51)
High resolution WUXGA image reproduction
High 3,000,000:1 dynamic contrast ratio


Download Product Catalogue >>

Bright, High-Visibility Images in Well-Lit SpacesBecause office and classroom projectors are used with the room lights on and window blinds open, they need high light output to produce a bright image. Thanks to a carefully refined optical engine, the PT-VMZ71 series generates up to 7,000 lm of brightness, more than most professional projectors of a similar size. Dim, washed out projections are history: expect big, bright, vivid pictures in bright environments to stimulate viewer engagement with the lesson or meeting content.

New 6-Point Screen Adjustment for Projection into Room CornersThe PT-VMZ71 series is the first Panasonic projector to feature 6-Point Screen Correction. It allows you to perform 4-Corner and Horizontal/Vertical Keystone Correction via remote control to remove trapezoidal distortion when projecting from an angle, such as a high ceiling. An extra two control points located at center top and bottom of the screen can be used to remove distortion when projecting an image into the corner of a room.

New Digital Zoom Extender FunctionIn some cases, the throw-distance required to produce an image at the desired size might exceed the projector’s optical zoom range. Panasonic answers the problem with a new Digital Zoom Extender function equipped for the first time on the PT-VMZ71 series. It provides a convenient way to fit the image to your screen beyond optical zoom range, reducing the need to relocate your projector mounts and potentially saving you time, money, and hassle on your next refreshment cycle.

Specifications

Projector type
LCD projectors

LCD Panel | Panel Size
PT-VMZ71, PT-VMZ61 & PT-VMZ51S: 16.3 mm (0.64 in) diagonal (16:10 aspect ratio)

LCD Panel | Display System
Transparent LCD panel (x 3, R/G/B)

LCD Panel | Drive Method
Active matrix

LCD Panel | Pixels
2,304,000 (1920 x 1200) pixels

Light Source
Laser diode

Light Output*1
PT-VMZ51S: 5,200 lm

Time until light output declines to 50 %*3
20,000 hours (NORMAL/QUIET)/24,000 hours (ECO)

Resolution
WUXGA (1920 x 1200 pixels)

Contrast Ratio*1
3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].)

Screen Size (Diagonal)
0.76–7.62 m (30–300 in), 16:10 aspect ratio

Center-to-corner zone ratio*1
85 %

Lens
1.6x manual zoom (throw ratio: 1.09–1.77:1), manual focus lens, F 1.60–2.12, f 15.30–24.64 mm

Lens shift | Vertical (from center of screen)
+44 %, 0 % (manual)

Lens shift | Horizontal (from center of screen)
+20 %, -20 % (manual)

Keystone Correction Range
Vertical: ±25 °, Horizontal: ±35 °

Installation
Ceiling/floor, front/rear, free 360-degree installation

Terminals | HDMI In
HDMI 19-pin x 2 (Compatible with HDCP, Deep Color, 4K/30p*4 signal input), CEC supported

Terminals | Computer 1 In
D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)

Terminals | Computer 2 In
D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)

Terminals | AUDIO 1/2 IN
M3 stereo mini-jack x 2

Terminals | Variable Audio Out
M3 stereo mini-jack x 1

Terminals | Serial In
D-sub 9-pin (female) x 1 for computer control (RS-232C compliant)

Terminals | DIGITAL LINK/LAN
RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control)(HDBaseT™ compliant), 100Base-TX (Compatible with PJLink™ [Class 2],HDCP, Deep Color, 4K/30p*4 signal input)

Terminals | LAN
RJ-45 x 1 for network control, 10Base-T, 100Base-TX, compatible with PJLink™ [Class 2]

Terminals | USB(VIEWER/WIRELESS/DC OUT)
USB connector (Type A) x 1 for Memory Viewer function, optional Wireless Module AJ-WM50 Series, power supply (DC 5 V, maximum 2 A*5)

Power Supply
AC 100 V–240 V, 50/60 Hz

Power Consumption
PT-VMZ71: 420 W(TBD) / PT-VMX61: 370W (TBD) / PT-VMZ51S: 315 W (TBD)

Built in Speaker
10 W monaural

Cabinet Materials
Molded plastic

Filter*6
Included (Estimated maintenance time: approx. 20,000 hours)

Operation noise*1
PT-VMZ71 & PT-VMZ61: 39 dB (NORMAL/ECO), 29 dB (QUIET) / PT-VMZ51S: 37 dB (NORMAL/ECO), 27 dB (QUIET)

Dimensions (W x H x D)
399 mm x 115 mm x 348 mm (15 23/32˝ x 4 17/32˝ x 13 11/16˝ ) (not including protruding parts)399 mm x 133 mm x 348 mm (15 23/32˝ x 5 1/4˝ x 13 11/16˝ ) (with feet at shortest position)

Weight with supplied lens*7
PT-VMZ71: Approx. 7.2 kg (15.87 lbs) / PT-VMZ61: Approx. 6.9kg (15.21lbs) / PT-VMZ51S: Approx. 6.5kg (14.33lbs)

Operating Environment
Operating temperature: 0–45 °C (32–113 °F)*8*9, Operating humidity: 20–80 % (no condensation)

Applicable Software
Multi Monitoring & Control Software, Logo Transfer Software, Presenter Light Software for Windows®*10, Wireless Projector App for iOS/Android™*11

Note
Note: Availability varies by country or region.*1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped. *2 When [PICTURE MODE] is set to [DYNAMIC], [LIGHT POWER] is set to [NORMAL], [DAYLIGHT VIEW] is set to [OFF],and [AUTO POWER SAVE] is set to [OFF]. *3 Around this time, light output will have decreased to approximately 50 % of its original level ([PICTURE MODE]: [DYNAMIC], [DYNAMIC CONTRAST] set to [2], temperature 30 °C (86 °F), elevation 700 m (2,297 ft) with 0.15 mg/m3 of particulatematter). Estimated time until light output declines to 50 % varies depending on environment. *4 4K signals are converted to the projector’s resolution upon projection. *5 On standby, power supply is available with Quick Startup set to ON or Power Management set to Ready. *6 Filter cleaningcycle varies depending on environment. Filter can be washed and reused up to two times. Filter cleaning cycle: 20,000 hours (under dust conditions of 0.08 mg/m3), 10,000 hours (under dust conditions of 0.15 mg/m3). *7 Average value. May differ depending on the actual unit. *8 Lightoutput is limited at operating temperatures higher than 30 °C (86 °F), and projectors cannot be operated at altitudes higher than 2,700 m (8,858 ft) above sea level. *9 When optional AJ-WM50 Series wireless module is attached, operating temperature range becomes 0–40 °C (32–104 °F).*10 When using Presenter Light Software, images are projected with 1280 x 800 dots or 1024 x 768 dots onto the screen. Also, your PC display resolution may be forcibly changed, and audio playback disrupted or become noisy, while images and sound are being transmitted. *11 Whenusing the Wireless Projector app, display resolution differs depending on your iOS/Android™ device and the display device. The maximum supported display resolution is WXGA (1280 x 800).
