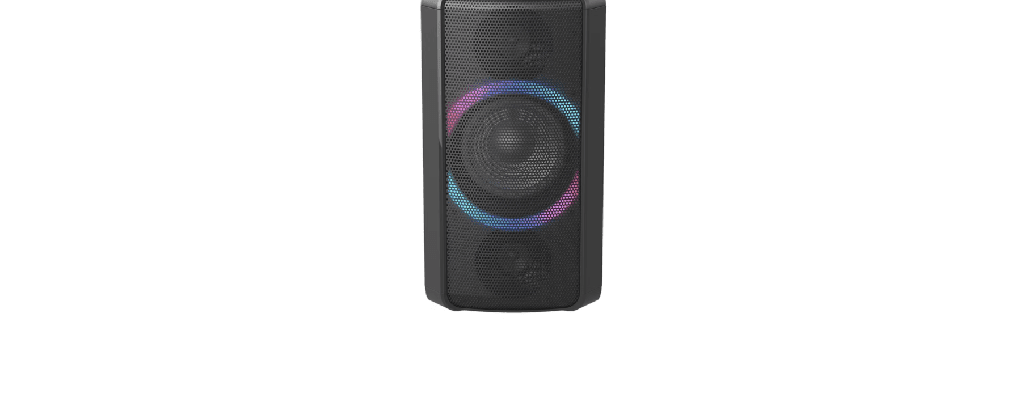

Party Fits Anywhere
The SC-TMAX5 gets the party jumping, delivering powerful and clear sound with a 16cm Woofer with Dual Drive. Supports “Qi” for wireless smartphone charging* and external powerbank**, so you can carry and use it anywhere. Place it either vertically or horizontally and use in various places. Enjoy yourself with all your friends!
Key Features:
Powerful and Clear Sound
The Bass Reflex Port of the TMAX5 is carefully tuned so the efficiency of the speaker’s lowest frequency is optimised thus enhancing the bass. In addition, the TMAX5 is equipped with a 16cm woofer with Dual Drive system, which delivers more powerful sound. It also features two 5cm tweeters, for clear playback of high-frequency sounds as well.
The Dual Drive System delivers powerful bass
The TMAX5 features a Dual Voice Coil, along with a Dual Drive System that outputs the power from two amps to drive a singe woofer. This produces highly powerful sound.
My own space. My favourite music.
The TMAX5 is optimal not only for parties but also for listening by yourself. The compact body equipped with built-in handles is power bank compatible**, so you can easily carry it around anywhere.
The music goes on with “Qi”
The TMAX5 supports “Qi”*, the international standard for wireless power supply. Charge your Qi-compatible smartphone quickly by simply placing it on top of the TMAX5 .
Enjoy your music collection
In addition to an internal memory (4GB) capable of storing 1000 songs, the DJ Jukebox plays songs from the internal memory or a USB device with Mix Play mode. You can also operate playlists and play song requests through the Panasonic MAX Juke App.
Colour
-
Black / Green
Amplifier
-
Amp Type
-
Digital Amp (Stereo)
-
-
RMS Output Power (30 % THD)
-
Front ch (Both ch driven)
-
150 W
75W per channel (30% THD)
-
-
Subwoofer ch
-
–
-
-
Total RMS Stereo mode power
-
150 W
-
-
-
PMPO Output Power
-
1650 W
-
Speaker Unit
-
Front Speaker
-
5 cm Tweeter x2
16 cm Woofer (Hard Press Corrugation)
with Dual Drive x1
-
-
Subwoofer
-
–
-
-
Bass Expand
-
Bass Reflex Port
-
CD / DVD
-
Playback Disc *1
-
–
-
-
Format
-
–
-
Internal memory
-
Capacity
-
–
-
-
Media file format support
-
–
-
USB
-
USB Port
-
USB (Play)
-
-
USB Standard
-
USB 2.0 full speed
-
-
Support Format
-
MP3
-
-
Playback
-
Y *2
-
Radio
-
Station Presets
-
FM
-
–
-
-
DAB Plus
-
–
-
-
-
Radio Data System
-
–
-
-
Antenna Terminal
-
–
-
Network
-
Bluetooth
-
Version
-
Ver. 4.2
-
-
Class
-
Class 1
-
-
Codec
-
SBC
-
-
One Touch Operation from Panasonic TV
-
–
-
-
-
NFC
-
–
-
Smartphone App
-
App Name
-
Panasonic MAX Juke *3
-
-
OS
-
iOS
-
Y
-
-
Android
-
Y
-
-
Windows Phone
-
–
-
-
Other
-
–
-
-
Illumination
-
Multicolour Edge Illumination
(Multiple colours)
Sound Function
-
Super Sound EQ, Super Bass Sound
-
D.Bass
-
Y
-
-
D.Bass Beat
-
–
-
-
-
Preset EQ
-
Local Preset EQ (w/o Footaball and Karaoke)
-
-
Manual EQ
-
3 Band + Surround
-
-
Room-Filling Expansive Sound
-
–
-
-
DJ Function
-
Effect
-
–
-
-
Sampler
-
–
-
-
Karaoke Jukebox
-
–
-
-
DJ Jukebox
-
Y
-
-
-
Low Distortion Technology
-
–
-
-
Karaoke
-
–
-
Terminals
-
USB Port
-
x1
-
-
Audio IN
-
AUX (dia 3.5mm) x1
-
-
Audio OUT
-
–
-
-
Mic Jack
-
–
-
-
LAN
-
–
-
General
-
Power Supply
-
AC
-
AC 220 – 240 V, 50 Hz
-
-
-
Power Consumption *4
-
Normal Use
-
50 W
-
-
Normal Standby
-
0.4 W
-
-
Bluetooth Standby
-
0.5 W
-
-
-
Qi Charger
-
Output Power
-
up to 10 W (Fast Charging) *5
-
-
-
Display Type
-
Indication by LED
-
-
Dimmer
-
–
-
-
Auto Power OFF
-
Y
-
-
Timer Function
-
Sleep
-
–
-
-
Clock
-
–
-
-
Play Timer
-
–
-
-
Rec Timer
-
–
-
-
-
External Power Bank Operation
-
Y (USB Micro-B) *6
-
-
Horizontal / Vertical Placement
-
Y (Vertical=Main/Operation, Horizontal=Stereo)
-
Dimensions, Weight
-
Main Unit
-
Dimensions (W x H x D)
-
250 X 475 X 265 mm
-
-
Weight
-
6.5 kg
-
-
Note:
-
*1 Playability may vary depending on the contents, discs and quality of the recording.
*2 Only a USB flash drive. Playback is not possible from a portable device (Apple, Android, etc.) using a USB extension cable.
*3 Download on Google Play™ and App Store®.
*4 Specifications are subject to change without notice. All numbers given here are approximate.
*5 For Qi Compatible Smartphones.
*6 Use Power Bank with Output Power 2 A or Above, 5 V.Sound Performance: less than 50 % of AC Operation.
