PAOCLXLRM Audio over Cat Loom from etherCON to 4 x XLR male

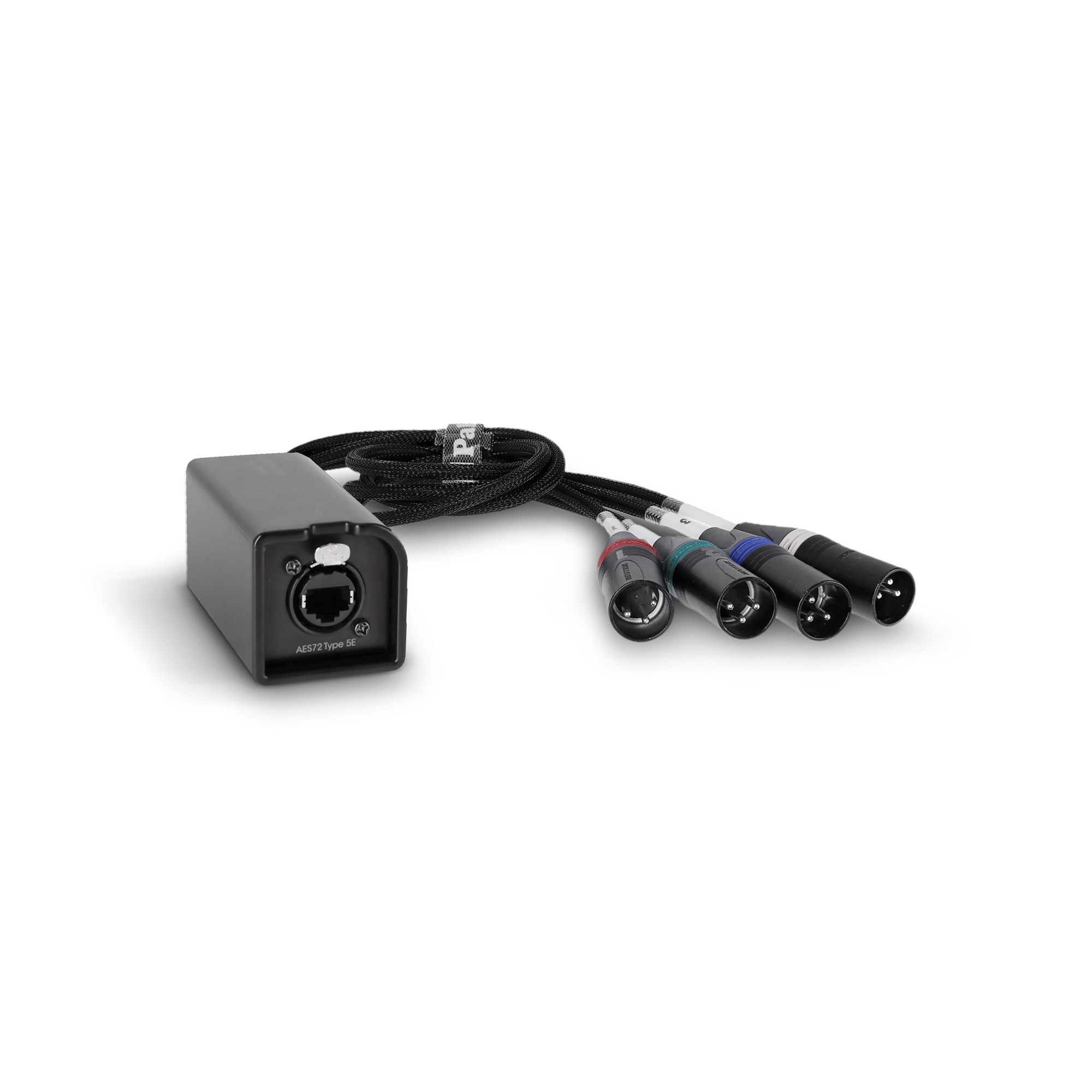

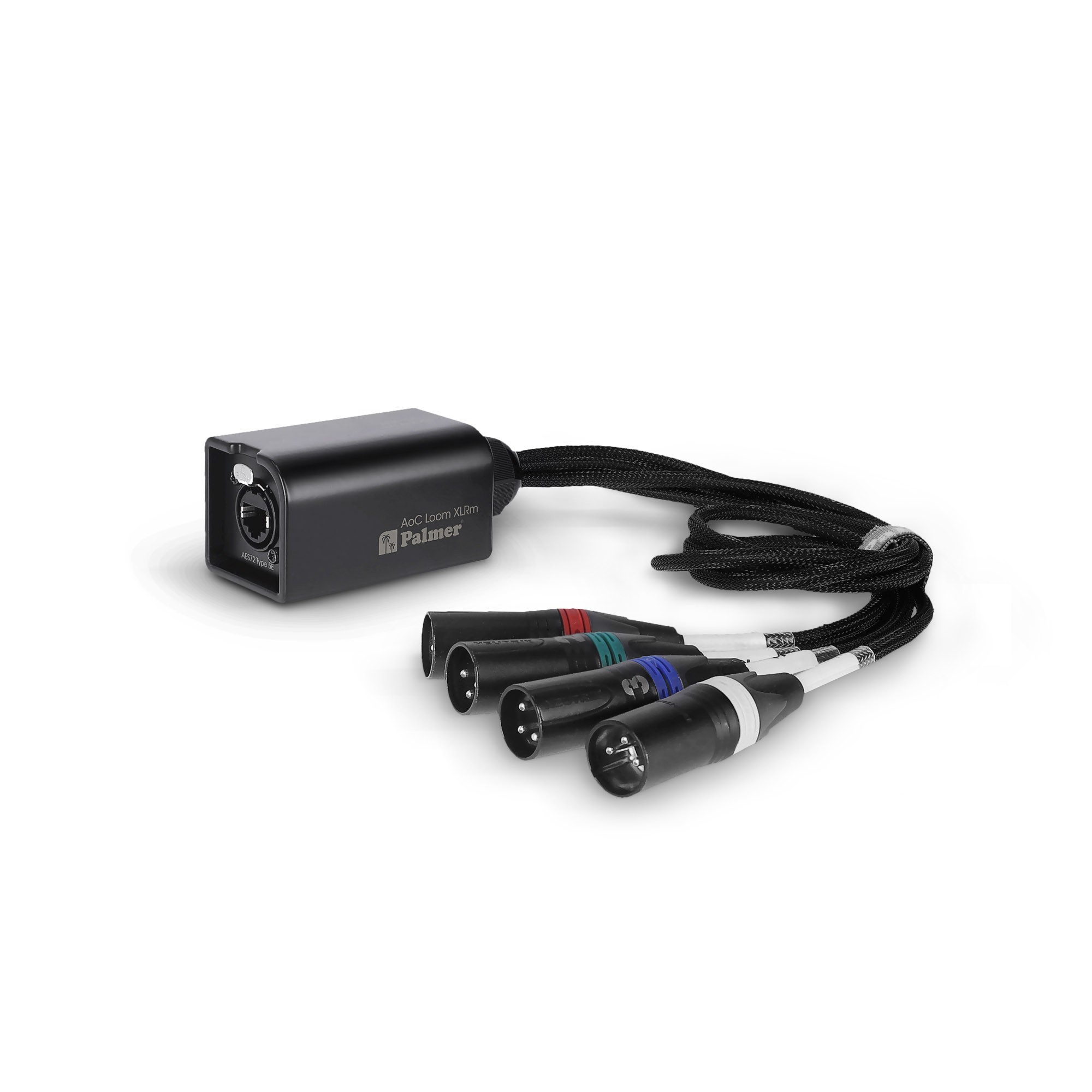

The AoC Loom XLRm is a professional Audio over Cat multicore adapter designed for reliable, high-quality signal transmission using a single Cat5e (or higher) Ethernet cable. Developed by Palmer in Germany, it offers a rugged and space-saving alternative to traditional 4-channel analogue multicores—perfect for touring, fixed installs, and professional AV environments.

Key Features

• Transmits 4 balanced analogue audio channels or 8 digital AES3 channels over Cat5e or higher

• etherCON to 4 × XLR male breakout

• AES72 Type 5E wiring standard

• Fully compatible with 48 V phantom power

• Supports audio, AES3, DMX, and MIDI control signals

• Premium Neutrik components

• Robust mesh cable with 0.5 m splice

• Solid aluminium and steel housing for touring and installation use

• Numbered and colour-coded XLR connectors for quick channel identification

Product Description

The AoC Loom XLRm enables the stable transmission of up to four balanced analogue audio signals—or eight AES3 digital channels—through a single standard Ethernet cable (not included). Its locking etherCON connector prevents accidental unplugging, ensuring reliable performance in demanding live and installed setups.

Beyond audio, the loom can also carry DMX or MIDI control signals, as well as 48-volt phantom power, all over the same Cat cable. This makes it a highly flexible solution for live sound, broadcast, studio recording, press conferences, theatres, and AV installations where clean cabling and fast deployment are essential.

Built with premium Neutrik connectors, a rugged aluminium-steel housing, and durable mesh cabling, the AoC Loom XLRm is engineered for long-term reliability. Its compact, professional design not only withstands tough environments but also keeps stage and rack layouts clean and organised.

Specifications

General

• Product type: Audio over Cat adapter

• Inputs: 4 × balanced

• Input connector: RJ45 (etherCON compatible)

• Outputs: 4 × balanced

• Output connector: 3-pin XLR male

• Cable length: 0.5 m

• Housing material: Aluminium / Steel

• Dimensions (W × D × H): 80 × 45 × 45 mm

• Weight: 0.38 kg

• Operating temperature: –20 °C to +70 °C

• Air humidity: < 80% (non-condensing)

Audio Performance

• Max input level ( <1% THD, 1 kHz ): +32 dBu

• Frequency response: 0 Hz – 20 kHz

• THD (1 kHz, +4 dBu, unity, unweighted): < 0.0005%

RJ45 Pin Layout (AES72 Type 5E, balanced, even = +)

• Pin 1: Channel 3 –

• Pin 2: Channel 3 +

• Pin 3: Channel 4 –

• Pin 4: Channel 1 +

• Pin 5: Channel 1 –

• Pin 6: Channel 4 +

• Pin 7: Channel 2 –

• Pin 8: Channel 2 +

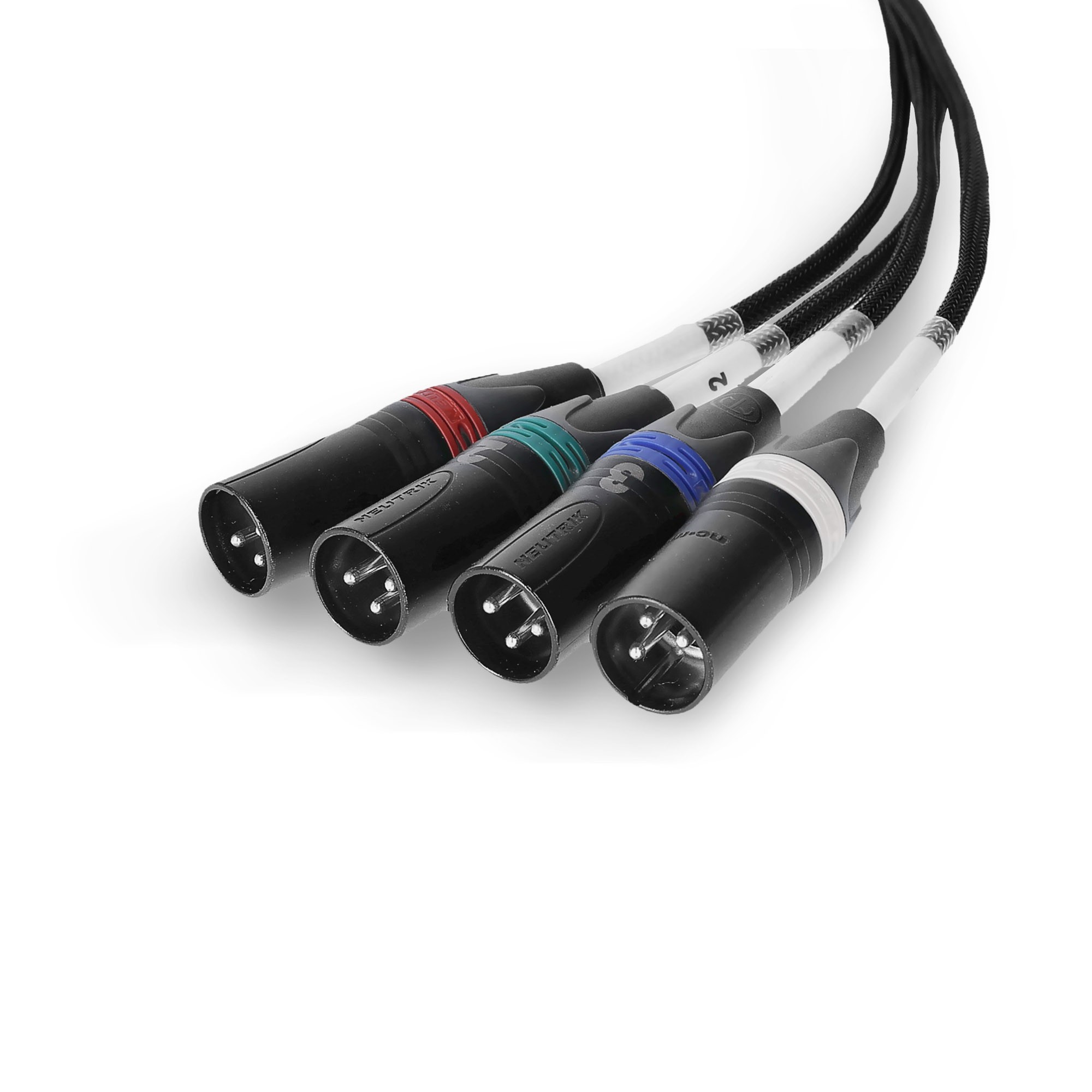

Channel Colour Coding

• Channel 1: Red

• Channel 2: Green

• Channel 3: Blue

• Channel 4: White

Ideal For

• Live sound and touring systems

• Studio and broadcast environments

• Theatre and corporate AV installs

• Reducing cable bulk without sacrificing audio quality

A compact, robust, and flexible Audio-over-Cat solution—delivering the performance and reliability professionals expect from Palmer.
