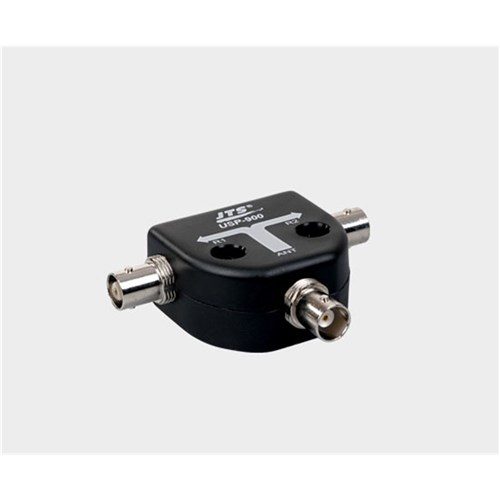

Passive 2-Way Antenna Splitter Wideband

$79.00 Inc GST

Passive 2-Way Antenna Splitter Wideband

Stock on Order or Currently Unavailable Contact for ETA

Notify me when the item is back in stock.

Add to Wishlist

Free NZ shipping on all orders over $499 (Select at Checkout)

  • $9 Flat Rate Shipping (For Orders Under $499)
  • Order Before 12pm to get Dispatched Same Day (Hamilton Stock Only) Excludes Weekends and Holidays
    *If Only 1 item is Left in stock this may have been opened for display
    *Image is for illustrative purposes only. Please refer to product description.

Questions? Ask Us here

USP-900

Full frequency band: 470~870 MHz.
One BNC antenna in and two BNC out.
RF Carrier Frequency Range: 10~1,000 MHz
VSWR(Voltage Wave Standing Ratio): 1.2
Impedance: 50Ω
Isolation: 20dB
Insertion Loss: 2dB
Dimension(mm): 72.2 (W)* 23.6(H)* 54.9 (D)
Weight: 62.6 grams

SPECIFICATIONS
Full frequency band

470~870 MHz.
RF Carrier Frequency Range

10~1,000 MHz
VSWR(Voltage Wave Standing Ratio)

1.2
Impedance

50Ω
Isolation

20dB
Insertion Loss

2dB
Dimension(mm)

72.2 (W)* 23.6(H)* 54.9 (D)
Weight

62.6 grams
