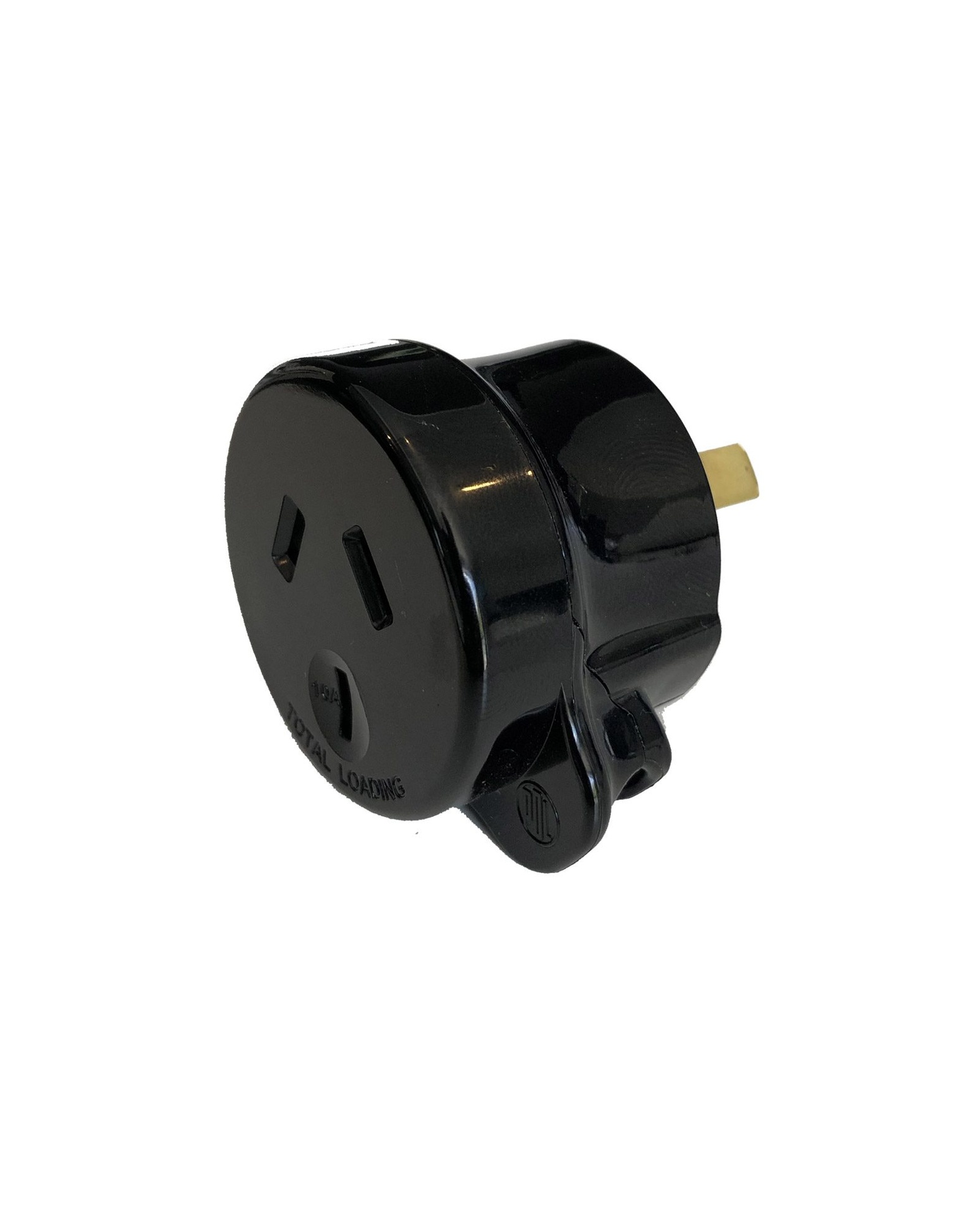

PDL 10A Standard Tapon (Piggy Back) Plug PDL 940
Available in Black, White and Clear
Heavy Duty with Insulated Pins
Full Range Available
Available in white, black, and clear.
Sheathed plug pins.
Impact resistant body for long life.
New cord clamp design, single screw to tighten.
Clearly marked terminals.
New terminal design and layout for ease of termination.
Terminals incorporate a clamping design for positive and fast termination.
New serrated terminals provide further assistance for gripping conductors during termination.
New terminal screws, combination No1 phillips/slot screws.
Captivated fixing screws from base to cover.
SPECIFICATIONS
10A rating at 230-240V ac, 50Hz.
Terminals accommodate conductors from 0.75mm2 to 1.5mm2
Recommended for use with PVC insulated ordinary duty 3 core circular flexible cords.
Recommended stripping length equals 40mm, including 8.5mm bare wires.
Complies with AS/NZS3112 and AS/NZS3100.
APPLICATIONS
Wherever the number of appliances that need to be connected is high relative to the number of socket outlets available.
The clear version has a white body and clear cover which allows easy visual inspection of the integrity of termination.
