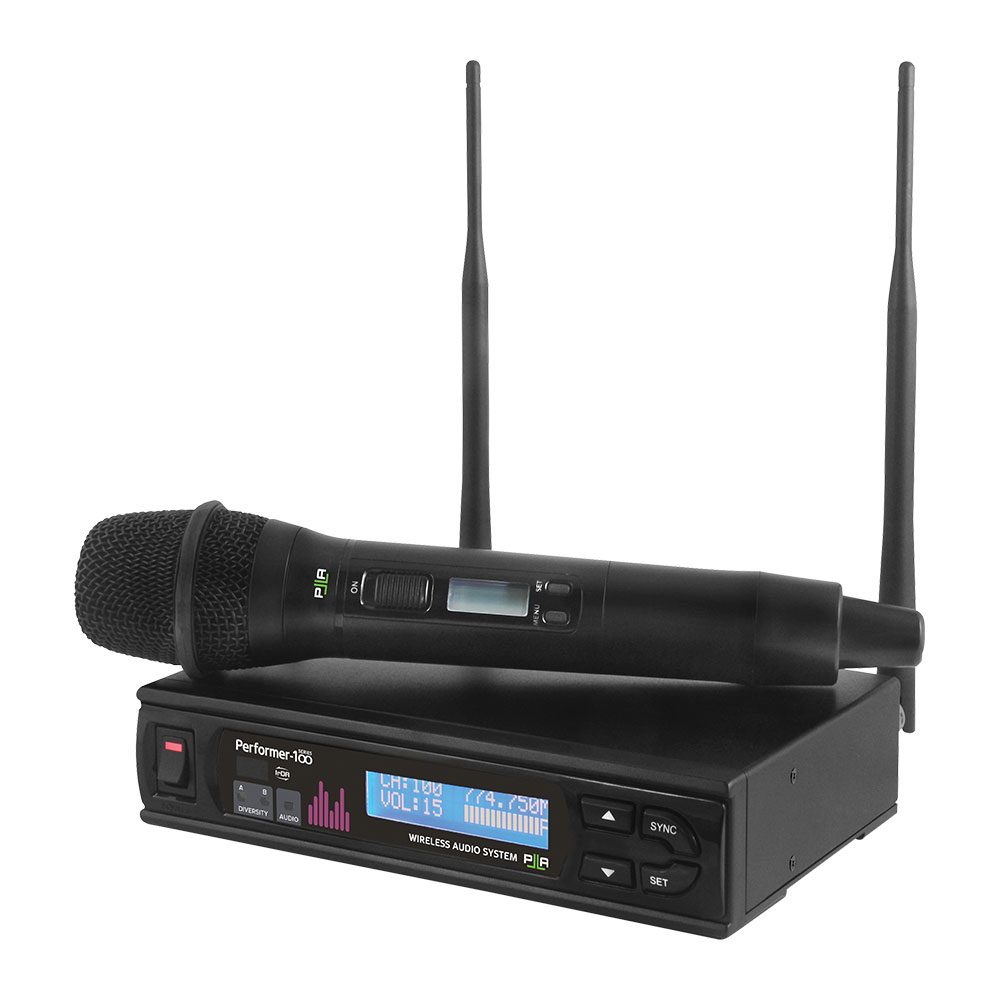

PERFORMER-100 Handheld wireless system package

UHF 100-Frequency 2-Way Synchronising True Diversity Receiver 100 factory preset user-selectable UHF frequencies. Advanced microprocessor control, excellent RF design with improved signal performance for interference free multi-channel operation. Patented IrDA technology for 2-way sync between transmitter and receiver. SCAN function automatically locates the next clean frequency. More than 10-12 non interfering channels can be operated simultaneously within a selected 25MHz bandwidth. Diversity design for high sensitivity, high selectivity, and high image/spurious rejections. LCD display on the receiver shows selected frequency. Antennas can be either rear or front mounted. Anti-interference Pilotone control and RF noise squelch circuitries. RF & AF LED indicators. Balanced (XLR) x 1 / unbalanced (O6.3mm) x 1 audio outputs. Half-rack metal chassis, mountable with optional mount kit (PA-WRK-1 for 1 unit, PA-WRK-2 for 2 units). Matching transmitters: HH6100, BP6100. True diversity reception for best performance and reliability. Receiver provides power for Parallel Audio antenna systems to enhance reception range and signal stability. Handheld System: Performer-100 Wireless Receiver HH6100 Handheld Transmitter Channel: Single Chassis: EIA standard 19” 1/2U Frequency range: UHF 520-675MHz (3 available bands) Bandwidth: Up to 25MHz Receiving mode: True Diversity Peak deviation: ±40kHz Channel sync: 2-way (receiver – transmitter) Sensitivity: S/N > 80dBm at 10dBμV S/N ratio: > 110dB (A) T.H.D. : < 0.5% @ 1kHz Frequency response: 50Hz – 18kHz Receiving antenna: Rear Panel. Detachable Preset channels: 100 Oscillation mode: PLL synthesised, frequency stability ≤± 0.005% (-10 – +60C) Squelch: Pilotone & Noise-cancelling dual-squelch circuit Audio output adjustment: Gain control circuit for adjustment of output volume Output connector: Balanced XLR and unbalanced 6.3Ø Power supply: 12V DC, 1.0A Power consumption: 12W Dimensions (mm): 200 (W) x 44 (H) x 150 (D) Weight (kg): 0.63
