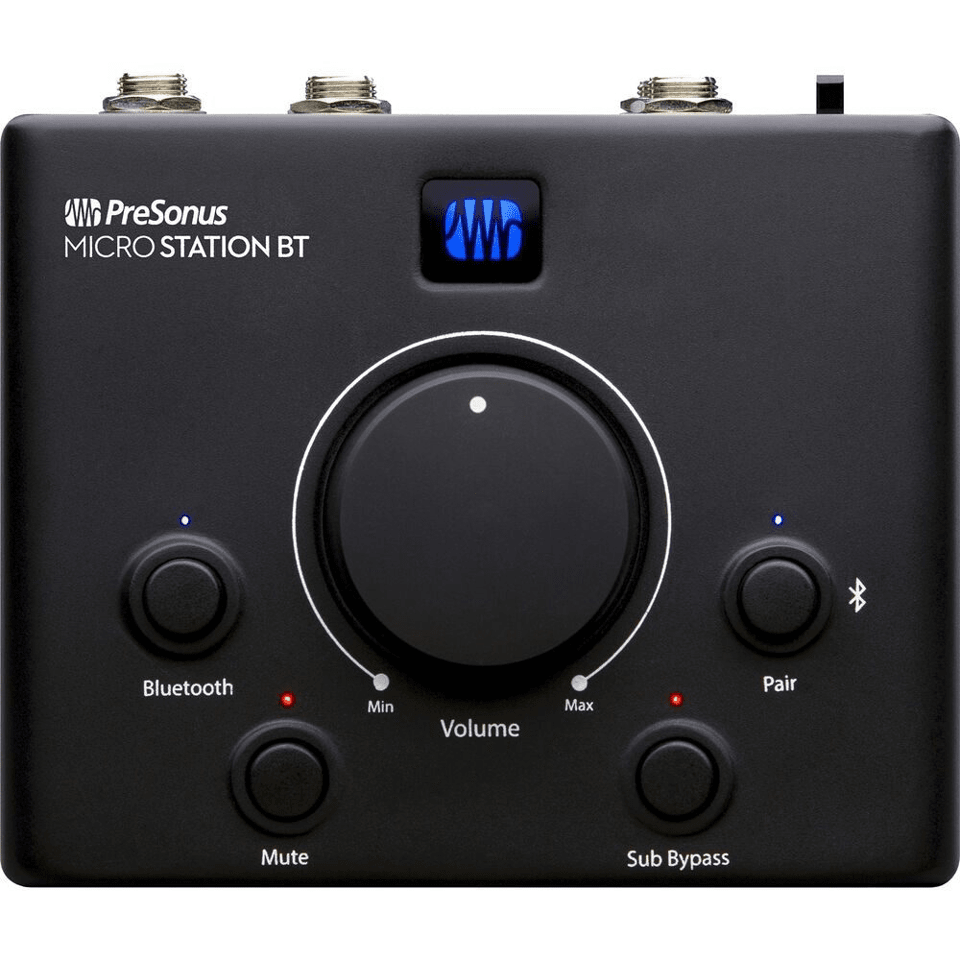

Effortlessly add both Bluetooth connectivity and a subwoofer output to any stereo monitoring setup with the PreSonus MicroStation BT, a compact and easy-to-use monitoring controller for critical listening and mixing applications. This device combines a Bluetooth receiver with a conventional monitor controller, giving you the ability to stream audio from any Bluetooth-enabled source straight to your 2.1 loudspeaker setup.
Connections couldn’t be simpler: route your mixer or interface into the MicroStation BT’s two 1/4″ balanced inputs. Then, route sound to the speaker outputs over the 1/4″ jacks. Now you’ll have a big volume knob to surgically control the level of signal going to the monitors. What’s more, you’ll be able to connect a dedicated subwoofer to the monitoring system to expand your low end, so you can feel the music, and judge it more accurately during the mix. Add to this the ability to pair Bluetooth-enabled devices, and you have a handy way for listening to music straight from your phone. Headphone monitoring and auxiliary inputs are also on hand to round out the system’s functionality.
Please note: While the MicroStation BT comes with a USB-A to USB-C cable, it does not come with a wall charger. Nearly any conventional USB-A power brick will work.
Key Features:
Compact and Versatile Monitoring Control
- High-resolution, large Volume knob for surgically accurate level control
- Balanced 1/4″ inputs for audio interfaces and mixers
- 3.5mm input for auxiliary sources, such as media players
- 3.5mm headphone and auxiliary output for private headphone monitoring, or for routing to small speakers like boomboxes
- Flexible connectivity and control in small footprint
Quick and Easy Bluetooth Pairing
- Add Bluetooth connectivity to nearly any stereo listening environment
- Stereo Bluetooth input lets you add wireless connectivity to any speaker
- Bluetooth On/Off button lets you toggle between Bluetooth and analog sources
- Easy-to-use pairing button lets you quickly pair your favourite Bluetooth-enabled device
Easily Add a Subwoofer
- Add a subwoofer to nearly any stereo listening environment
- Mono 1/4″ and RCA outputs ensure compatibility with any subwoofer
- Subwoofer Bypass button lets you cut out the subs with the press of a finger
Specifications
| Controls | On/Off Switch Bluetooth Button Mute Button Pair Button Sub Bypass Button Volume Knob |
| Connections | 2 x 1/4″ TRS Inputs 1 x 3.5 mm TRS Aux Input 1 x 3.5 mm Aux / Phones Output 2 x 1/4″ TRS Outputs 1 x 1/4″ TRS Sub Output 1 x RCA Unbalanced Sub Output |
| Frequency Response | System Wide: 20 Hz to 20 kHz Subwoofer Out: 20 to 200 Hz Bluetooth: 10 Hz to 65 kHz (±0.5 dB) |
| Dynamic Range | 108 dB (Main Inputs, Auxiliary Input) |
| THD+N | Main L/R Inputs: 0.001% Auxiliary Input: < 0.01% Main Output: < 0.02% Headphone Output: < 0.50% Aux Output: 0.001% Subwoofer Output: 0.002% |
| S/N Ratio | Main L/R Inputs: > 102 dB Main Output: > 98 dB Subwoofer Output: > 102 dB |
| Power Requirement | Powered Through USB Connection USB-C to USB-A Cable Provided (Wall Charger Available Separately) |
| Dimensions | 4.9 x 3.9 x 2.2″ / 125 x 100 x 56 mm |
| Weight | 1 lb / 450 g |
