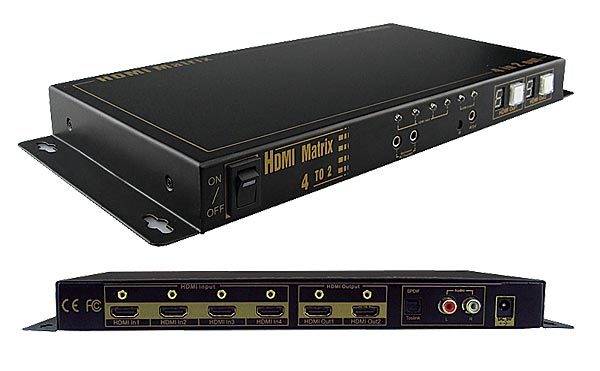

Professional 4 in 2 out (4 x 2) True HDMI Matrix Slim Size (OP-HKTM0402MH)


KEY FEATURES

4 HDMI input and 2  HDMI display sink . Any input to any output
HDCP 1.2 compliant
HDMI1.4a 1080P Full-HD output, deep color 36bit
Super Slim type,easy to portable
HDMI digital audio format: DTS-HD/Dolby-true-HD/LPCM7.1/DSD
Support Xv-YCC and Blue-Ray player for 24fs film format
Manual or remote select source input signal to different sink
It can smartly jump over those input sources which are not in work

SPECIFICATIONS


OP HKTM0402MH

HDMI version
HDMI1.4a with 3D

HDCP version
HDCP1.2

Support HDMI resolution
1080P/1080i/720P/576P/576i/480P/480i

Support video color bit
24bit/deep color 36bit

Support audio format
DTS-HD/Dolby-true-HD/LPCM7.1/DSD

Date transfer speed
6.75Gbps

Input Video signal
5.0Volts P-P

Input cable distance
<=20m 24AWG Cable

Output cable distance
<=20m 24AWG Cable

Max working current
3000mA

Power adapter Supply
DC: 5V, 3A

Power adapter format
Input: AC (50HZ.60HZ) 100V-240V; Output: DC5V

Operating Temperature range
(-15 to +55 Degree)

Operating Humidity range
5 to 90%RH (No Condensation)

Dimension (Lx W x H)
317x256x28(mm)

Weight

1968g
