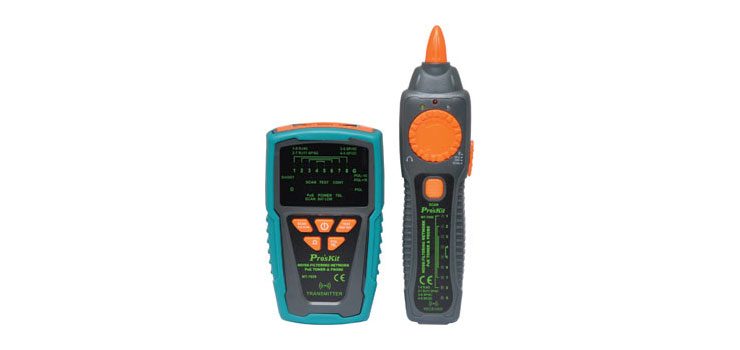

Professional Cable Tracer & PoE LAN Cable Tester

This Noise-Filtering Network PoE Toner & Probe allows users to quickly locate and verify the cable status and troubleshoot wiring for continuity, shorts, opens and crossover on RJ45, Lan cable Cat5, 5e, 6 (UTP/STP), RJ11/12 telephone cable Cat. 3 (2/4/6 pin) & normal solid/stranded wire by alligator clips patch cord. Telephone line polarity and status (severed lines, the off-hook condition, or incoming call ringing) can be indicated and detected easily as well. Ideal for all installation and maintenance fields of telecommunication, networking, datacom, Audio/Video, cable TV, and all weather cabling, etc.

Features

• PoE switches & STP wire tracing up to 3KM
• Telephone line status/polarity indication
• Cable mapping & status indication up to 300M for continuity, shorts, opens and crossover
• Fast/slow scan function
• Display cable status and troubleshoot wiring
• Non- contact voltage detecting

• Transmitter
• Tone frequency: 130KHz
• Max. distance of transmission: 3km
• Max. distance of cable map: 300m
• Max. working current: ≦70mA
• Tone mode: Single tone
• Compatible connectors: For RJ45(8 pin)/RJ11(6 pin) cable map test. RJ45 SCAN socket : for RJ45 locating individual wire pairs RJ11 SCAN socket: for RJ11 locating individual wire pairs
• Cable types: RJ45 Lan cable Cat 5, 5e, 6(UTP/ STP), RJ11/12 telephone cable Cat 3 (6P/2C/4C/6C)
• Function selection: 5 Press button switch (POWER、SCAN/PoE. SCAN,TEST/FAST TEST、Ω,POL/TEL)
• Continuity test: 1 LED (≦300Ω), Coaxial cable & normal solid/Stranded wire by alligator clips patch cord.
• Max. signal voltage: 8Vp-p
• Cable map indication: 8 LEDs, Fast/Slow dual speed
• Shielded indication: 1 LED
• Telephone line polarity, status indication: 1 Dual color LED
• Live telecommunication equipment test and router test: Yes
• Voltage protection: DC 48V
• Auto power off: 1 hour
• Low battery display: 6.5V (Power LED flashes)
• Battery type DC 9.0V (NEDA 1604/ 6F22 DC9V ×1pce)
• Dimension: 138L×80W×35D mm
• Weight: 140g
• Receiver
• Frequency: 130KHz
• The Max. working current: ≦115mA
• Compatible connectors: RJ45(8 pin)/RJ11(6 pin)
• Function selection: 4 Position mode switch (LED, NCV, OFF, SCAN)
• Earphone jack: 1
• Signal status indication: 1 dual colour LED & Buzzer
• Cable map indication: 8 LEDs
• Shielded indication: 1 LED
• NCV indication; 1 LED (AC90~1000V，≥50mm，≤100mm)
• LED illumination: 1 LED
• Power indication: 1 LED
• Battery type: DC 9.0V (NEDA 1604/ 6F22 DC9V ×1pcs)
• Dimension: 203L×50W×32D mm
• Weight: 95g
• Accessories: RJ45 cable patch cords, RJ11 cable patch cords, RJ11 to alligator clips patch cord,
• earphone, storage bag, user manual

*Specifications are subject to change without notice.
