Polycarbonate (PC) frame
Unbreakable, impact resistant polyethylene (PE) drum
Lightweight (1.8 kg)
Description

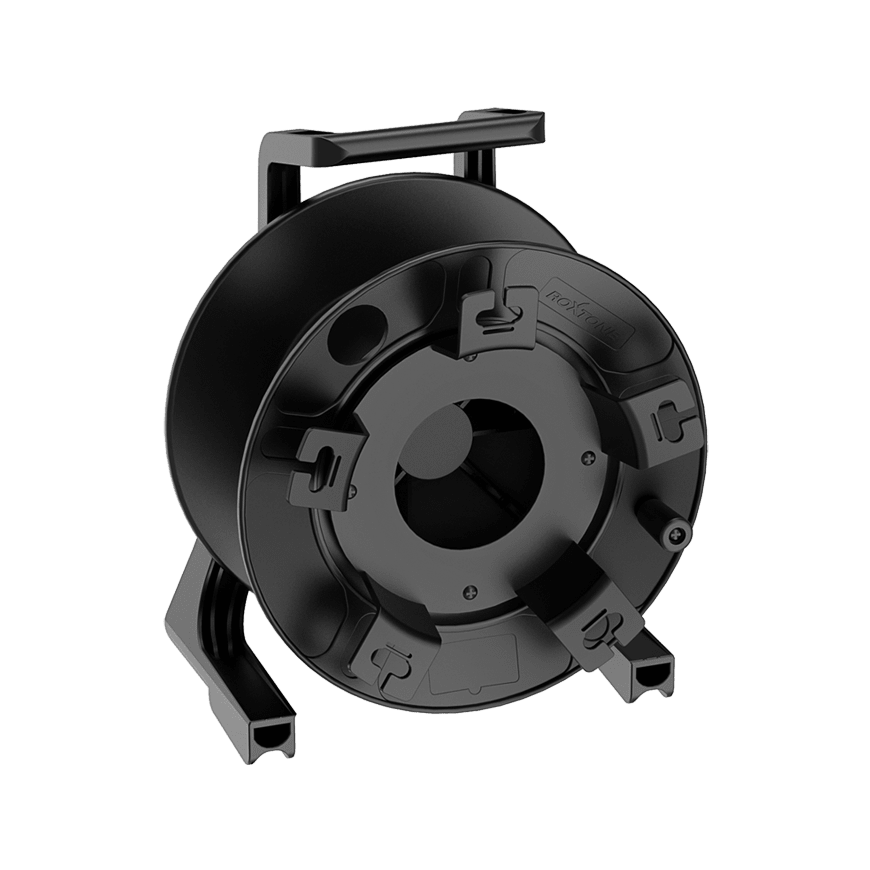

The CDM310 is a cable reel designed for intensive and professional use constructed using lightweight, extremely strong and impact resistant materials. The frame construction is made of polycarbonate (PC) materials while the drum is made by impact resistant polyethylene (PE). The lightweight construction in combination with the ergonomic grip allows easy carriage for mobile applications. The front side is fitted with an external cable winder allowing easy and clean winding of a patch tail, which can be replaced by a variation of optional center plates with different connector cutouts (depending of the application). The drum dimension of Ø 312 mm allows winding of a standard microphone cable (Ø6.5mm) up to 140 meters.
Specifications
Product features
Drum
Inner diameter
171 mm (Ø)
Outer diameter
312 mm (Ø)
Depth
120 mm
Construction
Sturdy polycarbonate frame
Impact resistant plastic drum
Dimensions
312 x 392 x 234 mm (W x H x D)
Weight
4 kg
Application
Rental & MI
Series
Bulk & Accessories
