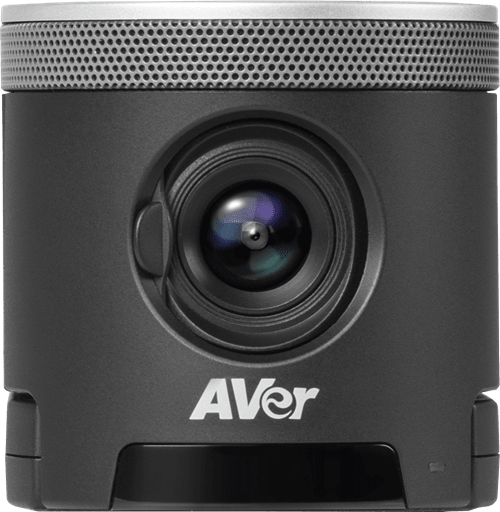

CAM340+
Capture the Huddle Room with an Ultra-Wide FOV
Huddle Room Conference Camera
Unbox, unfold, and connect to instantly start a next-generation video communication experience from your huddle and small conferencing rooms.
Fit Everyone into Your Meeting
Obtain ultra-wide field of view video conferencing in your meeting room with a performance-quality multi-glass lens with deep focus and a staggering 120° FOV. Fit everyone at the table and the entire whiteboard into your meeting with minimal distortion. No more awkward seating arrangements!
Premium Video Quality
Experience your meetings in 4K at 30fps with the versatile CAM340+. Capable of 4X zoom, as if it were a traditional optical camera, the CAM340+ scans the room with no moving parts and no quality lost.
*ePTZ and 4X zoom are not available in 4K or 60fps
Freedom to Collaborate Anywhere
The CAM340+ is a completely portable solution for ultimate video conferencing convenience. With a versatile monitor mount, easy-to-carry size, and durable construction, the CAM340+ gives users the flexibility to make any room a huddle room.
Reliable Video and Outstanding Quality
AVer’s quality manufacturing process ensures that the CAM340+ is always ready for use. Designed for durability, the CAM340+ camera is built to be durable and reliable. With AVer’s industry leading 3+2 years warranty program, we make sure that AVer is always there with the support you deserve.
Specifications
Camera
- Sensor: 1/2.5″Sony Exmor 4K CMOS sensor
- Frame rate: 4K 30fps; 1080p , 720p , 960×540, 848×480, 800×448, 640×480, 640×360, 424×240, 320×240, 320×180 at up to 60fps
- 120° Wide field of view
- Lens iris, focus, zoom: fixed
- AE, white balance: auto, manual override by PTZApp
- Minimum working distance: 80cm
- Back light compensation and 2D noise reduction technology for optimizing light balance in different conditions
- Standard tripod screw holes
- SmartFrame function*
- *Get notified while this function is available, please send request to our technical support to leave your contact information.
Zoom, Pan, and Tilt Movement
- Zoom: up to 4X leveraging 4K sensor (not available in 4K or 60fps)
- Pan and tilt: when zoomed in leveraging 4K sensor
Microphone
- 1 uni-directional microphones
- Frequency response: 100~12K Hz
- Sensitivity: -37dB
- *This function may not be available in certain regions
Connectivity
- USB Type C connector
- Reset button
- DC jack for power adapter (for USB 2.0 connection)
Video Format
- YUV, MJPEG
USB
- 2.0, 3.1 Gen1 type C
- UVC (USB Video Class) 1.1
Control
- IR remote control (optional accessory, compatible with CAM540)
- UVC / plug-and play
- PTZApp
Security and Mount
- Built-in TV mount (above TV, up to 46 mm deep)
- Kensington slot
- 1/4″ tripod mounting screw
System Requirement*
- Windows 7/10
- Mac OS X 10.7 or higher
- Android 7.0 or above
Hardware Spec*
- 2.4GHz Intel@ Core 2 Duo processor
- 2GB RAM or more
- USB 2.0 port and above (USB 3.1 required for 4K or 60fps)
Power Supply
- Consumption: USB 3.1 Supports up to 4K : 5V/0.9A;
- USB 2.0 Supports up to 2K: 5V/0.5A
Environmental Data
- Operation temperature: 0 ~40°C
- Operation humidity: 20% ~80%
- Storage temperature: -20 ~60°C
- Storage humidity: 20% ~80%
Dimension
- Package dimensions: 138 x 138 x 149 mm
- Package weight: 0.622 kg
- Camera (folded): 60 x 60 x 75 mm
- Camera weight: 0.251 kg
Package Contents
- USB3.0 4K Camera
- USB3.1 type-C to type-A Cable (6ft)
- Quick-start guide
- Power adaptor
Optional Accessories
- Wall mount
- Remote control (compatible with CAM540)
Warranty**
- Camera: 3+2 year
- Accessories: 1 year
Compatible Applications
- ZOOM, Microsoft® Teams, Skype for Business, Skype™, Google Hangouts, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Adobe Connect, Cisco WebEx®, Fuze, GoToMeeting™, Microsoft® Lync™, Vidyo, vMix, WebRTC, Wirecast, XSplit
Free Applications for Meeting Collaboration (Free Apps support on Windows® and Mac® computers)
- PTZApp
- Compatible with Skype™ Plugin for answering and hanging up via remote control
- Upgrade firmware automatically or manually
- Control camera
- Set parameters and adjust camera image
- Diagnose operating status
- View live video
- EZLive
- Real-time streaming / annotating / snapshots / video recording
- *Suggested to have 2GB HDD storage for saving recorded video clips
