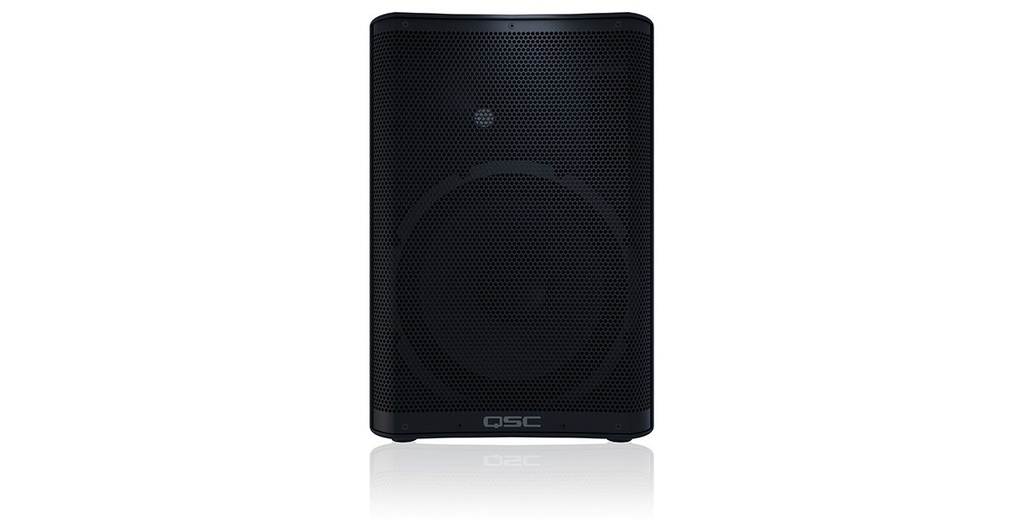

QSC CP12 12-inch Compact Powered Loudspeaker

High performance, superior quality and lasting reliability. These are the hallmarks of the QSC brand and the reason why millions of professionals the world-over have come to trust QSC to help them confidently deliver superior experiences and memorable performances. The CP Series follows in that same tradition while also offering an ultra-compact form factor and class-leading value.

Features

Compact and powerful performance
1000 Watt peak power Class-D amplifier module
Easily selected contours for commonly-used applications
Advanced DSP with Intrinsic Correction™ for superior sound quality and speaker protection
Directivity Matched Transition™ (DMT) for consistent frequency response across the entire coverage area
Light weight and highly portable
Professional appearance looks great in any application
Use for main PA, stage monitor, or instrument amplifier
35 mm pole socket
Optional yoke, tote, and outdoor cover accessories
Complete EASE and CAD information available online
6-Year Warranty*

Amplifier and DSP

The 1000 Watt (peak) power module delivers ample burst and continuous power for the loudspeaker’s matching transducers. Convection cooling provides heat dissipation, even in extreme climates, while contributing no additional background noise. Carefully tailored, subtle and sophisticated dynamics processing is used to protect the drivers from damage and the performance from distortion. The result is a highly accurate and musical sound that maintains full signal integrity, even when pushed to high SPL.
Compact and Light Weight

CP produces a big sound from a small package. Ultra-compact and remarkably light weight, CP is easy to load, carry, lift and deploy in a wide range of portable and installed applications.
Flexible Design

CP presents a compact, unobtrusive and stylish appearance that looks great in a wide range of applications. Both models can be utilized as either main PA (with included pole mount), floor monitor or installed via optional quick-connect yoke mount.
Presets

CP provides one-touch access to preset contours for the most commonly-used applications including Default (Full-Range), Default with External Subwoofer, Dance, Dance with External Subwoofer, Floor Monitor and Speech.

* 1 year warranty may be extended by an additional 5 years, with QSC Product Registration

Model
CP12

Configuration
Two-way active loudspeaker

LF Transducer:
305 mm (12 in), cone

HF Transducer:
35.6 mm (1.4 in) compression driver

Frequency Response (-6 dB)
49 – 20 kHz

Frequency Range (-10 dB)
47 – 20 kHz

Nominal Coverage Angle:
75° Axisymetric

Maximum Rated SPL1:
126 dB

Amplifier:
Class DPeak: 800 W (LF), 200 W (HF)

Controls:
Power2 × GainMic Boost Push Switch6-way Contour Selection Switch

Indicators:
Power LED2 × Input Signal LEDInput B MIC selected LEDLimiter active LED

Connectors:
2 × locking XLR/F ¼” combo (Line Input and Mic/Line input)1 × 3.5 mm TRS (Stereo Input)1 × XLR/M (Mix Output)1 × IEC power connector

AC Power Input:
Universal power supply 100 – 240 VAC, 50 – 60 Hz

AC Power Consumption (1/8th Power):
100 VAC, 0.75A – 240VAC 0.31A

Enclosure Material:
Polypropylene

Attachment Points:
M8 threaded insert

Color:
Black (RAL 9011)

Grille:
18 Gauge powder-coated steel

Speaker Dimensions (H×W×D):
516 × 350 × 323 mm20.3 × 13.8 × 12.7 in

Carton Dimensions (H×W×D):
430 × 430 × 604 mm17 × 17 × 23.8 in

Net Weight:
13.7 kg / 30.3 lb

Shipping Weight:
16.5 kg / 36.4 lb

Regulatory:
EMC, UL, CB

Optional Accessories:
CP12 Tote, CP12 Outdoor Cover, CP12 Yoke

1 Peak SPL is measured on-axis at 1 m, with dynamic pink noise*Preliminary specifications are subject to change.
