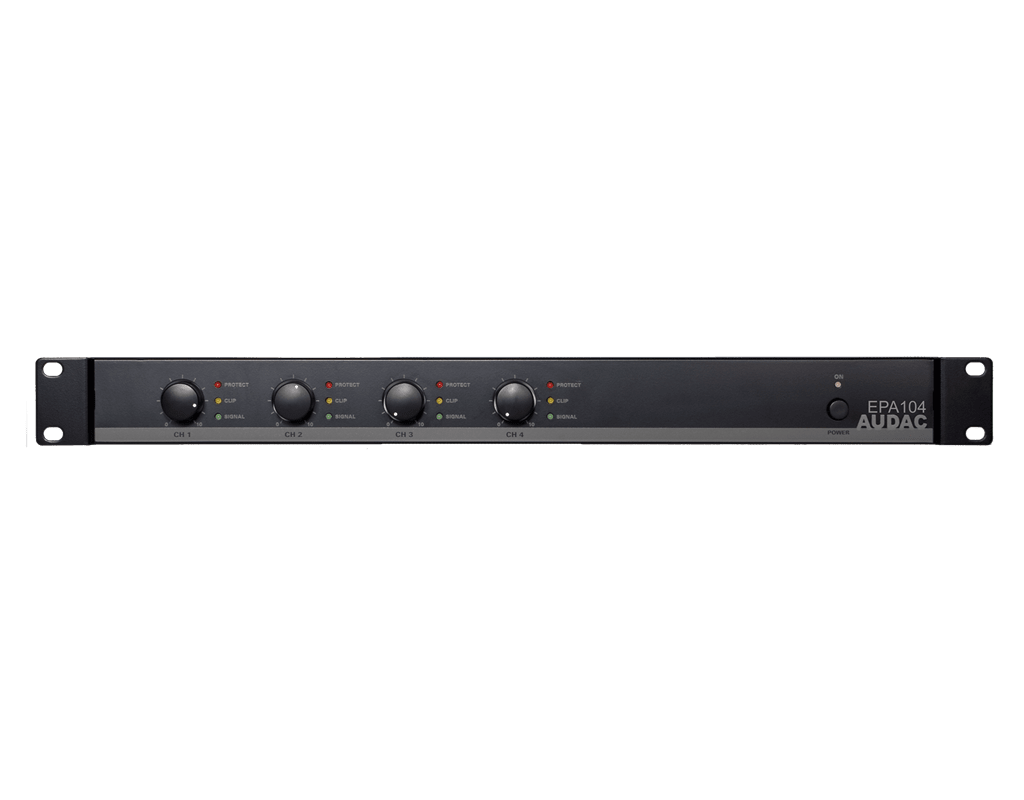

Quad Channel Amplifier 4 x 100w 1 U
Log In For Pricing Add to cart

Quad Channel Amplifier 4 x 100w 1 U

Log In For Pricing

Quad Channel Amplifier 4 x 100w 1 U

Brand:Audac

Free NZ shipping on all orders over $499 (Select at Checkout)

  • $9 Flat Rate Shipping (For Orders Under $499)
  • Order Before 12pm to get Dispatched Same Day (Hamilton Stock Only) Excludes Weekends and Holidays
    *If Only 1 item is Left in stock this may have been opened for display
    *Image is for illustrative purposes only. Please refer to product description.

This energy efficient stereo amplifier will automatically switch to a standby mode when no audio signals are detected (less than 1Watt power consumption in standby mode). Their weight and compact size makes these single rack space amplifiers ideal for both fixed and mobile installations. Their use of Class-D technology ensures excellent efficiency as well as outstanding sound quality. Thanks to the complete passively cooled entity only a minimal of maintenance is needed, while ensuring maximum reliability. The quad channel construction consists of four channels with the possibility to use two independent stereos. In combination with the integrated active crossover network, it offers a complete solution for compact stereo applications with a bass cabinet. Various specific functions and advanced circuitry guarantees an optimal protection against DC malfunctioning, short circuit, overheating and overload. Signal input connections are integrated with balanced XLR connectors. Outputs are connected using terminal block connectors.

SYSTEM SPECIFICATIONS
Signal / Noise > 90 dB
THD+N (@ 1 kHz) < 0.1% (1/2 Rated Power)
Crosstalk (@ 1 kHz) > 70 dB
Technology Class-D
Protection DC Short circuit
  Over heating
  Over load
  Signal limiting
Cooling Convection cooled
Operating temperature 0° ~ 40° @ 95% Humidity
Frequency Response (± 3 dB) 20 Hz – 20 kHz
Power Supply Switching mode
    100 ~ 240 V AC / 50 ~ 60 Hz
  Consumption 188 W
Inputs Sensitivity (1W/1m) 0 dB (1V RMS)
  Impedance 12 kΩ balanced
  Connector 3-pin XLR female
Outputs Connector 2-pin Euro Terminal Block (Pitch – 5.08 mm)
Power Consumption Standby 0.8 Watt (30 min standby time)
RMS Power @ 4 Ω Stereo 4 x 100 W
  @ 8 Ω Bridge 2 x 200 W
  @ 8 Ω Stereo 4 x 50 W
PRODUCT FEATURES
Dimensions 482 x 44 x 330 mm (W x H x D)
Weight 4.500 kg
Mounting 19”
Unit height 1 HE
Construction Steel
Colours Black

Brand

Audac
