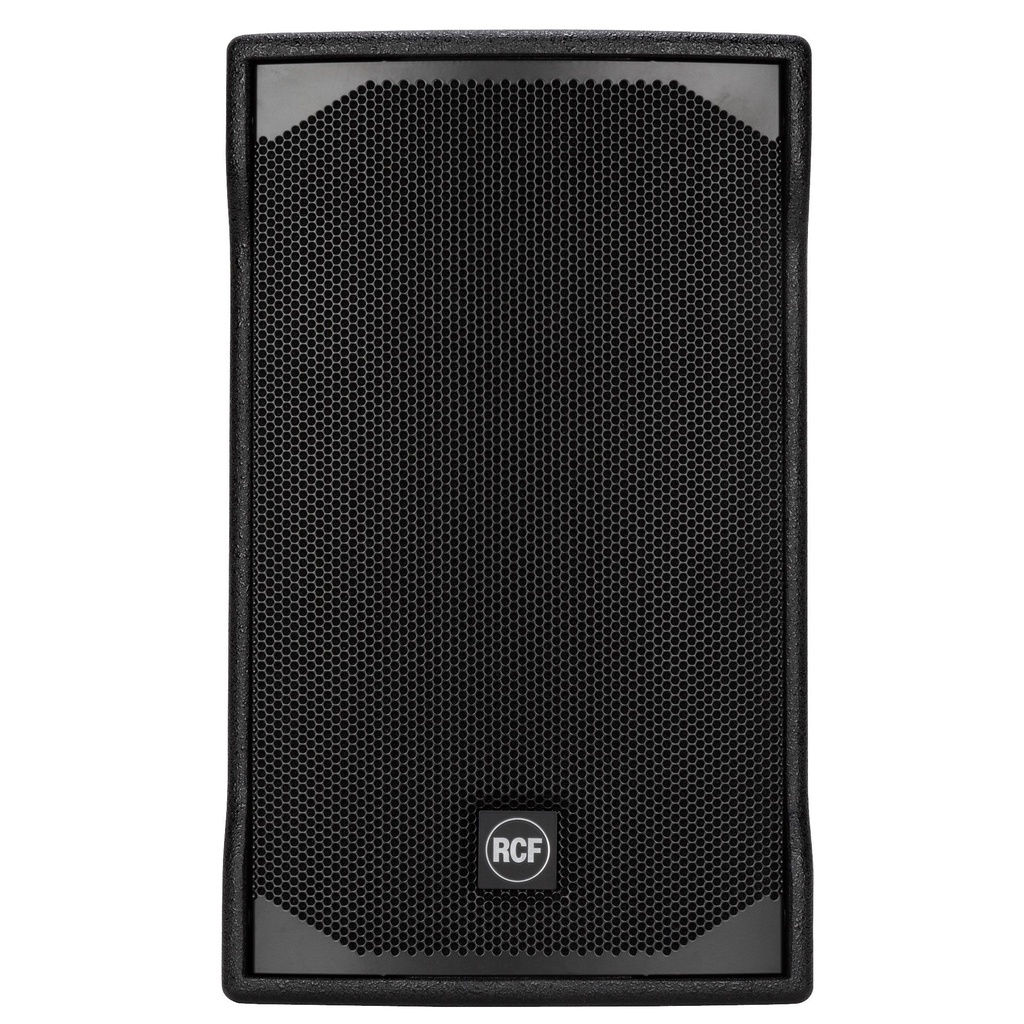

RCF E Max 3110 Full Range Passive Speaker

$999.00 Inc GST

RCF E Max 3110 Full Range Passive Speaker

Can Order From Suppler Delivery Times Vary as some shipments are Delayed - Contact For ETA

Add to Wishlist
Brand:RCF

Free NZ shipping on all orders over $499 (Select at Checkout)

  • $9 Flat Rate Shipping (For Orders Under $499)
  • Order Before 12pm to get Dispatched Same Day (Hamilton Stock Only) Excludes Weekends and Holidays
    *If Only 1 item is Left in stock this may have been opened for display
    *Image is for illustrative purposes only. Please refer to product description.

Questions? Ask Us here
  • 128 dB SPL Max
  • 300 W AES power rating
  • 60 – 20000 Hz Frequency Range
  • Plywood coated with black textured acrylic paint
  • 1” Compression Driver, 10” Woofer Hi Resolution Transducers
  • Perfectly Tuned Crossover
The full-range passive two-way RCF E-MAX series has been specifically designed as club systems for entertainment, to achieve the best nearfield quality, vocal coherence and a stable tonal balance even at high volume. The heavy-duty speaker cabinet is made of plywood coated with black textured acrylic paint. Featuring a 10” woofer with a 2.5” voice and a 1.0” compression driver with 1.4” voice coil. The LICC crossover design includes an electronic protection on high-frequency device. The rotatable 90°x70° horn and the available mounting accessories allow installation of the loudspeaker either vertically or horizontally in any environment and architectural constraint.

PART NUMBER:

  • 13000577
    E MAX 3110
    EAN 8024530016128

DESIGNED TO PERFORM

The RCF E Max series and its components are designed inside RCF’s laboratories and feature superior transducers. Equipped with a 10” woofer and 1” compression driver on a rotatable horn with 90° x 70° dispersion pattern, E MAX 3110 delivers a maximum SPL of 128dB over a frequency range of 60 Hz – 20 kHz, with a total handling power of 300 W RMS.

PERFECTLY TUNED CROSSOVER

The E MAX Series features a custom designed mid-freq shaping for close distance listening on a perfectly tuned crossover to ensure the best frequency and phase response. The LICC crossover design includes electronic protection on high-frequency device.

CABINET & MECHANICS

All E Max Series cabinets are built in heavy-duty birch plywood coated with black textured epoxy. A sturdy black metal grille protects the front, and an acoustically transparent sound foam backing on the inside of the grille ensures protection from dust and humidity. The base of each speaker includes a robust steel pole socket for mounting on a stand or a subwoofer pole. Included are rigging points to fly the speakers for maximum architectural freedom on any installation. Threaded inserts are provided for optional mounting hardware in Installed Sound Applications.

SPECIFICATIONS
Acoustical specifications



FREQUENCY RESPONSE (-10DB):
60 Hz ÷ 20000 Hz



MAX SPL @ 1M:
128 dB



HORIZONTAL COVERAGE ANGLE:
90°



VERTICAL COVERAGE ANGLE:
70°



DIRECTIVITY INDEX Q:
11



SYSTEM SENSITIVITY:
98 dB
Power section



NOMINAL IMPEDANCE (OHM):
8 ohm



POWER HANDLING:
300 W RMS



PEAK POWER HANDLING:
1200 W PEAK



RECOMMENDED AMPLIFIER:
600 W



PROTECTIONS:
ACTIVE MOSFET



CROSSOVER FREQUENCIES:
1800 Hz
Transducers



COMPRESSION DRIVER:
1 x 1.0” neo, 1.5” v.c



NOMINAL IMPEDANCE (OHM):
8 ohm



INPUT POWER RATING:
50 W AES, 100 W PEAK



SENSITIVITY (DB, 1W @ 1M):
106 dB, 1W @ 1m



WOOFER:
10”, 2.5” v.c



NOMINAL IMPEDANCE (OHM):
8 ohm



INPUT POWER RATING:
300 W AES, 600 W PEAK



SENSITIVITY (DB, 1W @ 1M):
98 dB, 1W @ 1m
Input/Output section



INPUT CONNECTORS:
Speakon® NL4



OUTPUT CONNECTORS:
Speakon® NL4
Standard compliance



CE MARKING:
Yes
Physical specifications



COLOR:
Black



HARDWARE:
17 x M10 2 x M8



HANDLES:
1 Top



POLE MOUNT/CAP:
Yes



GRILLE:
Steel



CABINET/CASE MATERIAL:
Plywood
Size



WIDTH:
305 mm / 12.01 inches



DEPTH:
338 mm / 13.31 inches



HEIGHT:
500 mm / 19.69 inches



WEIGHT:
16.16 kg / 35.63 lbs
Shipping informations



PACKAGE WEIGHT:
16.7 kg / 36.82 lbs



PACKAGE DEPTH:
374 mm / 14.72 inches



PACKAGE WIDTH:
409 mm / 16.1 inches



PACKAGE HEIGHT:
565 mm / 22.24 inches
