Elevate Your Sound
The RCF EVOX J9 is a premium three-way active column PA system designed to deliver maximum clarity, power, and portability in a sleek, road-ready format. Producing up to 130 dB Max SPL from a powerful 2100W Class-D amplifier, the J9 delivers professional-grade performance for DJs, live bands, churches, schools, and corporate events.
Built with RCF’s tour-proven engineering and advanced DSP technologies, the EVOX J9 combines elegant design with serious output capability — ideal when you need powerful sound in a compact footprint.
⭐ Key Features
✔ 130 dB Max SPL✔ 2100W Peak Class-D Amplifier✔ True 3-Way Design✔ 1.75” Neo Compression Driver✔ 6 × 3” Full-Range Neodymium Drivers✔ 12” High-Power Woofer✔ 120° × 40° True Resistive Waveguide✔ FiRPHASE & Bass Motion Control® DSP✔ Lightweight Composite Cabinet✔ Padded Column Carry Bag Included
🔊 True 3-Way Acoustic Performance
The EVOX J9 delivers exceptional detail and coverage thanks to its advanced three-way configuration:
1.75” Neodymium Compression Driver with Kapton dome
True Resistive Waveguide (TRW) for smooth, consistent 120° × 40° coverage

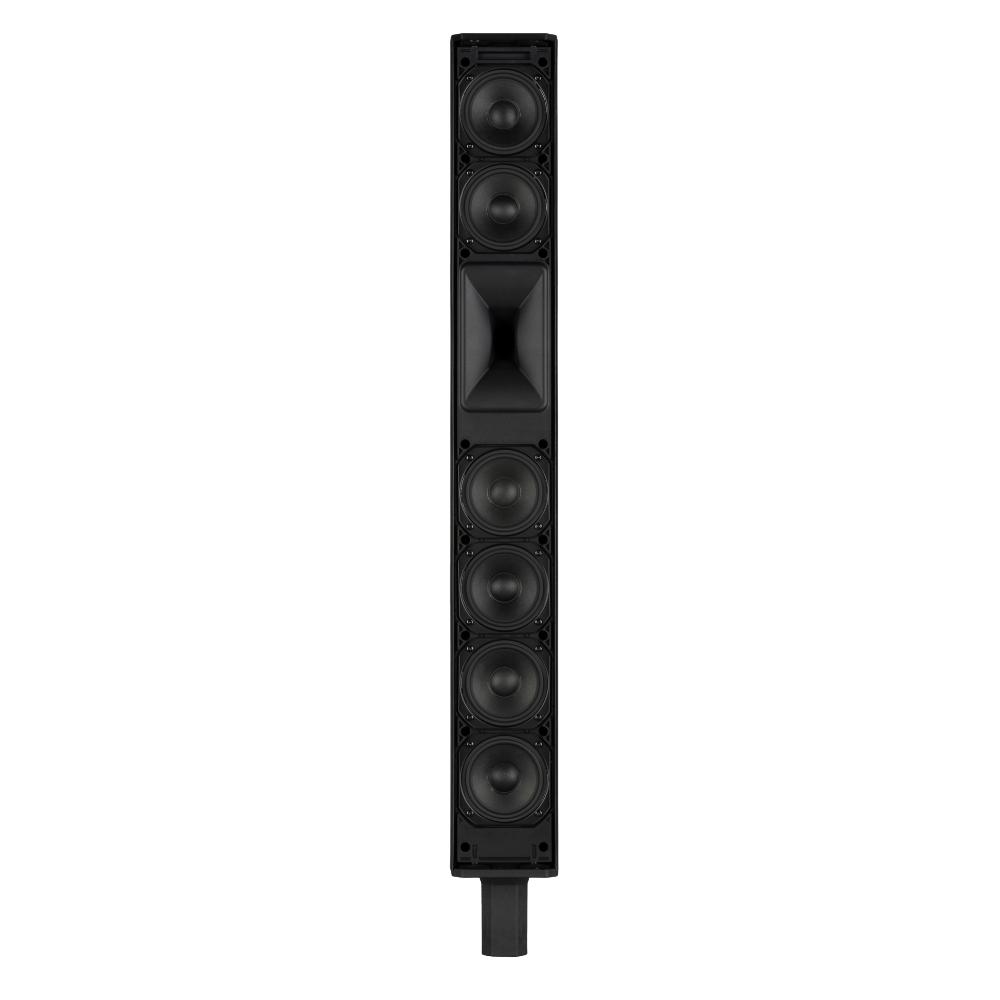

Six 3” full-range neodymium transducers for articulate mids
12” high-power bass-reflex woofer for deep, controlled low frequencies
The column array design provides wide horizontal coverage and controlled vertical dispersion, reducing reflections while maintaining vocal clarity and musical precision.
⚡ 2100W Class-D Power – Fast & Reliable
Powered by a 2100W onboard Class-D amplifier, the EVOX J9 delivers powerful output with excellent transient response and high efficiency.
700W HF / 1400W LF
130 dB Max SPL
Fanless convection cooling

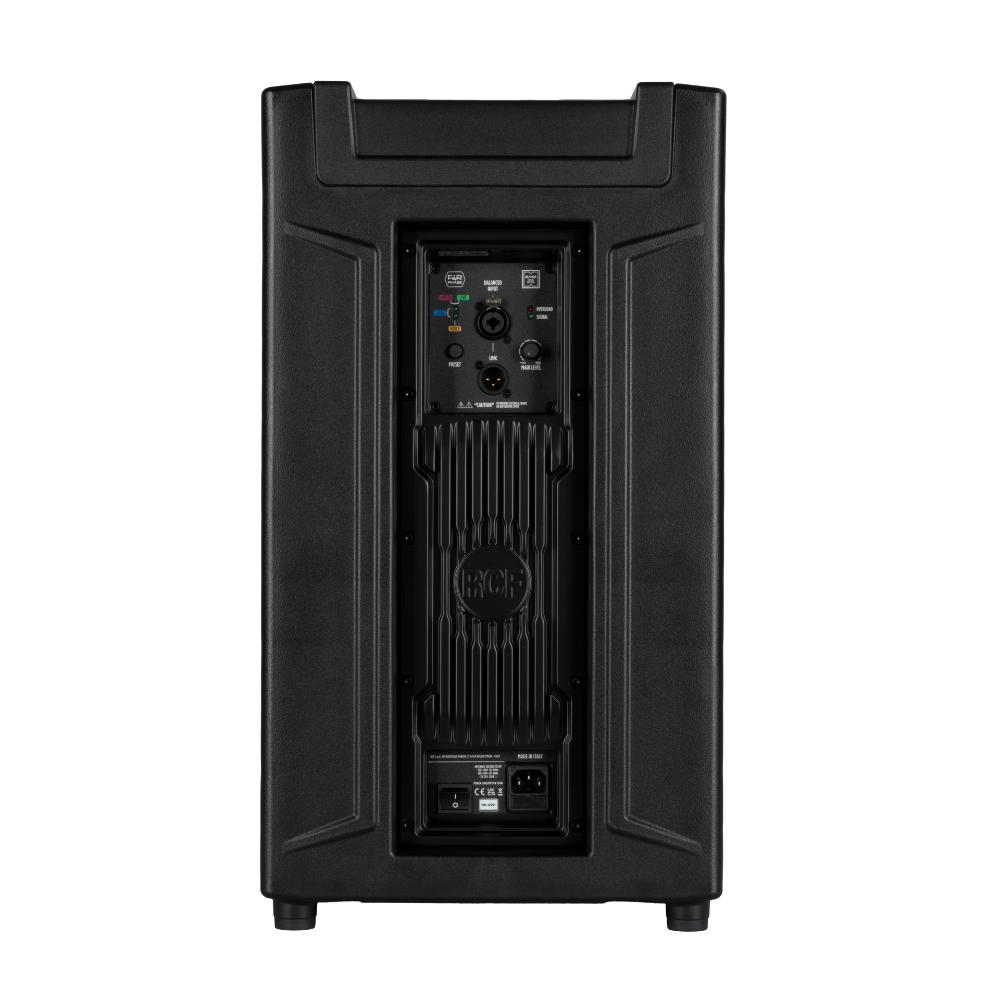

Solid aluminium rear heat exchanger
Advanced safety limiter
EN 62368-1 compliant
Three onboard EQ presets allow quick system tuning:
Live / Linear – Flat, natural response
Club – Enhanced low and high frequency impact
Voice – Optimised speech intelligibility
🎛 Advanced DSP Processing
The EVOX J9 incorporates RCF’s proprietary digital signal processing technologies:
FiRPHASE
Optimises phase response for transparent sound, precise imaging, and natural transients across the listening area.
Bass Motion Control®
Extends low-frequency performance while protecting the woofer from over-excursion — delivering deeper bass without sacrificing clarity or reliability.
🎯 Designed for Real-World Use
Quick-fit aluminium pole with integrated connections
Variable height configuration (zero offset or raised)
Sleek composite cabinet
Steel grille for durability
Lightweight and easy to transport
Padded column carry bag included
Available in Black or White (RAL 9003) finishes.
🎵 Ideal Applications
• Mobile DJs• Wedding & Event Performers• Live Bands• Churches• Corporate Presentations• Schools & Assemblies
📊 Key Specifications
Frequency Response: 40 Hz – 20 kHz
Coverage: 120° x 40°
Total Power: 2100W Peak
Max SPL: 130 dB
Height: 2080 mm
Weight: 28.3 kg
Why Choose the EVOX J9?
The EVOX J9 delivers premium Italian engineering, powerful output, and refined sound quality in a fast-deploy column system. Whether you’re performing live, DJing an event, or installing a compact PA solution, the J9 offers professional clarity, deep low-end impact, and effortless setup in one elegant system.
