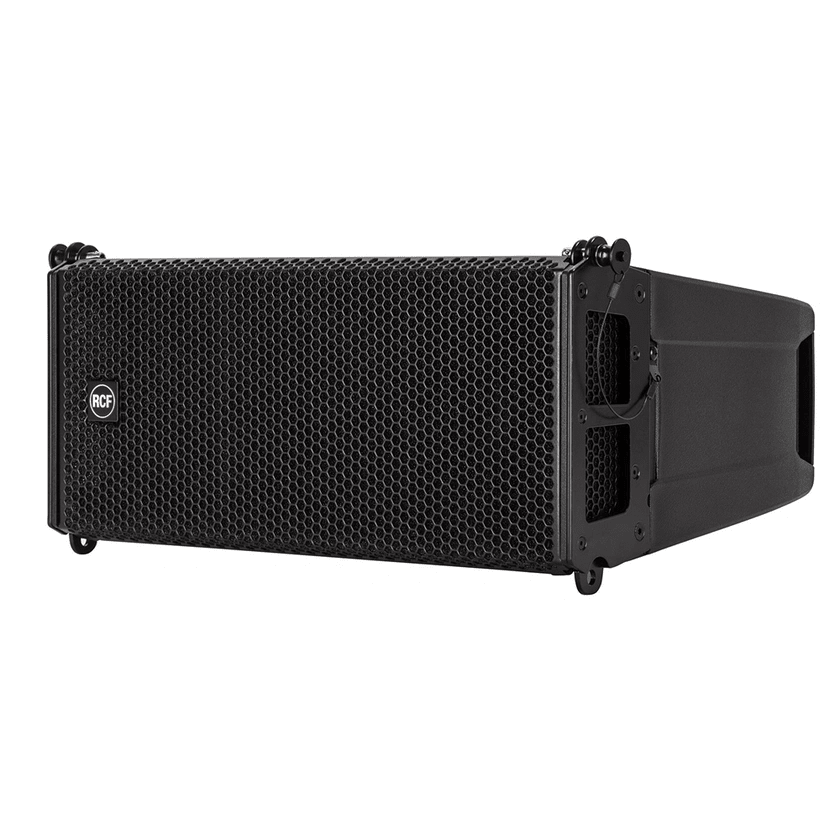

RCF HDL6-A Active Line Array Module

Overview
With a 400 W 2-channel class-D amplifier powering the system

Description
The HDL6-A is the ideal choice when line array performance is needed and a fast and easy set-up a must. A 1400 W 2-channel class-D amplifier powers the system. A powerful DSP processes the sound including crossover, phase correction, limiting and protection. The system features state-of-the-art RCF transducers – two powerful 6.0” woofers for a solid bass reproduction plus a high powered 1.7” voice coil compression driver mounted on a precise 100° x 10° waveguide delivers vocal clarity with high definition and an incredible dynamic.
Features

1400 W, two-way amplification
131 dB max SPL
7″ voice coil neodymium compression driver
2 x high power neodymium 6.0″woofers
48 kHz, 32 bit floating point DSP processing
Symmetrical design
Extremely low weight
FiRPHASE processing

Specifications

Acoustical Specifications


Frequency Response -3 dB
65 Hz ÷ 20000 Hz

Max SPL
131 dB

Horizontal coverage angle
100°

Vertical coverage angle
10°

Compression Driver
1.0″ neo, 1.7″ v.c.

Woofer
2 x 6″ neo, 2.0″ v.c.

Input/Output Section


Input connectors
XLR male

Output connectors
XLR female

Input sensitivity
+4 dBu

Processor Section


Crossover frequencies
900 Hz

Protections
Thermal, RMS

Limiter
soft limiter

Controls
HF correction

Amplifier Specifications


Total power
1400 W PEAK

High frequencies
400 W PEAK

Low frequencies
1000 W PEAK

Total power
700 W RMS

High frequencies
200 W RMS

Low frequencies
500 W RMS

Cooling
convection

Connections
Powercon in-out

Cabinet


Cabinet Material
Composite PP

Hardware
array fittings

Handles
2 back

Colour
black

Physical Specifications


Height
237/9.3 mm/inch

Width
470/18.50 mm/inch

Depth
377/15.0 mm/inch

Net Weight
11.5/25.35 kg/lbs
