RCF X-MAX 12 – 12″ High-Power 2-Way Passive Speaker

The RCF X-MAX 12 is a full-range, high-power two-way passive loudspeaker designed as a club system for entertainment venues, delivering exceptional nearfield quality, vocal coherence and stable tonal balance even at very high volumes. Built around a 12″ woofer with a 2.5″ voice coil and a 1.0″ compression driver with a 1.4″ voice coil, it handles 800W program power and reaches a maximum SPL of 129 dB.

Frequency response covers 60 Hz – 20 kHz. The advanced LICC crossover design includes electronic protection on the high-frequency device for long-term reliability. The 90° x 70° constant-directivity rotatable horn allows installation either vertically or horizontally.

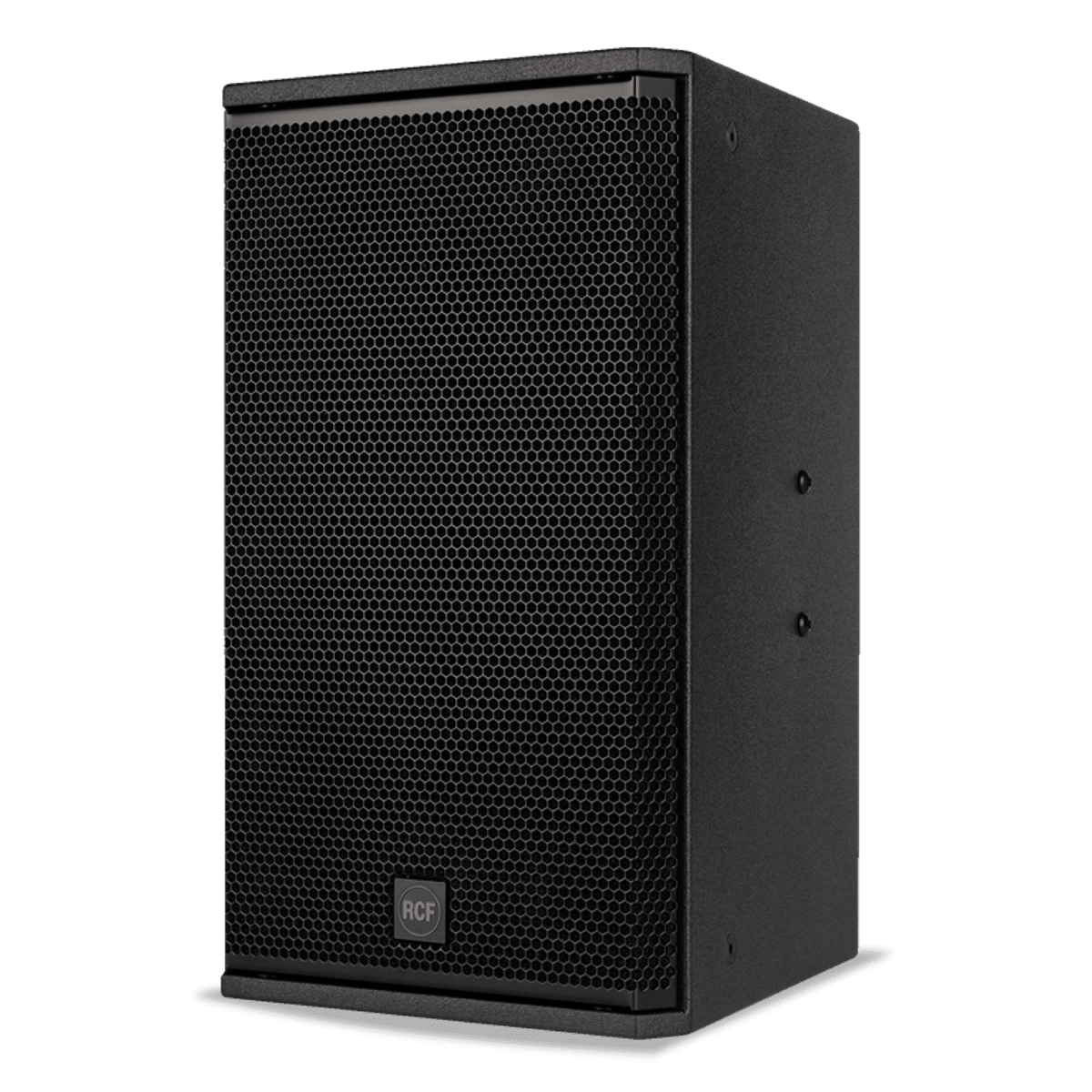

Construction is plywood coated with black textured acrylic paint, fitted with a powder-coated metal grille and acoustically transparent foam backing. A robust steel pole socket suits stand or sub-pole mounting, and threaded inserts on all sides accept rigging hardware for permanent flown systems. Ideal for clubs, mobile DJs, live entertainment and small-to-medium venues.
