Features
Main Features

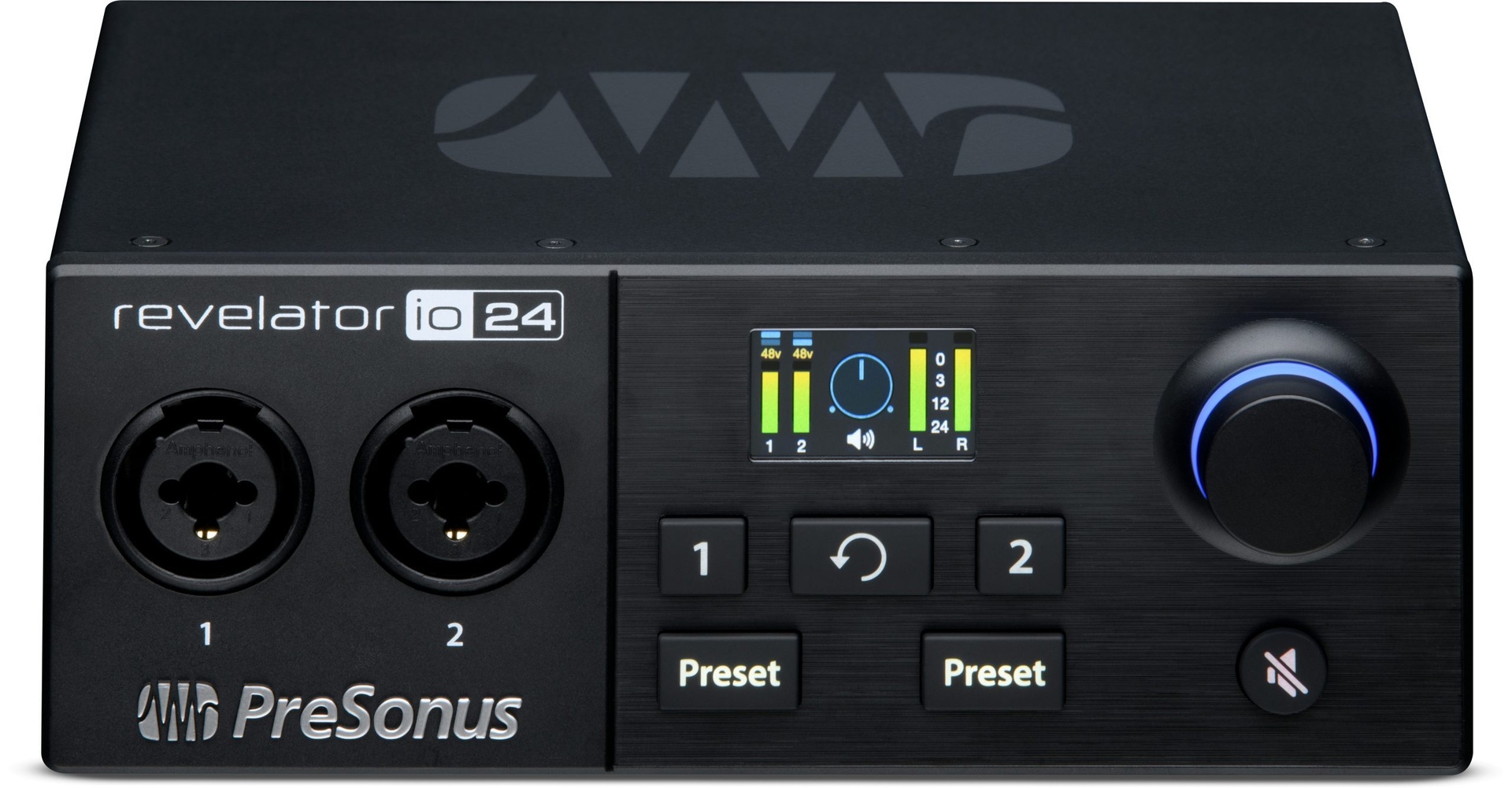

Professional bus-powered USB-C® compatible audio interface for podcasting, streaming, vlogging, recording, and more
Stand-alone functionality lets you take your sound with you
Onboard loopback mixer with two independent streams to record Skype calls, add sound effects, backing tracks, and more.
A dedicated stream mix lets you create a complete stereo mix with Revelator io24 inputs, effects, two channels of loopback audio, and reverb and send it to your streaming software.
96 kHz / 24-bit operation for pristine audio recording
Inputs and Outputs
2 digitally controlled, high-headroom, low noise XMAX-L mic preamps for professional results
Built-in Fat Channel with EQ, Compression, Gate, and Limiter plus Voice Effects and Reverb with 8 easy-to-use factory presets and 6 user presets
Access up to 2 presets from Revelator io24 for each input via the front-panel button, additional presets are available in Universal Control
Custom presets for vocals, broadcast, guitar, and more
Share presets with your team
Balanced Main Left / Right with independent level control and mute
Headphone Output with independent volume control and zero-latency monitoring
Digital
6-in/8-out audio interface
2 dedicated input streams for the Revelator™ io24 hardware inputs
2 dedicated stereo output streams for monitoring let you route separate mixes to your headphones and your main outputs
Two stereo I/O virtual streams for application-to-application recording and playback with loopback options for macOS and Windows
5-pin MIDI Input and Output
macOS, Windows, iOS, and Android compatible
Integrated Software
Universal Control software mixer, effects editing and hardware control
Studio One Artist included
Studio Magic software bundle included
Technical Specifications
Microphone Preamps
Type
XLR female, balanced
Frequency Response (+0.1dB/-0.3 dB, unity gain, unwtd)
20 Hz – 20 kHz
Input Impedance (Balanced)
1.4kΩ
THD+N (1 kHz, -1 dBFS, min gain)
0.009% (1 kHz, -1 dBFS, min gain)
EIN (A-wtd, 150Ω, max gain)
-126 dBu
Gain Control Range (± 1 dB)
60 dB
Max Input Level (±0.5 dBu, min gain)
+10 dBu
Phantom Power (10 mA total)
+48 VDC
Instrument Inputs
Type
¼” TS female, unbalanced
Frequency Response (+0.1dB/-0.3 dB, unity gain, unwtd)
20 Hz – 20 kHz
Input Impedance
1MΩ
Gain Range
50 dB
Maximum Level
+10 dBu (min. gain)
Main Outputs
Type
¼” TRS female
Maximum Level (1 kHz, unity gain, z-balanced)
+10 dBu
Frequency Response (+0.1dB/-0.3 dB, unity gain, unwtd)
20 Hz – 20kHz
THD+N (1 kHz, -1 dBFS, unity gain)
0.003%
Headphone Outputs
Maximum Power
40 mW / channel @56Ω
Frequency Response (+0.1dB/-0.5 dB, unity gain, unwtd)
20 Hz – 20 kHz
THD+N (1 kHz, 0 dBFS, loaded)
0.01%
Impedance Working Range
32Ω to 300Ω
Audio Interface
Type
USB-C® Compatible USB 2.0
Sample Rates
44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Bit Depth
24 bit
ADC Converter Range
105 dB
DAC Converter Range
105 dB
Controls
Hardware
Direct Monitor Balance, Main Output Level, Headphone Level, Mic Level, Mute, Preset Select, Return
Software
Mic Gain, Stereo Link, Loopback Mixes, Monitor Mix, Preset Management, Stream Mix Mode
Onboard DSP Options
PreSonus StudioLive Fat Channel Processing
High Pass Filter, Noise Gate / Expander, 3 Compressor models, 3 EQ models, and Limiter
Digital Loopback Mixer
8 input digital mixer, 3 stereo loopback mixes, stereo monitor mix
Voice Effects
Doubler, Vocoder, Ring Modulator, Comb Filter, Detuner, Delay, Reverb
Physical
Height
2.5” (63.5 mm)
Depth
6.25″ (158.75 mm)
Width
6.25” (158.75mm)
Weight
2 lbs (0.91 kg)
