Product Overview

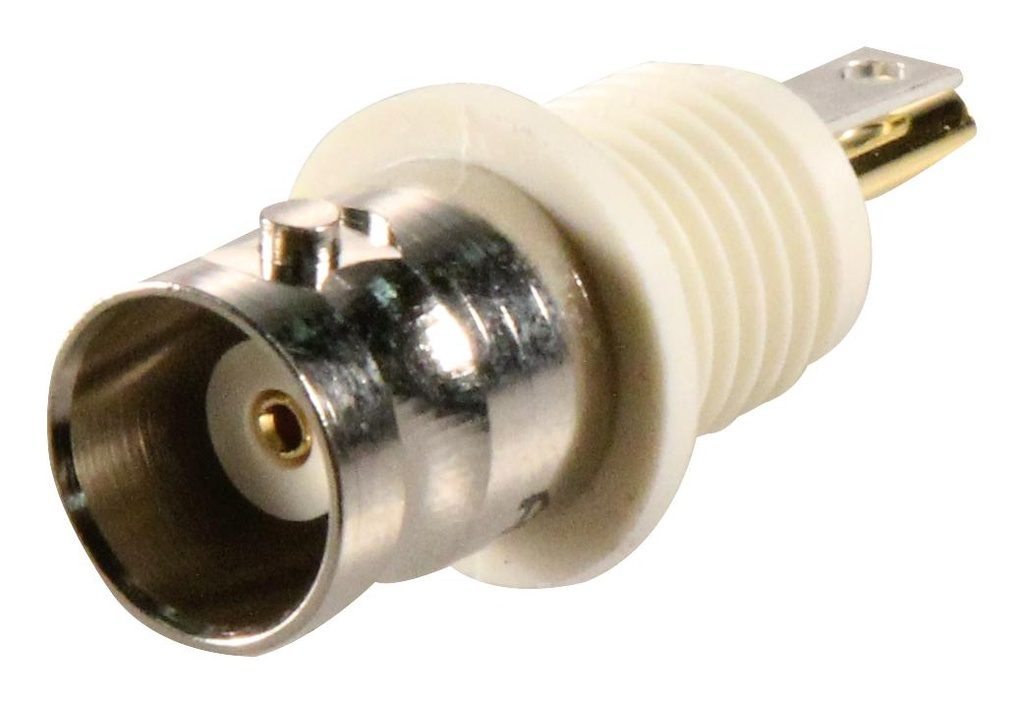

The 031-10-RFXG1 is an isolated RF Connector, BNC series, BNC straight Jack with gold-plated phosphor bronze contacts and solder contact termination. Body made up of brass with nickel-plated finish and nylon insulator. The BNC is a bayonet style connector allowing for quick connect and disconnect with a positive locking mechanism. Mating is achieved with just a quarter turn of the coupling nut. The 50ohm BNC connector is miniature and lightweight units. Designed to accommodate a large variety of RG and industry standard cables.
Standard polarity
5000MR Minimum insulation resistance
500 Mating cycles
Bulkhead-front mount
-85 to 165°C M201Temperature range
Applications
RF Communications, Communications & Networking, Automotive, Computers & Computer Peripherals, Medical, Sensing & Instrumentation
Product Information
Connector Type:
BNC Coaxial
Connector Body Style:
Straight Bulkhead Jack
Coaxial Termination:
Solder
Impedance:
50ohm
Coaxial Cable Types:
RG58, RG59, RG179, RG316
Contact Material:
Phosphor Bronze
Contact Plating:
Gold Plated Contacts
Frequency Max:
4GHz
Connector Mounting:
Panel Mount
Product Range:
–
