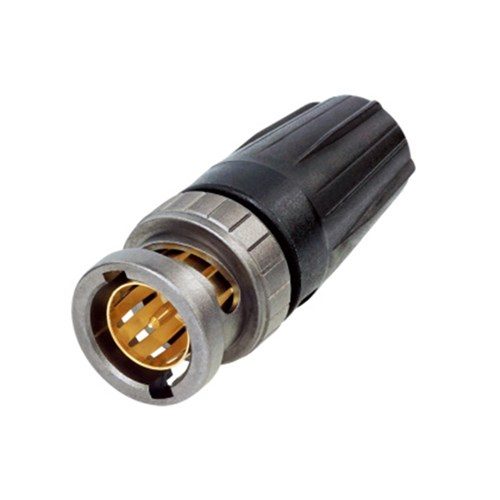

rearTWIST UHD BNC Cable Connector

NBNC75BFG7X
The rearTWIST UHD BNC connectors are specifically designed for high resolution video signal transmissions. Due to the unique insulator and contact pin design, the connectors feature low return loss values for 4K and 8K signals.
FEATURES & BENEFITS

Optimized contact pin and insulator design for UHD-data transmissions
Proven rearTWIST technology
Swiss antraloy plating
Fully compatible with conventional BNC chassis connectors
Improved return loss values at high frequencies


Optimized Return Loss
Due to optimized insulator design and reduced crimp diameter from center pin the Neutrik rearTWIST UHD BNC connector achieves increased headroom compared to conventional BNC connectors and offers additional return loss reserve for potential impedance deviations resulting from cable bending, incorrect connector assembly or faulty connection interfaces without signal interruption.
Crimp Dimensions
In order to achieve optimum return loss values at high frequencies the crimp dimension of the contact pin has been reduced.

Pin: 1.07 mm
Shield: 5.00 mm
Crimp die: DIE-R-BNCX-PDG


Approved Cables
To guarantee high performance for each cable-connector combination at high frequencies Neutrik measured common COAX cables which are specifically designed for ultra high definition transmission (UHD). Find all approved cables listed below.
Suitable cables:Bryant BD SD01, CAE HD0628LSZH, Canford SDV, Cordial CVI 06-28, Cordial CVI 06-28HD, Cordial CVI 06-28HD-FRNC, Cordial CVI 3-7, Draka 0.6/2.8 AF, Draka 0.6 L/2.8 AF, Extron BNC-5RC, Fuzion SD-1, Klotz V06/28, Klotz VMXx75Y, Kabeltronik HFV 0.6/2.8 AF- FRNC, Kabeltronik MVP 5x 0.6/2.8 AF-FRNC, Nexans HF 75 0,6/2,9 02YS(ST)CH, Percon VK5, Sommer 600-0101M, Sommer 600-0104M, Tesca Supra
UHD optimized cables:Argosy Image 360, Belden 1855ENH, Belden 1855ECH, Belden 1855DNH, Belden 70080, Belden 70080NH, Belden 70080CH, Canford SDV-X-LFH, Draka HD Pro 0.6/2.8 AF, Klotz V062SH

SPECIFICATIONS
Product
Title

NBNC75BFG7X

Connection Type

BNC 75 Ω

Gender

male

Electrical
Contact resistance

≤ 3 mΩ (inner)

Contact resistance

≤ 2 mΩ (outer)

Dielectric strength

1.5 kVdc

Impedance

75 Ω

Insulation resistance

> 5 GΩ

Rated voltage

30 dB up to 6 GHz
≤1.13 / >24 dB up to 12 GHz
≤1.22 / >20 dB up to 18 Ghz

Mechanical
Cable O.D.

4.7 mm
Cable retention> 30 N (center)

Crimp size

5.0 Hex crimp (shield)

Crimp size (pin)

1.07 crimp

Insertion force

1000 mating cycles

Locking device

Bayonett

Cable anchoring

Jacket crimping

Material
Contacts

Brass (CuZn35Pb2), 0.2 µm AuCo (center contact)

Shell

Brass (CuZn39Pb3)

Shell plating

Antraloy

Insert

PP

Environmental
Temperature range

-30 °C to +85 °C

Contact crimpability

Complies with IEC 60803 and IEC 60352-2
