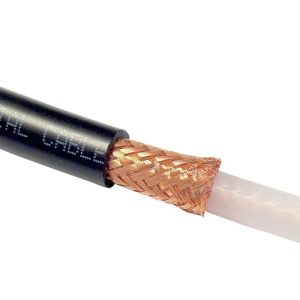

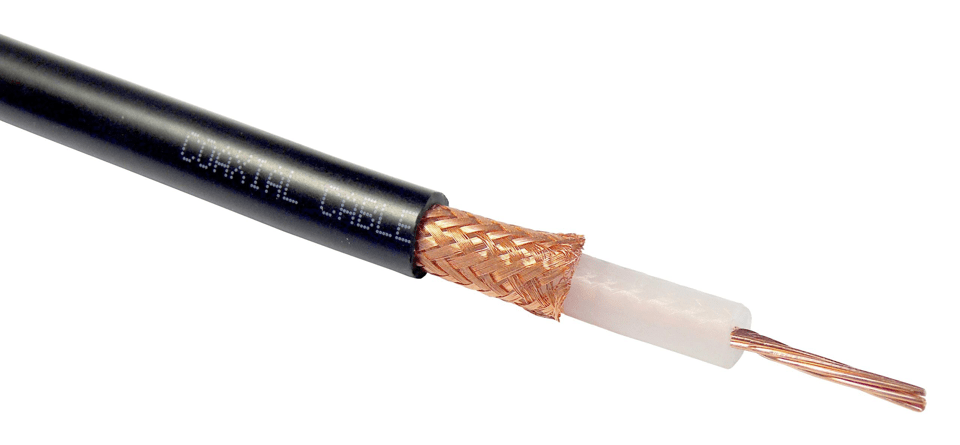

RG213 50 Ohm Coax Low Loss 1m

RG213 50 Ohm Coax Low Loss Per Meter

10.3mm

Electrical Characteristics Impedance : 50Ω ±2Ω Capacitance : 101pF/m Velocity of Propagation : 66% Max. Operating Frequency : 1GHz Max. Operating Voltage : 3700 rms Corona Extinction Voltage : 5000Vrms Voltage Withstand : 10000Vrms Spark Test : 5000Vrms Operating Temp. Range : -40°C to +85°C Attenuation (@20°C) Frequency (MHz) Attenuation (dB/100ft) Attenuation (dB/100m) 10 0.6 1.8 50 1.3 4.3 100 1.9 6.2 200 2.9 9.5 400 4.2 13.8 600 5.5 18.2 860 6.8 22.3 1000 7.5 24.5

 Construction Item Material Diameter (Inch) (mm) Inner Conductor Stranded Bare Copper 7/0.029 ±0.001 7/0.75 ±0.03 Dielectric Solid PE 0.285 ±0.007 7.25 ±0.18 Shield 90% Bare Copper Braid 0.321 ±0.007 8.15 ±0.18 Jacket PVC-black 0.406 ±0.007 10.3 ±0.18
