RG59 Coaxial Cable – 75Ω – Black PVC – 6.15mm OD

$250.00 Inc GST

Professional RG59 75Ω coaxial cable with copper-clad steel conductor, 80% copper braid shield and black PVC jacket. Suitable for CCTV, SDI video and RF applications. Sold per metre or 100m reel.

1 In Stock

Contact AV Store for availability.

Add to Wishlist

Free NZ shipping on all orders over $199 (Select at Checkout)

  • $9 Flat Rate Shipping (For Orders Under $199)
  • Order Before 12pm to get Dispatched Same Day (Hamilton Stock Only) Excludes Weekends and Holidays
    *If Only 1 item is Left in stock this may have been opened for display
    *Image is for illustrative purposes only. Please refer to product description.

This RG59 Coaxial Cable (75 Ohm) is a high-quality, industry-standard cable designed for video, RF, and broadcast applications.

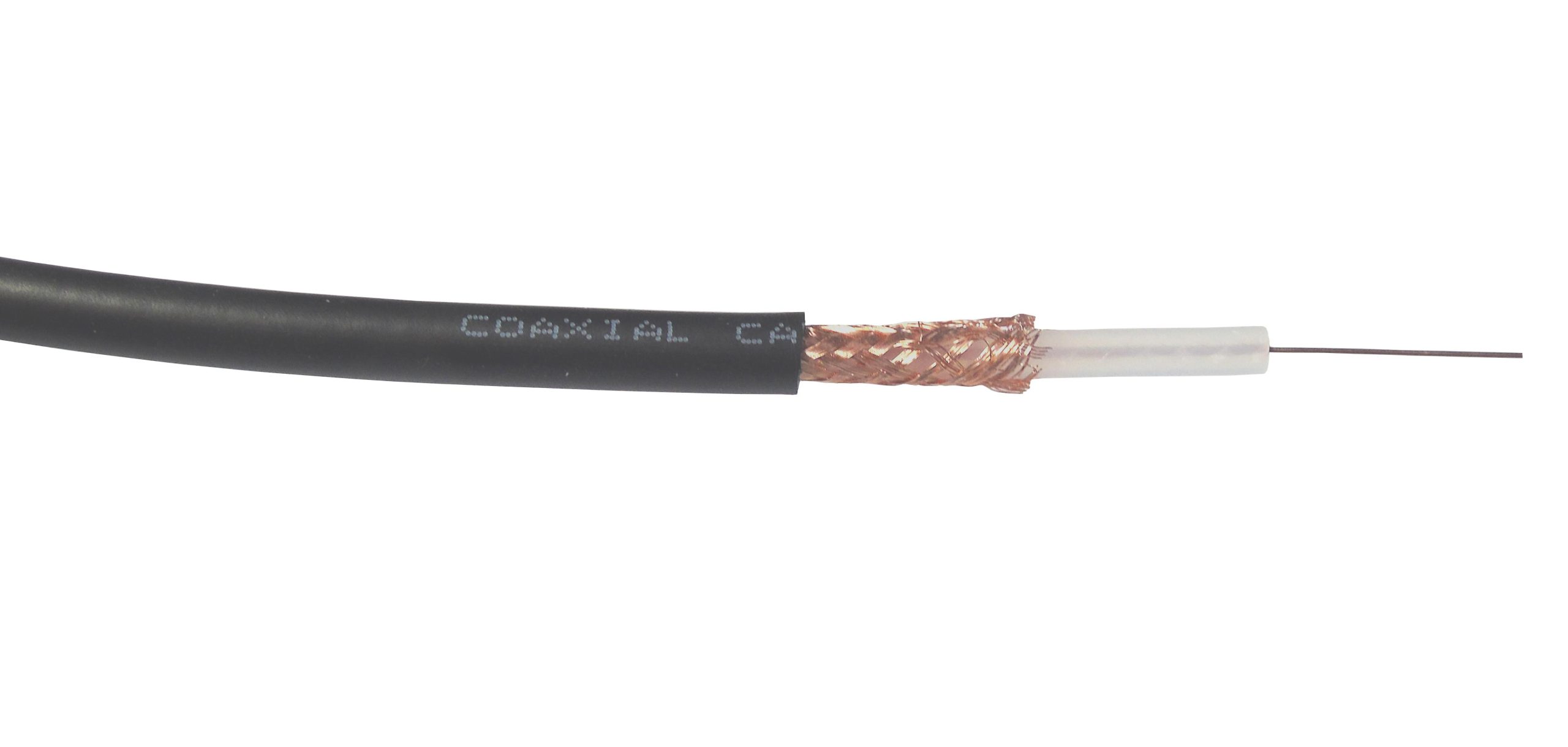

Constructed with a solid copper-clad steel (CCS) inner conductor, solid PE dielectric, and 80% copper braid shielding, this cable provides stable signal transmission with effective interference protection.

With a 6.15mm external diameter and durable black PVC jacket, it is ideal for fixed installations, CCTV systems, RF distribution, and SDI video runs up to 1GHz.

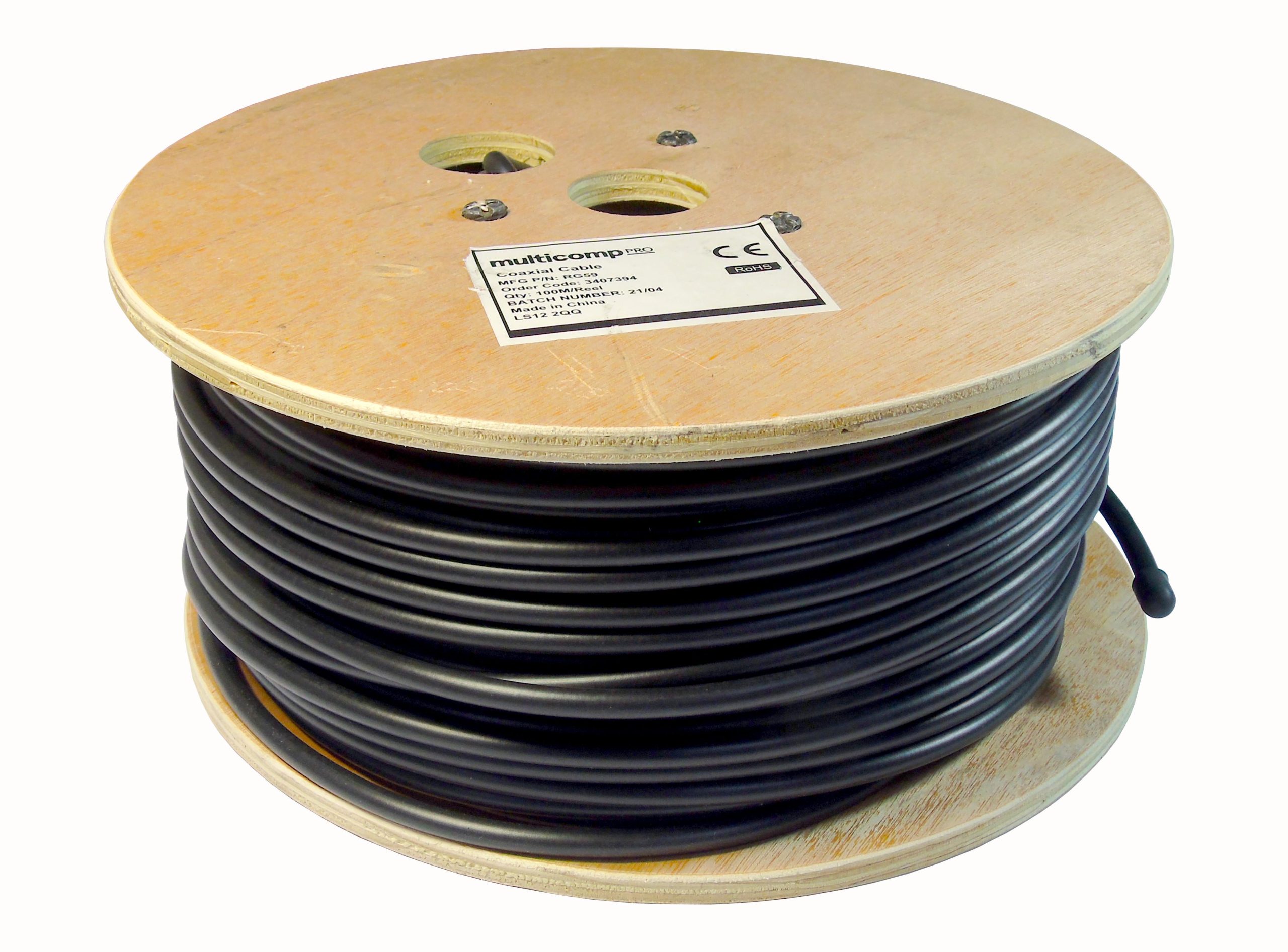

Available per metre or as a 100m (328ft) reel, making it suitable for both small jobs and full installations.

🔧 Construction Details

Component Specification
Inner Conductor Copper Covered Steel (CCS)
Conductor Diameter 0.58mm (0.023″) ±0.03mm
Dielectric Solid PE
Shield 80% Copper Braid
Outer Jacket PVC – Black
Overall Diameter 6.15mm ±0.1mm
Cable Type RG59 (75Ω)

⚡ Electrical Characteristics

  • Impedance: 75Ω ±3Ω

  • Capacitance: 67pF/m

  • Velocity of Propagation: 66%

  • Max Operating Frequency: 1GHz

  • Max Operating Voltage: 1700 Vrms

  • Operating Temperature: -40°C to +85°C

  • Corona Extinction Voltage: 2300 Vrms

  • Voltage Withstand: 7000 Vrms

  • Spark Test: 5000 Vrms

📊 Typical Attenuation (@20°C)

Frequency (MHz) Attenuation (dB/100m)
10 MHz 1.1 dB
50 MHz 2.6 dB
100 MHz 3.4 dB
200 MHz 5.2 dB
400 MHz 7.2 dB
600 MHz 9.2 dB
860 MHz 11.1 dB
1000 MHz 12 dB

🎯 Ideal Applications

  • CCTV camera installations

  • Composite video systems

  • SD-SDI video runs

  • RF signal distribution

  • Satellite & TV systems

  • Security and surveillance projects

📦 Specifications Summary

  • Cable Type: RG59

  • Impedance: 75Ω

  • Conductor: Solid Copper-Clad Steel

  • Shielding: 80% Copper Braid

  • Jacket: Black PVC

  • External Diameter: 6.15mm

  • Reel Length: 100m (328ft)

  • SVHC: No SVHC (25-Jun-2025)

Reliable and cost-effective, this RG59 coaxial cable is ideal for professional video and RF installations where 75Ω performance and durability are required.
