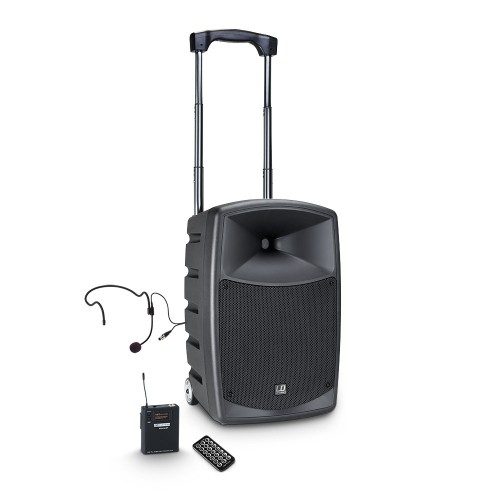

The LD Systems Roadbuddy 10 is an elegant solution for voice and music transmission on the go. The 2-way speaker with a 10″ custom woofer and a 1″ compression driver is operated with a rechargeable battery for up to 8 hours and is powered by a class D power amplifier with a highly efficient switching power supply and 480 watts of peak power.
The Roadbuddy relies fully on wireless transmission: it has an UHF radio receiver which operates in the 655 – 679 MHz range, and can be expanded with an additional system. The on-board Bluetooth player with backlit multifunction display ,equalizer, USB port and SD card slot supports the mp3, wma and wav formats. A handheld microphone with 10 mW output power(LDRBUD10B6) or as an alternative a headset microphone with belt pack (LDRBUD10HSB6) and an IR-remote control for the player are included.
For wired devices, the Roadbuddy has two channels with combo jacks and individual volume controllers that are switchable for microphone and line level, a stereo input via RCA (Cinch) sockets (mono summed) and a 3.5 mm Aux input. Treble, Bass, Echo and Master volume controllers complete the control panel.
The LD Systems Roadbuddy is easily transportable thanks to built-in castor wheels and a pull-out handle. On the top, there is a handy storage compartment for up to two hand-held transmitter microphones. The plastic housing of this lightweight device has been designed to accommodate a 35 mm tripod mount.
Specifications
| Product number | LDRBUD10HSB6 |
| Product type | Battery-powered PA speaker |
| Low/mid driver dimensions | 10″ |
| Woofer size | 254mm |
| Woofer magnet | Ferrite |
| Woofer brand | Custom-made |
| HF driver dimensions | 1″ |
| HF driver dimensions (mm) | 25.4mm |
| HF driver magnet | Ferrite |
| HF driver brand | Custom-made |
| Amplifier | Class D |
| RMS | 120W |
| Peak power | 480W |
| Frequency response | 55 – 18000Hz |
| SPL (1W/1m) | 96dB |
| Max. SPL | 115dB |
| Protection circuits | over-current, overload protection, short circuit |
| Controls | CD / Tape IN Level, Total volume, Mic 2 Level, AUX / MP3 switch, low, Mic 1 Level, Echo, high |
| Indicators | Charge/battery status, Power |
| Media player | |
| Supported media | Bluetooth, USB stick, SD Card |
| Supported formats | WMA file, WAV-CD, MP3 file |
| Media player controls | Play / Pause, Previous Track, Next Track, Mode (Menu / Bluetooth /SD / USB), Repeat, equalizer, Stop |
| Media player display elements | Lighted multifunctional LC display |
| Line inputs | 1 |
| Line input connectors | 2 x XLR, 3.5 mm jack, 2 x RCA, 6.3 mm jack |
| Mic inputs | 2, 2 x XLR, 6.3 mm jack |
| Wireless Unit | |
| Transmission frequency range | 655.000 – 679.000MHz |
| Modulation Type | FM |
| Channels | 16 |
| Frequency Response Wireless Unit | 50 – 17000lx @ 1mHz |
| Controllers Wireless Unit | Power / Volume, Mute Level (Squelch), ASC, Value Up, Value Down |
| Indicators Wireless Unit | LED Display, AF (LED), RF (LED) |
| Connections Wireless Unit | nTNC for receiver antenna |
| RF Transmitter Power Output | 10mW |
| Handheld Microphone Weight | 0.285kg |
| Handheld Microphone Material | aluminium |
| Operating voltage | Switching power supply, 220 V – 240 V AC / 50 Hz, 100 V – 120 V / 60 Hz |
| Rechargeable batteries | 12 V / 5 Ah |
| Cabinet material | polypropylene |
| Cabinet construction | vented |
| Width | 415mm |
| Height | 525mm |
| Depth | 328mm |
| Weight | 16.5kg |
| Other features | Transport casters, Stand mount 36 mm, extendable handle, IR Remote for Media Player, transport handle |
