SDI Cable Reel 50m 75 Ohm Coax

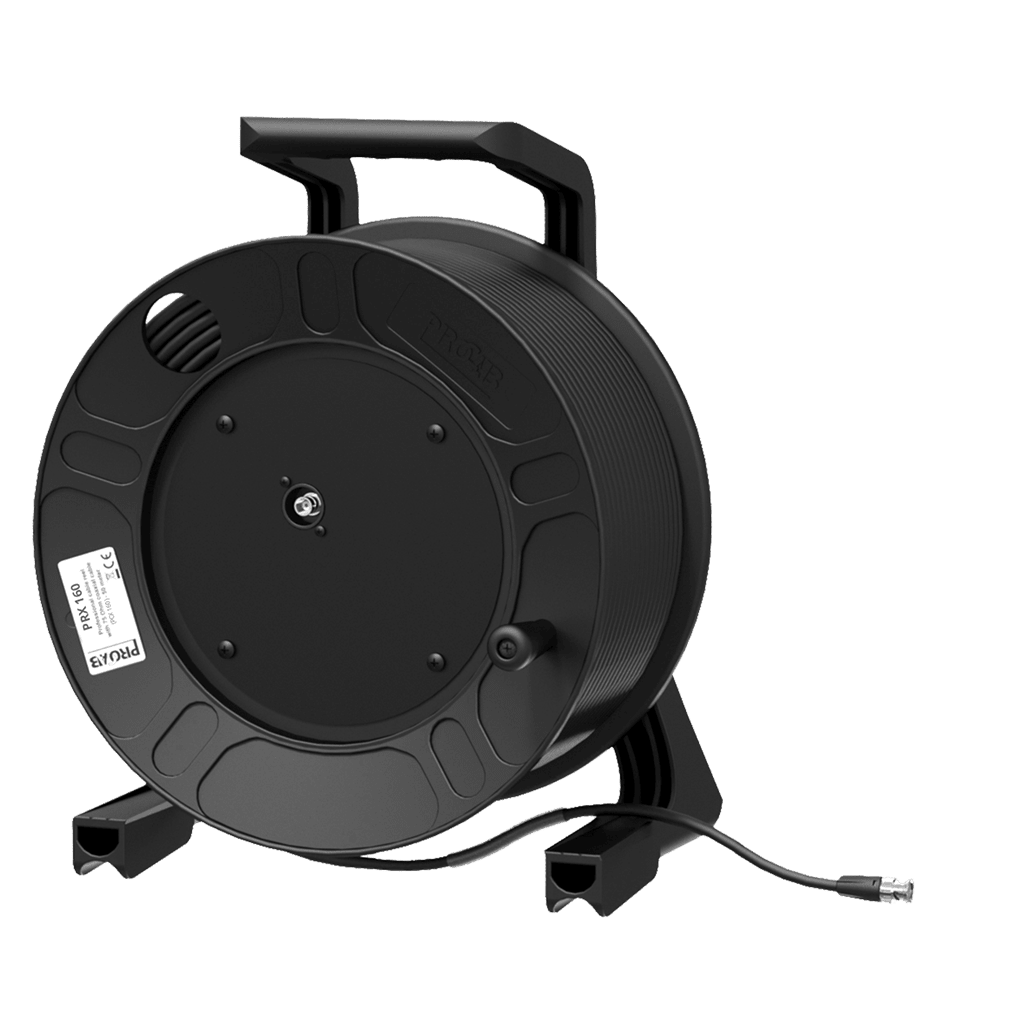

The PRX160 is a HighFlex™ 75Ω coaxial video cable (PCX160) assembled on a lightweight, extremely strong and impact resistant reel (CDM310). The cable is solid but flexible constructed featuring a stranded high purity copper conductor (19 AWG), which is surrounded by a foamed polyethylene isolator. The shielding consists of a dual braiding which offers a high immunity against noise and interference caused by external devices, while offering a high flexibility and reliability for mobile applications. The cable end is terminated using a male BNC connector while chassis side is fitted with a female BNC connector. It can be used for a wide variety of mobile applications such as analogue video interconnections as well has HDTV digital SDI and HD-SDI.
 Highlights

19 AWG stranded conductors
Highflex™ solid & flexible jacket
Double braided shielding
7 mm (Ø) outer diameter
HD-SDI up to 85 meter
3G-SDI up to 58 meter
Oxygen free copper
60 mm transparent shrink sleeve
Neutrik Connectors
