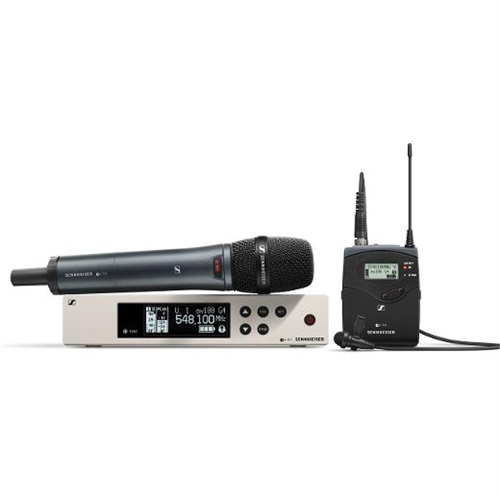

- Engineered for professional live sound: Rugged all-in-one combo wireless system for singers, presenters and moderators.
- Dynamic handheld microphone e 835, robust bodypack transmitter and unobstrusive clip-on microphone ME 2-II (omni-directional) with high speech intelligibility for daily use on stage
- True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Fast frequency allocation for up to 12 receivers via new linking functionality
- Up to 20 compatible channels
- Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
- Transmission Range: up to 100 meters / 300 feet
- High RF output power (up to 30 mW) depending on country regulations
| Dimensions | Approx. 190 x 212 x 43 mm Approx. 82 x 64 x 24 mm Approx. Ø 50 x 265 mm |
| Connector | 3.5 mm jack |
| Compander | Sennheiser HDX |
| Frequency response | 50 to 18,000 Hz (ME 2-II) |
| Sound pressure level (SPL) | 154 dB SPL |
| Max. sound pressure level | 130 dB |
| THD, total harmonic distortion | ≤ 0.9 % |
| Cable length | approx. 1.60 m |
| Transducer principle | pre-polarized condensor microphone dynamic |
| Weight | Approx. 980 g (incl. batteries) approx. 160 g (incl. batteries) approx. 450 g |
| Audio output | 6.3 mm jack socket (unbalanced): +12 dBu XLR socket (balanced): +18 dBu |
| Pick-up pattern | omni-directional cardioid |
| Sensitivity in free field, no load (1kHz) | 20 mV/Pa |
| Signal-to-noise ratio | ≥ 110 dBA |
| Equivalent noise level | 36 dB |
| RF output power | Max. 30 mW |
| Switching bandwidth | up to 42 MHz |
| Peak deviation | ±48 kHz |
| Nominal deviation | ±24 kHz |
| Operating time | Typically 8 h |
| Modulation | Wideband FM |
| Power supply | 12 V DC 2 AA batteries, 1.5 V or BA 2015 accupack 2 AA batteries, 1.5 V or BA 2015 accupack |
| Antenna connector | 2 BNC sockets |
| Current consumption | 300 mA at nominal voltage: typ. 180 mA at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 µA with transmitter switched off: ≤ 25 µA |
| Adjacent channel rejection | Typically ≥ 65 dB |
| Input impedance | 40 kΩ, unbalanced / 1 MΩ 40 kΩ |
| Intermodulation attenuation | Typically ≥ 65 dB |
| Max. Input voltage | 3 Veff |
| Powering | 3 V battery / 2.4 V rechargeable battery |
| Receiving frequency | Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels |
| RF sensitivity | < 2.5 μV for 52 dBA eff S/N |
