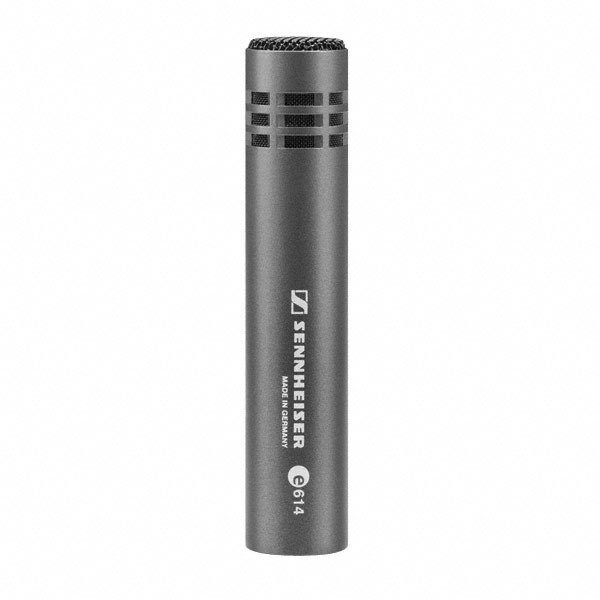

Sennheiser E 614 Polarized Condenser Microphone

Overview The e 614 is a super-cardioid condenser microphone, designed for demanding instrument recordings and performances that require extended frequency response, high SPL handling, fast transient response and compact size. While drumset overhead miking was the first design priority, the e614 also works exceptionally well on percussion setups as well, fitting comfortably into tight setups. The e 614 can handle high SPLs and features medium sensitivity, which ensures reduced bleed from other instruments on stage. Because of its excellent acoustic properties, this mic is also ideal for home recording. Features 40-20,000 Hz Designed for demanding applications where extended frequency range, high SPL handling, fast transient response and small size are required Captures the shimmer and the contact of sticks, mallets and hands Nearly flat response from 40 Hz to 20 kHz and a supercardioid pattern What’s in the box? e 614 Microphone pouch Microphone clip MZQ 100 Technical Data   DimensionsØ 20mm, L = 100mm  ConnectorXLR-3  Frequency response40 – 20000 Hz  Transducer principlepre-polarised condenser microphone  Weightw/o cable: 93 g  Pick-up patternsuper-cardioid  Sensitivity in free field, no load (1kHz)3 mV/Pa = – 50dB (0 dB = 1 V/Pa)  Nominal impedance50 Ω  Min. terminating impedance1000 Ω  Phantom powering12 – 52 V / 3 mA  Equivalent noise level24 dB(A)  Equivalent noise level weighted as per CCIR 468-335 dB  Maximum sound pressure level (passiv)139 dB/SPL
