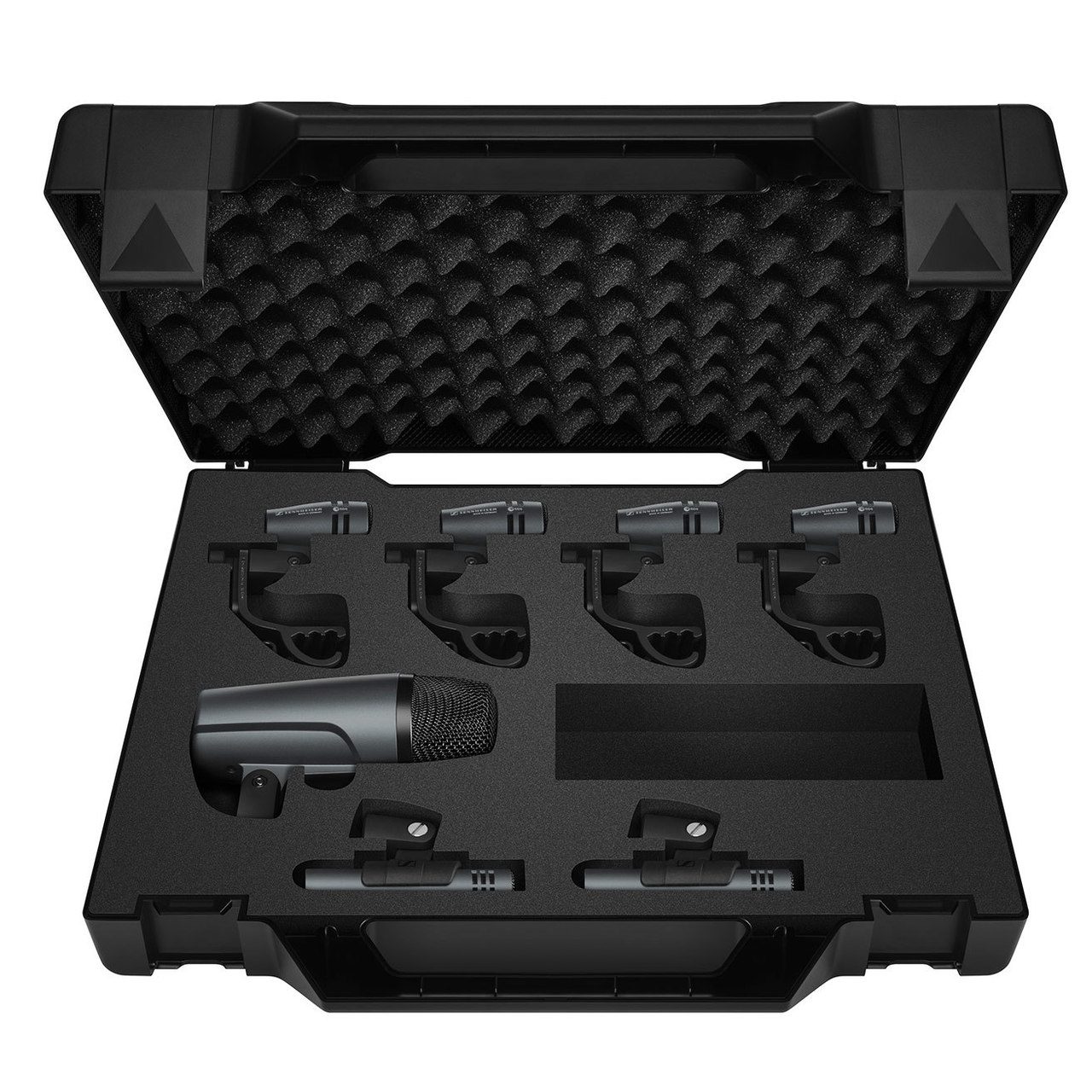

Sennheiser E 600 Series Drum Set

All you need for a powerful drum performance in a heavy duty case for optimal protection. Includes 1x e 602-II, cardioid instrument microphone for bass drums, 4x e 604, cardioid microphone for snare and tom-tom, and 2x e 614, super-cardioid, permanently polarized condenser microphone for cymbal and overhead.


e 614: for demanding instrument recordings, and performances that produce extended frequencies, high SPL handling and transient response. For woodwind, strings, and home recording

e 604: for toms, snares, and percussion, clips-on quickly and easily wherever you choose. Tough, reinforced housing, and clamp

602-II: for bass drums, bass guitar cabs and tubas. Solid, lightweight, and easy to position. For studios, clubs, rehearsal rooms, smaller gigs, or for home recording.

Specifications

e 614

Dimensions

Ø 20mm, L = 100mm

Connector

XLR-3

Frequency response

40 – 20000 Hz

Max. sound pressure level

139 dB/SPL

Transducer principle

pre-polarised condenser microphone

Weight

93 g

Pick-up pattern

super-cardioid

Sensitivity in free field, no load (1kHz)

3 mV/Pa = – 50dB (0 dB = 1 V/Pa)

Nominal impedance

50 Ω

Min. terminating impedance

1000 Ω

Phantom powering

12 – 52 V / 3 mA

Equivalent noise level

24 dB(A)

Equivalent noise level weighted as per CCIR 468-3

35 dB
