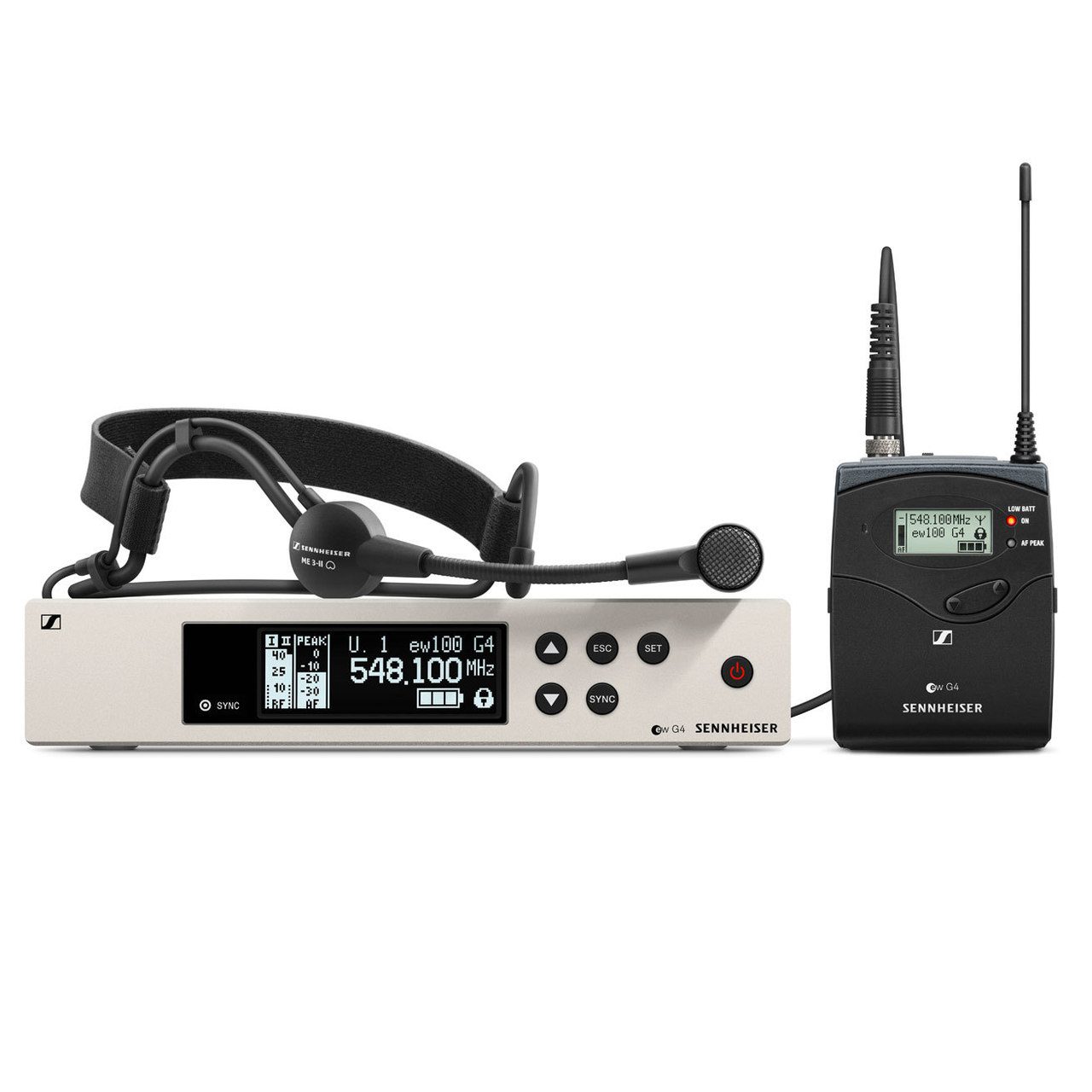

The ew 100 G4-ME 3-II Wireless Bodypack System with ME 3-II Cardioid Headset Microphone from Sennheiser is the latest addition to their evolution family of wireless microphones that is fully compatible with all previous series. This kit includes an EM100 G4 UHF diversity rackmount receiver, an SK 100 G4 bodypack transmitter with ME 3-II cardioid headset microphone, a GA3 rackmount kit, and a RJ10 linking cable. It can be used to capture audio in indoor environments for hands-free speech and interview applications.
Key Features
- Engineered for professional live sound: Rugged all-in-one wireless system for singers and presenters.
- Robust bodypack transmitter and feedback resistent headmic ME 3-II with high speech intelligibility for daily use on stage
- True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Fast frequency allocation for up to 12 receivers via new linking functionality
- Up to 20 compatible channels
- Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
- Transmission Range: up to 100 meters
- High RF output power (up to 30 mW) depending on country regulations
Specifications
| SK 100 G4 Wireless Bodypack Transmitter B: (626 to 668 MHz) | |
| Modulation | Wideband FM |
| Frequency Range | B: (626 to 668 MHz) |
| Transmission Frequencies | Maximum 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels |
| Switching Bandwidth | Up to 42 MHz |
| Nominal/Peak Deviation | ±24 kHz / ±48 kHz |
| Frequency Stability | ≤ ±15 ppm |
| RF Output Power | Maximum 30 mW at 50 Ohms |
| Pilot Tone Squelch | Can be switched off |
| Compander | Sennheiser HDX |
| AF Frequency Response | Mic: 80 Hz to 18 kHz Line: 25 Hz to 18 kHz |
| Signal to Noise Ratio | ≥ 110 dBA (1 mV, peak deviation) |
| Total Harmonic Distortion (THD) | ≤ 0.9% |
| Maximum Input Voltage | Microphone/Line: 3 V eff |
| Input Impedance | Microphone/Line: 40 kOhms, unbalanced / 1 MOhms |
| Input Capacitance | Switchable |
| Input Sensitivity Range | 60 dB, adjustable in 3 dB steps |
| Temperature Range | 14 to 131°F (-10 to 55°C) |
| Power Supply | 2 x AA batteries, 1.5 V or BA 2015 accupack |
| Nominal Voltage | 3 V battery / 2.4 V rechargeable battery |
| Current Consumption | At Nominal Voltage: Approximately 180 mA With Transmitter Switched Off: ≤ 25 µA |
| Operating Time | Typically 8 hours |
| Dimensions (W x L x H) | 82 x 64 x 24 mm |
| Weight | 160 g |
| EM 100 G4 Wireless UHF True Diversity Rackmount Receiver B: (626 to 668 MHz) | |
| Receiver | |
| Frequency Band | B: (626 to 668 MHz) |
| Type of Receiver | EM 100 G4 half-rack mountable true diversity UHF |
| Receiving Frequency | Maximum 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels |
| Switching Bandwidth | Up to 42 MHz |
| Nominal/Peak Deviation | ±24 kHz / ±48 kHz |
| Receiver Type | True diversity |
| Sensitivity | < 2.5 μV for 52 dBA (with HDX, peak deviation) |
| Adjacent Channel Selectivity | Typically ≥ 65 dB |
| Intermodulation Attenuation | Typically ≥ 65 dB |
| Blocking | ≥ 70 dB |
| Squelch | Low: 5 dB µV Middle: 15 dB µV High: 25 dB μV |
| Pilot Tone | Squelch: Can be switched off |
| Antenna Inputs | 2 x BNC sockets |
| Compander | Sennheiser HDX |
| AEQ Presets | Switchable, act on line and monitor outputs
Preset 1: Flat |
| Signal to Noise Ratio | ≥ 110 dBA (1 mV, peak deviation) |
| Total Harmonic Distortion (THD) | ≤ 0.9% |
| AF Output | 1/4″ (6.3 mm) jack socket unbalanced, +12 dBu XLR socket balanced, +18 dBu |
| Output Range | AF Out: 48 dB (3 dB steps) |
| Temperature Range | 14 to 131°F (-10 to 55°C) |
| Power Supply | 12 VDC, 300 mA |
| Dimensions (W x L x H) | 190 x 212 x 43 mm |
| Weight | 980 g |
| ME 3-II Headmic with Cardioid Capsule for Wireless Systems | |
| Microphone | Pre-polarised condenser |
| Sensitivity | 1.6 mV/Pa |
| Pick-up Pattern | Cardioid |
| Maximum Sound Pressure Level (SPL) | 150 dB |
| Connector | 1/8″ (3.5 mm) locking mini-jack |
