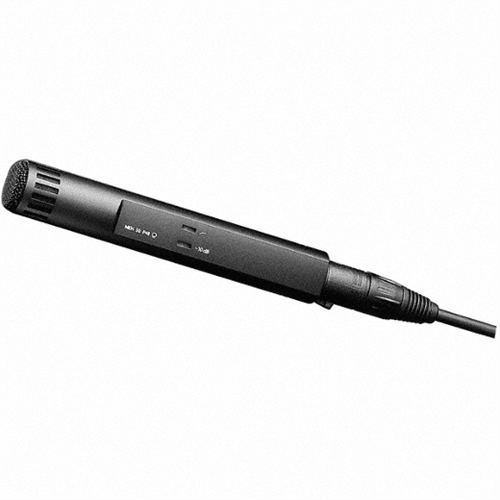

The super-cardioid MKH 50 offers a higher attenuation of diffusefield and lateral sound than the cardioid microphone. It is principally designed for use as a soloist’s or spot microphone for applications requiring a high degree of side-borne sound muting and feedback rejection. The directional characteristics are frequency-independent.
Dimensions Ø 25 x 153 mm
Frequency response (Microphone) 40 – 20000 Hz
Transducer principle (Microphone) RF condenser microphone
Max. sound pressure level 134 (142) dB / 1 kHz
Pick-up pattern super-cardioid
Sensitivity in free field, no load (1kHz) 25 mV/Pa +- 1 dB
Nominal impedance 150 Ω
Min. terminating impedance 1000 Ω
Equivalent noise level 12 (18) dB
Equivalent noise level weighted as per CCIR 468-3 21 (27) dB
Current consumption 2 mA
Power Specification 48 +- 4 V Phantom
Super-cardioid pick-up pattern for higher attenuation of diffusefield and lateral sound
Soloist’s microphone for applications requiring a high degree of side-borne sound muting and feedback rejection
Exceptionally low inherent self-noise
High rejection of lateral sounds
Exceptionally low inherent self-noise
Transformerless and fully floating balanced output
Symmetrical transducer technology ensures extremely low distortion
Switchable roll-off filter to compensate for proximity effects at a distance of approx. 0.5 m
Switchable pre-attenuation
Black, anodised light metal body
