Description

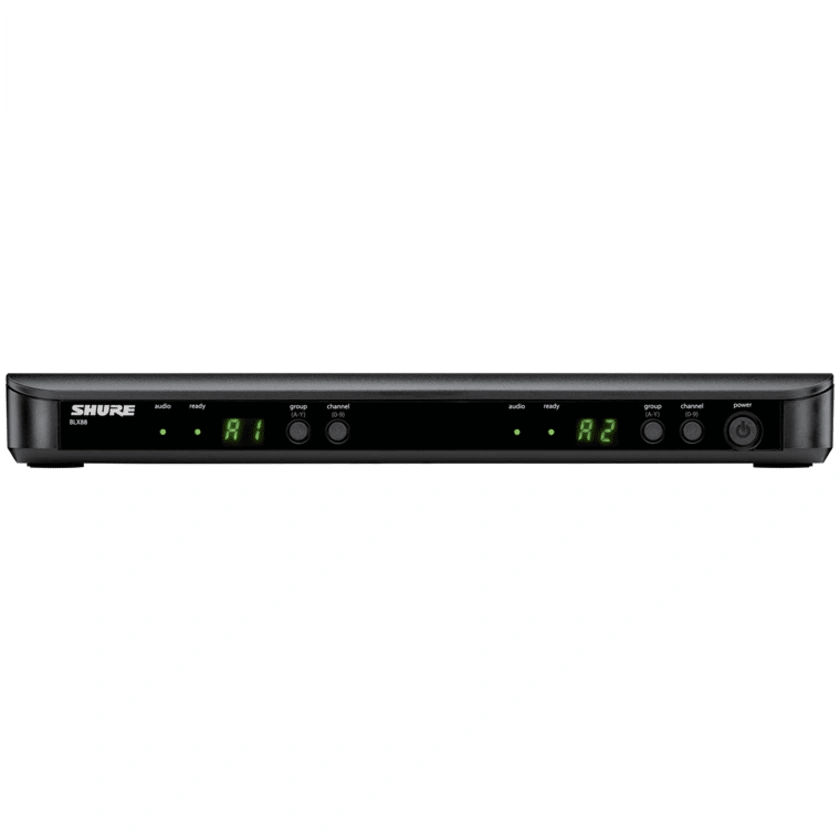

The BLX88 Dual-Channel Wireless Receiver from Shure is a dual-channel UHF wireless receiver. It has microprocessor-controlled internal antenna diversity for reduced signal interference and dropouts. The one-touch QuickScan frequency selection feature allows you to quickly locate the frequency with the least amount of interference available.
Its front-panel dual-colour LED status indicator displays green for normal levels and red when clipping for fast metering. It has two XLR outputs in additional to two instrument-level 1/4″ outputs. The BLX88 can be used with up to 11 other compatible systems simultaneously per frequency band.
M17 which is 662 to 686 MHZ
Specifications
| Output | 2x XLR Output 2x 1/4″ (6.35 mm) Output |
| Output Impedance | XLR: 200 ohms 1/4″: 50 ohms |
| Audio Output Level | XLR Connector: -20.5 dBV into 100 kOhm Load (Reference +/-33 kHz with 1 kHz Tone) 1/4″: -13 dBV into 100 kOhm Load (Reference +/-33 kHz with 1 kHz Tone) |
| RF Sensitivity | -105 dBm for 12 dB SINAD, Typical |
| Image Rejection | >50 dB, Typical |
| Housing | Moulded ABS |
| Power Requirement | 12 to 15 VDC @ 320 mA, Supplied by External Power Supply (Tip Positive) |
| Dimensions (H x W x D) | 1.5 x 15 x 4.5″ (40 x 388 x 116 mm) |
| Weight | 15.1 oz (429 g) |
