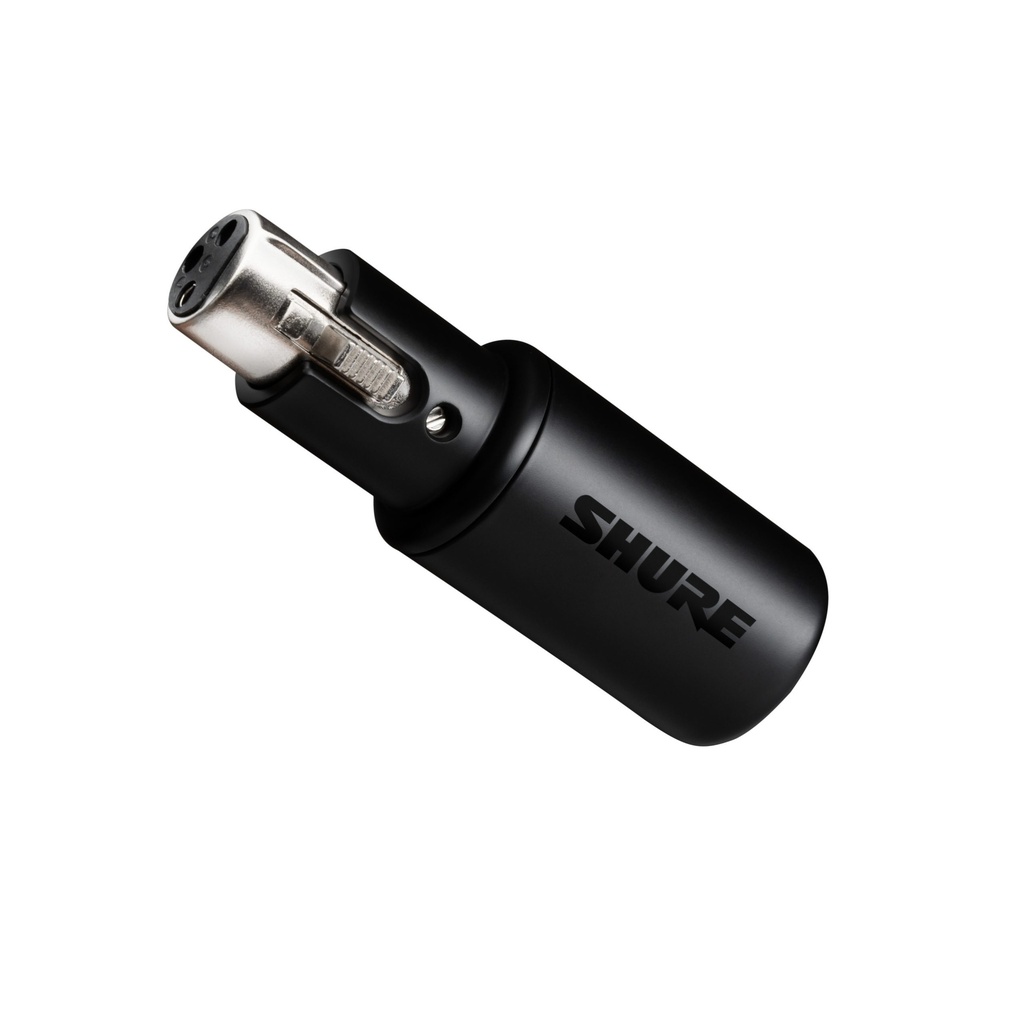

Shure MVX2U XLR-to-USB Digital Interface

OVERVIEW
The MVX2U Digital Audio Interface is a powerful, single-channel XLR-to-USB adapter that allows you to
connect any XLR microphone to a computer for effortless recording and streaming. With configurable DSP
features and full access to ShurePlus MOTIV Desktop App, the compact interface is future-proofed via online
firmware updates. Providing up to 60dB of clean gain, the XLR-to-USB adapter has enough power to bring your
favorite dynamic microphone, such as the legendary SM7B, to life. It also offers up to 48v of phantom power for
connecting a condenser microphone to your computer. Portable, sleek and rugged, the MVX2U can be plugged
straight onto an XLR microphone or used in-line with an XLR cable, depending on your setup.
FEATURES
• Make your favorite dynamic or condenser XLR microphone ready for podcasting or livestreaming with
the MVX2U. The XLR-to-USB adapter enables digital recording and streaming right out of the box with
Auto Level Mode and phantom power already switched on.
• Upgrade your XLR microphone with configurable onboard DSP via the ShurePlus MOTIV Desktop App.
• A built-in 3.5mm headphone jack with zero-latency monitoring ensures you’ll get the desired audio
output every time.
• Supplies 48v of phantom power for condenser microphones.
• Provides clean gain of up to 60dB that is sufficient to amplify signals for dynamic microphones such
as SM7B. CPortable form factor with a sleek yet robust build can be plugged straight onto an XLR
microphone or used in-line with an XLR cable depending on your desired setup.
• Compatible with both Mac and Windows, connect your XLR microphone directly to your computer with
the included 1m USB-C to USB-C cable.

MVX2U
Digital Audio Interface

AUTO LEVEl MODE

• Set your distance Near or Far from the microphone, and let MVX2U auto-
matically adjust your gain level in real-time with intelligent onboard DSP for

consistent audio output.
• Customize your vocal tone by selecting between a Dark, Natural or Bright
sound signature.

MANUAL MODE

• Get full control of your mic output with configurable DSP features, such as
Gain, Limiter, Compressor, EQ and more.
• Save your own presets for quick future access.

MONITOR MIX • Set your preferred blend of monitoring and playback via the built-in headphone

jack.

FIRMWARE UPDATES • Firmware update ensure your interface will always have the latest features

from Shure.

SHUREPLUS MOTIV DESKTOP APP SOFTWARE FEATURES
The free app unlocks the following features for any XLR microphone using the MVX2U: below features are available made

accessible for XLR microphones with MVX2U-
SHUREPLUS MOTIVTM DESKTOP APP

Supports MVX2U with any XLR microphones

MVX2U DIGITAL AUDIO INTERFACE
XLR-TO-USB ADAPTER WITH HEADPHONE OUTPUT

SPECIFICATIONS
Input XLR
Input impedance 5.8kΩ
Bit Depth 16-bit/24-bit
Sampling Rate 48kHz
Frequency Response 20Hz to 20,000Hz
Adjustable Gain Range 0 to +60dB
Maximum Input Level 7dBV
Power Requirements Powered through USB-C
Phantom Power +48VDC
Digital Noise Floor
(20 Hz to 20 kHz, A-weighted) -117dBFS
LED Indicator
(Tricolor)

Green = Ready
Amber = Error
Red = Mute
Housing All Metal
Net Weight 100 g (3.5 Oz.)
Dimension 44 x 140 x 158mm H x W x D
Headphone Output 3.5 mm (1/8 inch) 20 mW @ 32Ω
Cable 1M USB-C to USB-C cable

SYSTEM REQUIREMENTS
USB USB 2.0
RAM 64MB RAM (minimum)

Operating System

MacOS 10.15 to 13
64 bit
Minimum 2 GB of RAM
Minimum 500 MB of hard disk space Windows 10
64 bit
Minimum 2 GB of RAM
Minimum 500 MB of hard disk space
