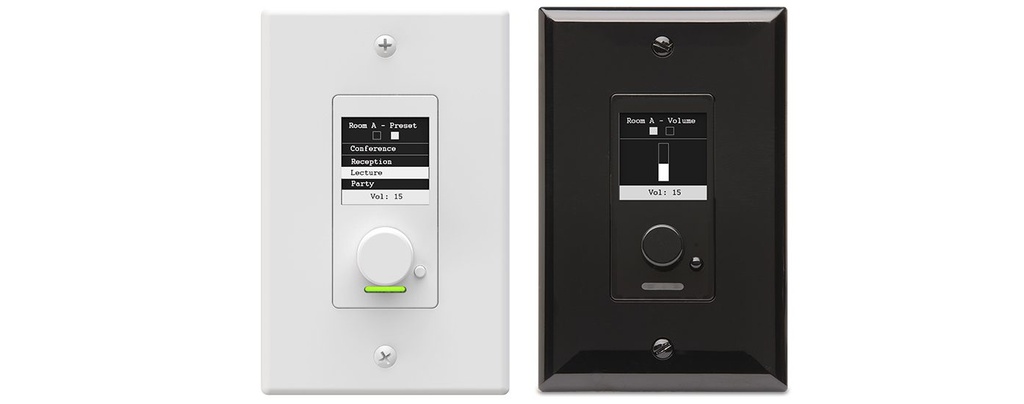

Axon C1 Wall Controller Single-Gang networked audio controller (Attero Tech by QSC)

Key Features

Ethernet-based control solution for the Q-SYS Ecosystem and other third-party AV products supporting UDP, TCP/IP control
Available Q-SYS control plugin for control mapping – no programming required
Menu customization with unIFY Control Panel software
High-contrast OLED display provides easy-to-read menus and status
Intuitive controls facilitate simple user experience over assigned AV system functions
Assignable LED light bar, provides optional feedback for zone level and system state
Minimalist design includes both black and white Decora faceplates to provide aesthetic appeal to a variety of venues
PoE powered – simple, single CAT-5e/CAT-6 cable installation

Axon C1 Control & Display:


Axon C1

User interface
One rotary / pushbutton encoder knob; one pushbutton toggle selector

Display type
1.5 in (38.1 mm) diagonal high-contrast OLED display

Status indicator
RGB LED bar, adjustable brightness

Axon C1 Specifications:


Axon C1

Network physical layer
Ethernet

Network connector(s)
RJ-45

Network transmission speed
100 Mbps

PoE power
802.3af Class 0

Device dimensions (H x W x D)
4.2 x 1.74 x 1.77 in (106.68 x 44.19 x 44.96 mm)

Device weight
0.25 lbs (0.113 kg)
