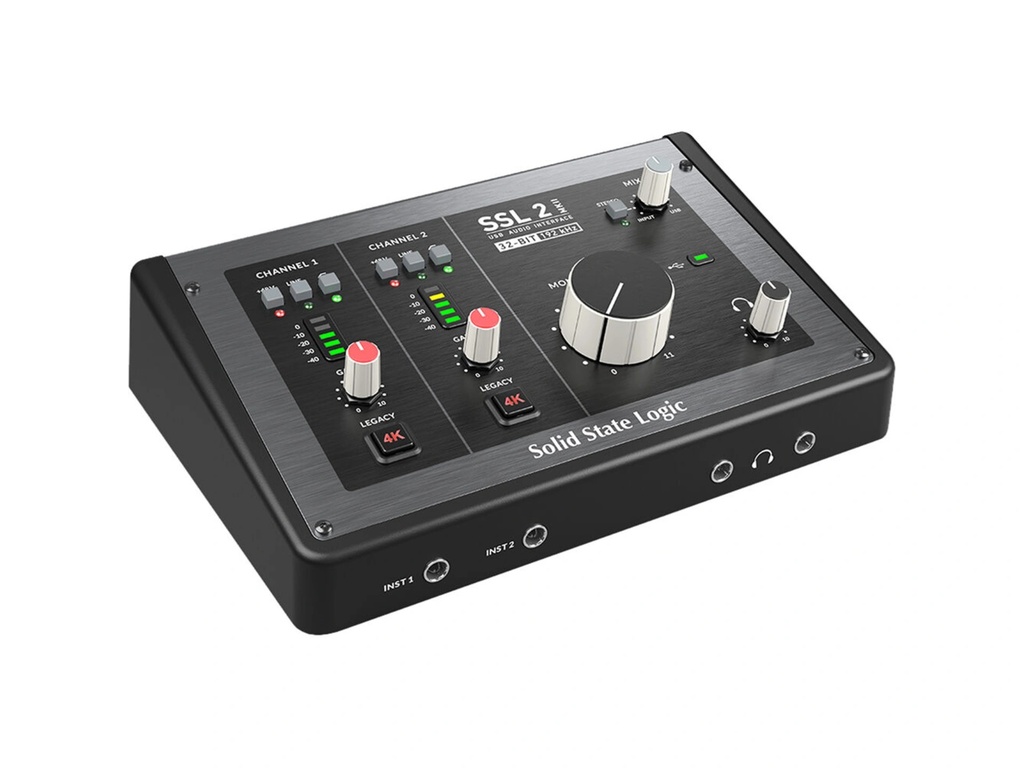

Solid State Logic SSL 2 MKII USB-C Audio Interface
$699.00 Inc GST Add to cart

Solid State Logic SSL 2 MKII USB-C Audio Interface

$699.00 Inc GST

Solid State Logic SSL 2 MKII USB-C Audio Interface

Can Order From Suppler Delivery Times Vary as some shipments are Delayed - Contact For ETA

Free NZ shipping on all orders over $499 (Select at Checkout)

  • $9 Flat Rate Shipping (For Orders Under $499)
  • Order Before 12pm to get Dispatched Same Day (Hamilton Stock Only) Excludes Weekends and Holidays
    *If Only 1 item is Left in stock this may have been opened for display
    *Image is for illustrative purposes only. Please refer to product description.

Description

Building upon the success of its predecessor, the Solid State Logic SSL 2 MKII 2×2 USB-C Audio Interface raises the bar by delivering exceptional 32-bit / 192 kHz audio quality. With a variety of carefully curated feature additions and a user-friendly design, this interface is suitable for both beginners and experienced professionals in the creative field. Whether recording podcasts or live streaming on social media, creators have access to all the necessary tools for producing high-quality content. The interface includes two top-notch mic preamps that capture every intricate detail in conversations and voiceovers. Additionally, the built-in stereo loopback functionality makes it effortless for audiences to hear virtual guests or system audio.

The SSL 2 MKII features cutting-edge AD/DA convertors from SSL, along with impressive mic/line/instrument inputs and two professional-grade headphone outputs. It also comes with the SSL Production Pack, providing music producers with everything they need to achieve professional-quality sound in the studio. The interface offers essential connectivity options for microphones and instruments, including auto-detect instrument DI inputs. SSL’s Legacy 4K analogue enhancement adds a unique “mojo” to tracks, while zero-latency monitoring ensures comfortable performance capture. Moreover, the SSL 2 MKII facilitates live performances by offering DC-coupled line outputs that send control voltages (CV) to synths, bridging the gap between the studio and the stage.

Specifications

Key Specs
Channels of I/O Analogue:
2 Inputs / 2 Outputs at 192 kHz
Maximum Sampling Rate 192 kHz / 32-Bit
Number of Microphone Inputs 2
Analogue Audio I/O 2x Combo XLR-1/4″ TRS Balanced/Unbalanced Mic/Line Input
2x 1/4″ TS Line/Hi-Z Input
2x 1/4″ TRS Headphone Output
2x 1/4″ TRS Balanced Monitor Output
Digital Audio I/O No
Host Connection 1x USB-C
Power Requirements USB Bus Power
Channels of I/O Analogue:
2 Inputs / 2 Outputs at 192 kHz
Built-In DSP No
Maximum Sampling Rate 192 kHz / 32-Bit
Number of Microphone Inputs 2
Built-In Microphone No
Input Level Adjustment 2x Knob
Signal Processing
Pad No
Gain/Trim Range Mic Inputs:
Up to 64 dB
Solo/Mute No
Connectivity
Analogue Audio I/O 2x Combo XLR-1/4″ TRS Balanced/Unbalanced Mic/Line Input
2x 1/4″ TS Line/Hi-Z Input
2x 1/4″ TRS Headphone Output
2x 1/4″ TRS Balanced Monitor Output
Phantom Power 48 V, Selectable On/Off (Selectable on Individual Inputs)
Digital Audio I/O No
Host Connection 1x USB-C
Host Connection Protocol USB 2.0
USB (Non-Host) No
Sync I/O No
Network I/O No
MIDI I/O No
Expansion Slots No
Wireless No
Performance
Frequency Response Mic Inputs:
20 Hz to 20 kHz ±0.1 dB
Line, Hi-Z Inputs:
20 Hz to 20 kHz ±0.05 dB
Line, Headphone, Monitor Outputs:
20 Hz to 20 kHz ±0.05 dB
Maximum Input Level Mic Inputs:
+5.5 dBu
Line Inputs:
+24 dBu
Hi-Z Inputs:
+15 dBu
Maximum Output Level 1/4″ Line Outputs:
+14.5 dBu
Headphone Outputs:
+13 dBu
Impedance Mic Inputs:
1.2 Kilohms
Line Inputs:
10 Kilohms
RCA Line Outputs:
< 1 Ohm
Hi-Z Inputs:
1 Megohm
Headphone Outputs:
10 Ohms
Monitor Outputs:
1 Ohm
Dynamic Range 1/4″ Hi-Z:
116 dB
Line Inputs:
117 dB
Mic Inputs:
116.5 dB
Headphone Outputs:
119.5 dB
Line Outputs:
120 dB
THD+N Mic/Line/Hi-Z Inputs:
< 0.005% (at -1 dBFS)
Monitor Outputs:
< 0.002% (at -1 dBFS)
RCA Line Outputs:
< 0.0025% (at -1 dBFS)
Headphone Outputs:
< 0.002% (at -1 dBFS)
EIN Mic Inputs:
-130.5 dBu A-Weighted (150-Ohm Source)
Digital Audio
Sample Rates Up to 192 kHz
Sample Rate Conversion No
Bit Depths Up to 32-Bit
Latency < 1 ms at 48 kHz (Input to Output)
Sync Sources Internal
Audio Storage & Playback
Media/Memory Card Slot No
Compatibility
OS Compatibility macOS / Windows
Required Hardware Available USB 2.0 Port
USB Cable (Included)
Power
Power Requirements USB Bus Power
Physical
Dimensions 9.2 x 6.2 x 2.7″ / 23.4 x 15.7 x 6.9 cm
Weight 2.0 lb / 0.9 kg
