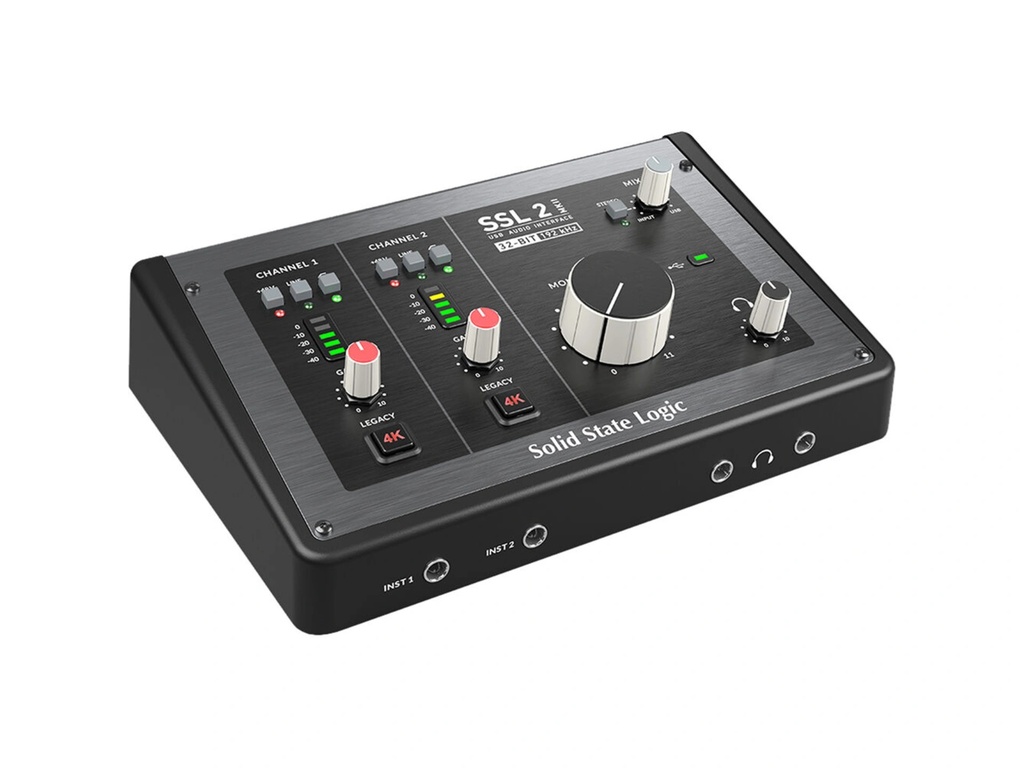

Solid State Logic SSL 2 MKII USB-C Audio Interface

Description

Building upon the success of its predecessor, the Solid State Logic SSL 2 MKII 2×2 USB-C Audio Interface raises the bar by delivering exceptional 32-bit / 192 kHz audio quality. With a variety of carefully curated feature additions and a user-friendly design, this interface is suitable for both beginners and experienced professionals in the creative field. Whether recording podcasts or live streaming on social media, creators have access to all the necessary tools for producing high-quality content. The interface includes two top-notch mic preamps that capture every intricate detail in conversations and voiceovers. Additionally, the built-in stereo loopback functionality makes it effortless for audiences to hear virtual guests or system audio.
The SSL 2 MKII features cutting-edge AD/DA convertors from SSL, along with impressive mic/line/instrument inputs and two professional-grade headphone outputs. It also comes with the SSL Production Pack, providing music producers with everything they need to achieve professional-quality sound in the studio. The interface offers essential connectivity options for microphones and instruments, including auto-detect instrument DI inputs. SSL’s Legacy 4K analogue enhancement adds a unique “mojo” to tracks, while zero-latency monitoring ensures comfortable performance capture. Moreover, the SSL 2 MKII facilitates live performances by offering DC-coupled line outputs that send control voltages (CV) to synths, bridging the gap between the studio and the stage.

Specifications

Key Specs


Channels of I/O
Analogue:2 Inputs / 2 Outputs at 192 kHz

Maximum Sampling Rate
192 kHz / 32-Bit

Number of Microphone Inputs
2

Analogue Audio I/O
2x Combo XLR-1/4″ TRS Balanced/Unbalanced Mic/Line Input2x 1/4″ TS Line/Hi-Z Input2x 1/4″ TRS Headphone Output2x 1/4″ TRS Balanced Monitor Output

Digital Audio I/O
No

Host Connection
1x USB-C

Power Requirements
USB Bus Power

Channels of I/O
Analogue:2 Inputs / 2 Outputs at 192 kHz

Built-In DSP
No

Maximum Sampling Rate
192 kHz / 32-Bit

Number of Microphone Inputs
2

Built-In Microphone
No

Input Level Adjustment
2x Knob

Signal Processing


Pad
No

Gain/Trim Range
Mic Inputs:Up to 64 dB

Solo/Mute
No

Connectivity


Analogue Audio I/O
2x Combo XLR-1/4″ TRS Balanced/Unbalanced Mic/Line Input2x 1/4″ TS Line/Hi-Z Input2x 1/4″ TRS Headphone Output2x 1/4″ TRS Balanced Monitor Output

Phantom Power
48 V, Selectable On/Off (Selectable on Individual Inputs)

Digital Audio I/O
No

Host Connection
1x USB-C

Host Connection Protocol
USB 2.0

USB (Non-Host)
No

Sync I/O
No

Network I/O
No

MIDI I/O
No

Expansion Slots
No

Wireless
No

Performance


Frequency Response
Mic Inputs:20 Hz to 20 kHz ±0.1 dBLine, Hi-Z Inputs:20 Hz to 20 kHz ±0.05 dBLine, Headphone, Monitor Outputs:20 Hz to 20 kHz ±0.05 dB

Maximum Input Level
Mic Inputs:+5.5 dBuLine Inputs:+24 dBuHi-Z Inputs:+15 dBu

Maximum Output Level
1/4″ Line Outputs:+14.5 dBuHeadphone Outputs:+13 dBu

Impedance
Mic Inputs:1.2 KilohmsLine Inputs:10 KilohmsRCA Line Outputs:< 1 OhmHi-Z Inputs:1 MegohmHeadphone Outputs:10 OhmsMonitor Outputs:1 Ohm

Dynamic Range
1/4" Hi-Z:116 dBLine Inputs:117 dBMic Inputs:116.5 dBHeadphone Outputs:119.5 dBLine Outputs:120 dB

THD+N
Mic/Line/Hi-Z Inputs:< 0.005% (at -1 dBFS)Monitor Outputs:< 0.002% (at -1 dBFS)RCA Line Outputs:< 0.0025% (at -1 dBFS)Headphone Outputs:< 0.002% (at -1 dBFS)

EIN
Mic Inputs:-130.5 dBu A-Weighted (150-Ohm Source)

Digital Audio


Sample Rates
Up to 192 kHz

Sample Rate Conversion
No

Bit Depths
Up to 32-Bit

Latency
< 1 ms at 48 kHz (Input to Output)

Sync Sources
Internal

Audio Storage & Playback


Media/Memory Card Slot
No

Compatibility


OS Compatibility
macOS / Windows

Required Hardware
Available USB 2.0 PortUSB Cable (Included)

Power


Power Requirements
USB Bus Power

Physical


Dimensions
9.2 x 6.2 x 2.7" / 23.4 x 15.7 x 6.9 cm

Weight
2.0 lb / 0.9 kg
