The Solid State Logic SSL 2+ is a desktop USB audio interface designed for engineers who want the legendary sound of SSL gear in a project-studio form factor. This interface captures audio at sample rates and resolutions of up to 192 kHz / 24-bit.
The SSL 2+ offers two combination XLR-1/4″ inputs for microphones, line signals, and Hi-Z instruments such as guitars and basses. Two 1/4″ outputs are provided for monitors, and two 1/4″ headphone outputs are on hand for private listening. MIDI I/O is provided over 5-pin DIN jacks.
You’ll also find two pairs of RCA outputs, one meant for outputting the same signal as the main L/R outputs over an unbalanced connection; the other a discrete output path. Use this output path for cue mixes during recording or for processing material through outboard gear in the mix.

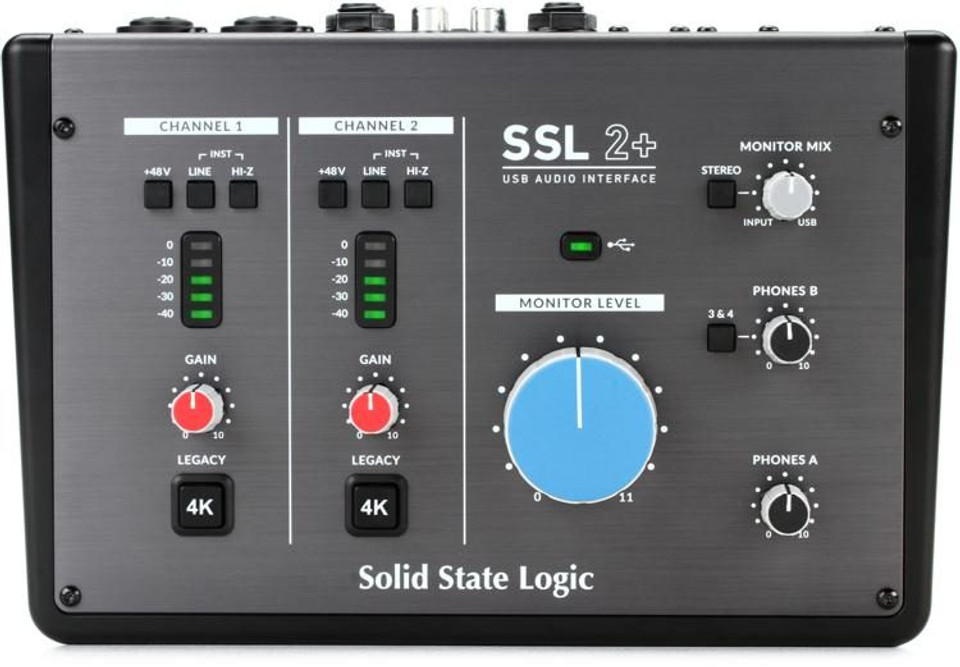

The interface itself offers a simple, elegant panel setup, with a prominent monitor level knob, and smaller controls for your headphone outputs and monitor mix. Headphone Output B can be switched to outputs 3&4 to control the level of that output path. The monitor mix knob can be used to counter any latency from recording at high buffer rates in your DAW. Cranked counterclockwise all the way, you’ll be monitoring the input path alone, and you can introduce more of the USB signal by rotating the knob to the right.
Each input section offers switches for 48V phantom power, line signal, or Hi-Z signal, as well as 5-segment metering and gain knobs. All knobs and switches are reminiscent of iconic SSL consoles.
Underneath the gain knob on both inputs you’ll note the Legacy 4K button. This feature helps you bring dull, uninspiring audio to life as you record it, doing so by adding subtle harmonic distortion and a high-frequency boost. The boost and the distortion are both analogue processes that take their cue from the sound of SSL 4000 consoles, hence the name 4K.
Rounding things out, the interface includes the SSL Production Pack, a software bundle offering native plug-ins, DAWs, samples, loops, and virtual instruments. Purchase the SSL 2+ and you also get VocalStrip 2, DrumStrip, Pro Tools | First, Ableton Live Lite, 1.5 GB of samples from Loopcloud, Komplete Start, and more.
Key Features:
- 2 x mic preamps with 62 dB of gain.
- Neutrik connectors and Alps pots.
- High-current headphone amp.
- 24-bit / 192 kHz AKM convertors.
- MIDI I/O.
- Unbalanced outputs over RCA.
- Legacy 4K Analogue Enhancement inspired by SL4000 series console.
- SSL Production Pack software bundle.
Specifications
| Interface | |
| Channels of I/O | Analogue: 2 Inputs / 4 Output |
| Max Sample Rate/Resolution | 192 kHz / 24-Bit |
| Display and Indicators | 5 x <LEDs (Level) |
| Connectivity | |
| Host Connection | 1 x <USB Type-C |
| Analogue I/O | 2 x Combo XLR-1/4″ Balanced/Unbalanced Mic/Line/Hi-Z Input 2 x 1/4″ TRS Headphone Output 2 x 1/4″ TRS Balanced Monitor Output 4 x RCA Unbalanced Output |
| Phantom Power | +48 V, Selectable On/Off (Selectable on Individual Inputs) |
| Digital I/O | None |
| MIDI I/O | 1 x <5-Pin MIDI In 1 x 5-Pin MIDI Out |
| Memory Card Slot | None |
| Performance | |
| Frequency Response | Hi-Z Inputs, Line Inputs: 20 Hz to 20 kHz ±0.05 dB Mic Inputs: 20 Hz to 20 kHz ±0.1 dB |
| Gain Range | Inputs: 62 dB |
| Max Input Level | Inputs: +5.5 dBu |
| Max Output Level | Outputs: +12.5 dBu |
| Dynamic Range | Inputs: 110.5 dBA Monitor Outputs: 112 dBA Headphone Outputs: 111 dBA |
| THD+N | Inputs: < 0.0015% < 0.5% Monitor Outputs: < 0.0012% < 0.002% |
| THD | 0 |
| EIN | Mic Inputs: 130 dBu (A-Weighted) |
| Digital Audio | |
| Sample Rates | Up to 192 kHz (AD/DA Conversion) |
| Bit Depth | Up to 24-Bit (AD/DA Conversion) |
| Sync Sources | Internal |
| Power | |
| Power Requirements | USB Bus-Power |
| Physical | |
| Anti-Theft Features | Kensington Security Slot |
| Dimensions | 9.2 x 6.2 x 2.7″ / 233.68 x 157.48 x 68.58 mm |
| Weight | 2.0 lb / 0.9 kg |
