***Price Is Per Meter***
This midget…

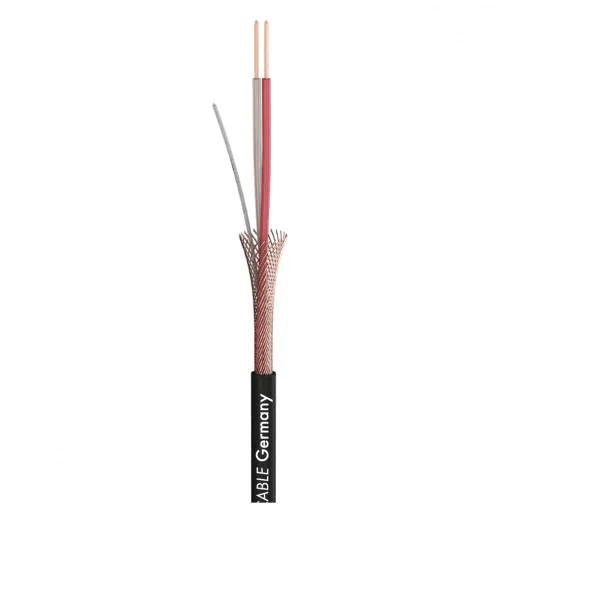

With its 2,60 mm of diameter it fits in all places with limited space. The SC-Cicada SO-D14 was originally developed by us as a quality switching line for the internal wiring in racks or audio components. But after extensive tests at various microphone companies, they soon recognized the outstanding technical and electrical specifications of the cable. In the meantime the SC-Cicada SO-D14 can be found on a lot of clip and ear microphones, headphones, and speech units. The SC-Cicada SO-D14 is particularly valued for its extremely high flexibility, the tight spiral braid and the pre-stranded and tin-plated drain wire, which gives this cable an additional kink protection and tear strength. You are a maker of high-grade audio components? Then wire up your devices with this cable! Its low noise and shielding will excite you! With a notch-proof and temperature resistant PUR jacket!
Advantages:
- Highly flexible because of its fine single litz design
- Easy to handle owing to the extra drain wire (0.22 mm²)
- Superb shielding due to the tight helical mesh screen with 95 % coverage
- Durable and notch-resistant due to the sturdy PUR jacket
Application:
- Interior wiring of mixing consoles, racks, and other audio
components - Flexible cable for clip-on microphones, earphones, speaker units, etc.
- Assembly of adapter cable
Specifications:
| Article number | 200-0451 |
|---|---|
| Name | SC-Cicada SO-D14 |
| EAN | 4049371002066 |
| Properties | OFC oxygen free copper |
| Properties | PUR |
| Properties | Analog |
| Application area | Installation |
| Application | Patch & Microphone Cable |
| Colour | black |
| Colour detailed | black |
| Signal transmission | symmetrical |
| Construction | (2LI2Y0,14mm²)DY |
| Jacket material | PUR Master-Blend |
| Jacket Ø [mm] | 2,60 |
| Number of Channels (audio) | 1 |
| Inner conductor (audio) | 2 |
| Inner conductor (audio) [mm²] | 0,14 |
| Inner conductor Ø (audio) [mm] | 0,42 |
| AWG (audio) | 26 |
| Shielding | Copper spiral shielding + filler strand, tin-plated (0.22 mm²) |
| Shielding factor [%] | 95 |
| Copper strands (audio) | 18 |
| Copper strand Ø (audio) [mm] | 0,10 |
| Conductor insulation material | PE |
| Conductor insulation Ø [mm] | 0,90 |
| Weight per 1 m [g] | 13 |
| UV-resistant | yes |
| Fire load per m [kWh] | 0,08 |
| Style variant | round |
| Packing | 100 m spool |
| Temperature min. [°C] | -30 |
| Temperature max. [°C] | 70 |
| Width [mm] | 2,6 |
| Height [mm] | 2,6 |
| Capac. cond./cond. per 1 m (audio) [pF] | 65 |
| Capacity wire/wire at 1 ft. (audio) [pF] | 19,812 |
| Capac. cond./shield. per 1 m (audio) [pF] | 120 |
| Capacity wire/electic screen at 1 ft. (audio) [pF] | 36,576 |
| Insulation resist. per 1 km [GΩ] | 1 |
| Insulation resist. per 1000 feet [GΩ] | 0,3048 |
| Insulation resist. per 1 km (audio) [GΩ] | 1 |
| Insulation resist. per 1000 feet (audio) [GΩ] | 0,3048 |
| Conductor resistance per 1 km [Ω] | 148 |
| Conductor resistance per 1000 ft. [Ω] | 45,1104 |
| Shield. resistance per 1 km [Ω] | 30 |
| Shield. resistance per 1000 ft. [Ω] | 9,144 |
| BPVo-Euroclass | Fca |
