Overview

The TASCAM Sonicview 16 is a professional-grade 16-channel digital mixing console built for engineers who need speed, clarity, and complete control. Featuring dual 7” touchscreens, motorised 100 mm faders, intuitive user layers, and ultra-low-latency DSP, the Sonicview 16 gives you seamless navigation of channels, mixes, and settings with zero compromise on sound quality.

Perfect for:

• Live sound reinforcement

• Churches & venues

• Studio production

• Streaming & broadcast

• Corporate AV setups

• Touring rigs and rental stock

With 32-bit/96 kHz audio, integrated USB audio interface, full recall, and optional Dante networking, the Sonicview 16 is built for today’s hybrid workflows.

Key Features

• 16 onboard mic/line inputs with professional TASCAM preamps

• Ultra-low-noise, high-resolution 32-bit / 96 kHz processing

• Motorised 100 mm faders with smooth tactile control

• Dual 7″ colour touchscreens with Channel Strip View

• 1-Touch Navigation for EQ, dynamics, sends & more

• Built-in 32-in/32-out USB audio interface

• 16 Flex Output buses for monitors, aux, subs, matrix or recordings

• Powerful DSP including EQ, compression, gating, FX & latency-free monitoring

• Expandable with Dante card (optional) for networked audio systems

• Scene recall, user profiles, and custom fader layers

• Rugged metal chassis ideal for tours, installs, and mobile rigs

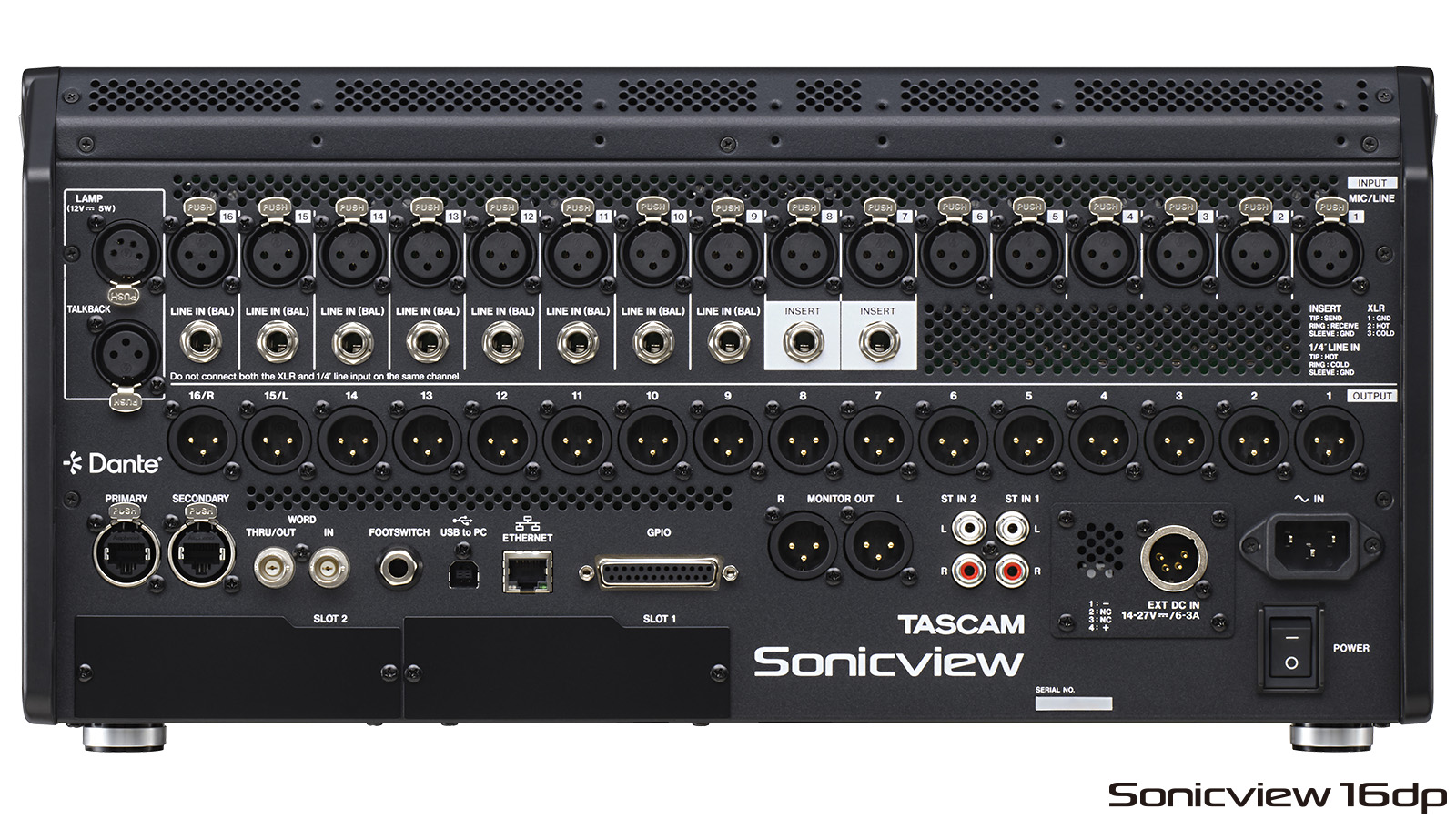

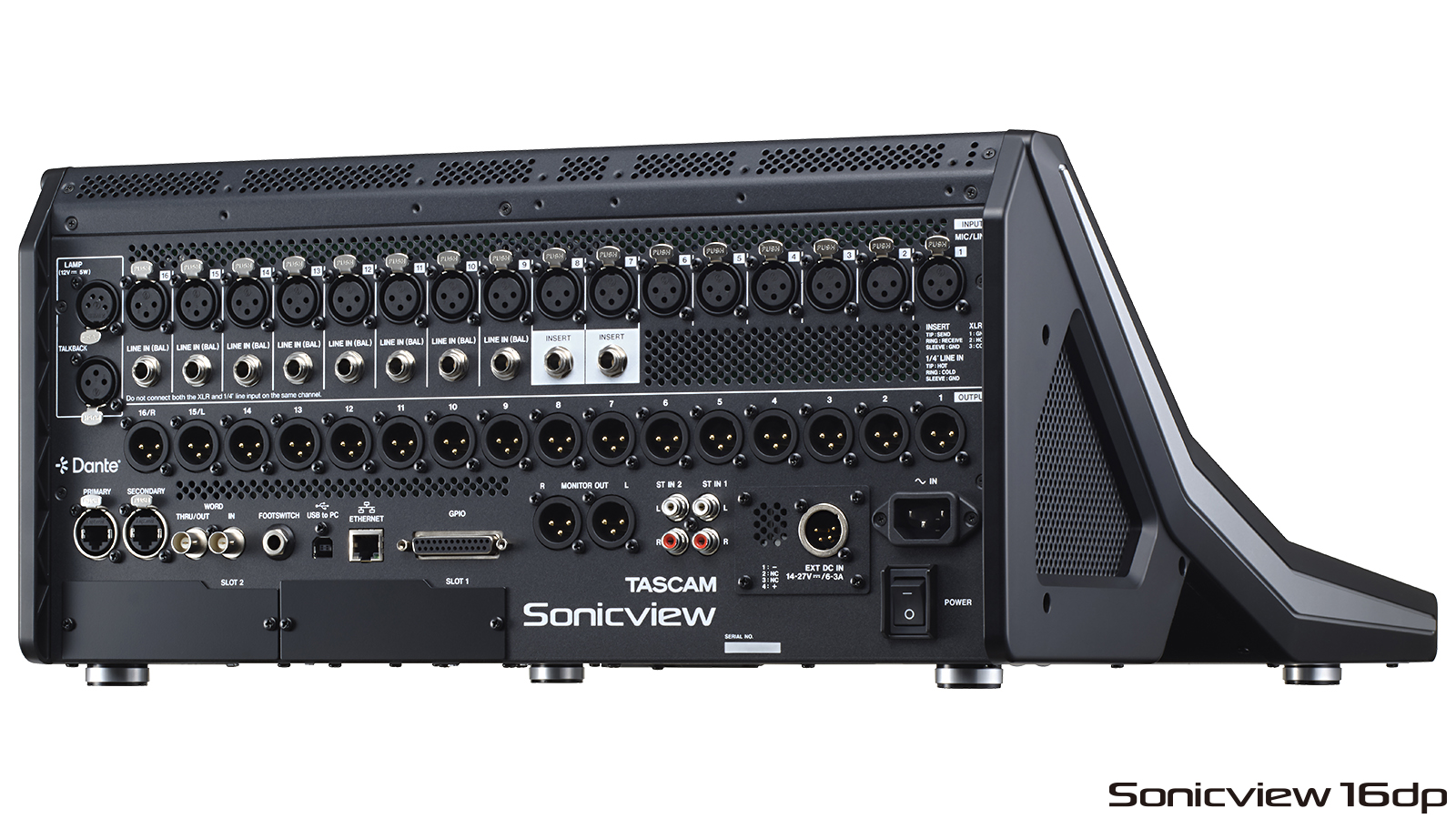

I/O & Connectivity

• 16 × XLR/TRS mic/line inputs

• 8 × XLR line outputs

• 2 × stereo line inputs

• AES/EBU digital output

• Word Clock In/Out

• USB audio interface (32×32)

• USB record/play port for flash drives

• Expansion slot for Dante

• Ethernet for remote control software

• Footswitch input

Perfect For NZ Installations & AV Workflows

The Sonicview 16 is an ideal mixer for:

• Churches

• Schools

• Corporate AV

• Portable PA systems

• Streaming studios

• Theatre

• Hire & production companies

It’s reliable, fast, and built for real-world use — with a familiar workflow that reduces training time for volunteers and technicians.

Technical Specifications

Channels: 16 mic/line + 2 stereo
Sampling Rate: 96 kHz
Bit Depth: 32-bit internal processing
Faders: 17 × 100 mm motorised
Touchscreens: Dual 7” colour
USB Interface: 32-in / 32-out
Outputs: 8 XLR + 16 flexible buses
Dimensions: Approx. 602 × 574 × 192 mm
Weight: Approx. 12.5 kg
