Overview

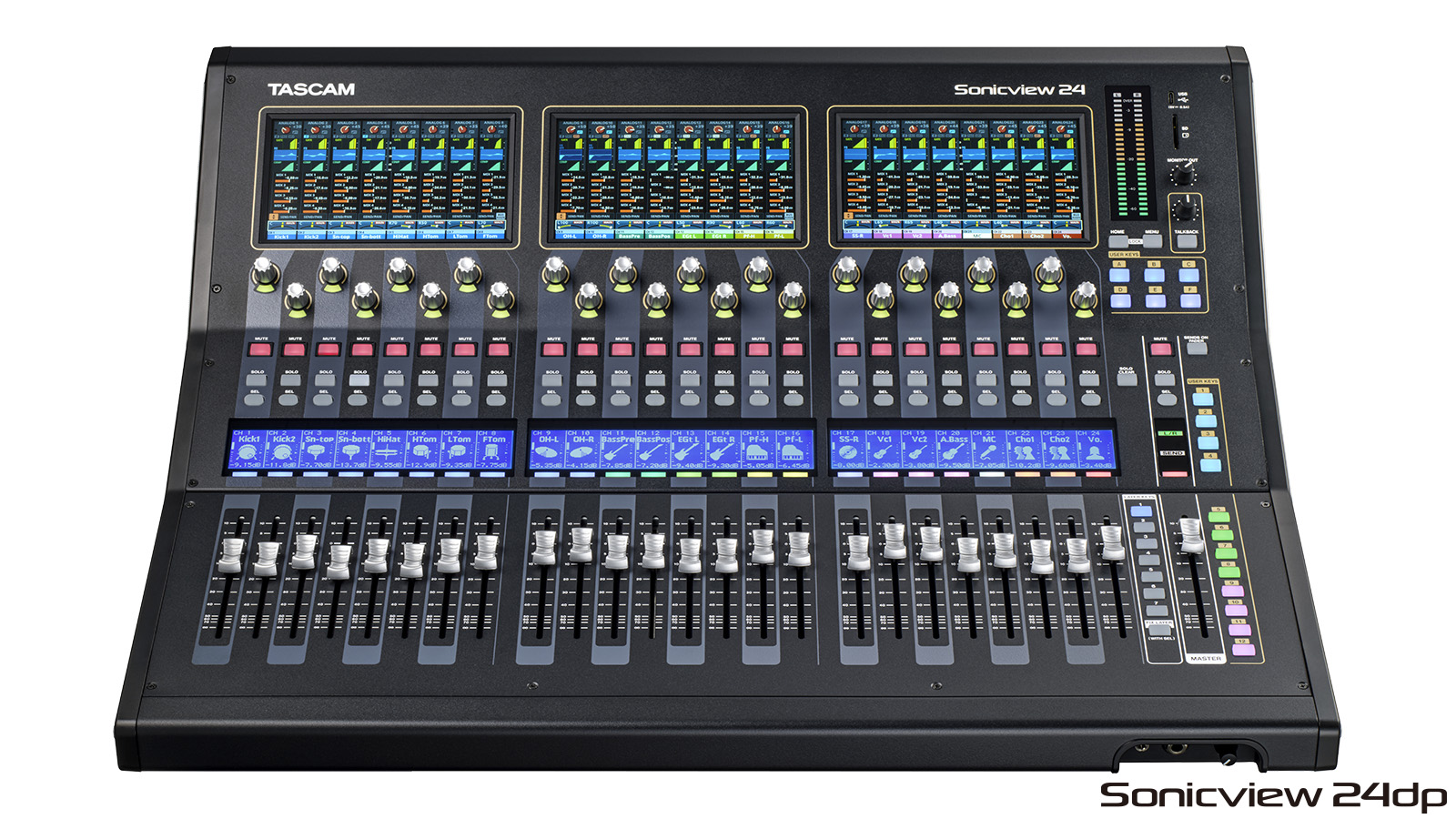

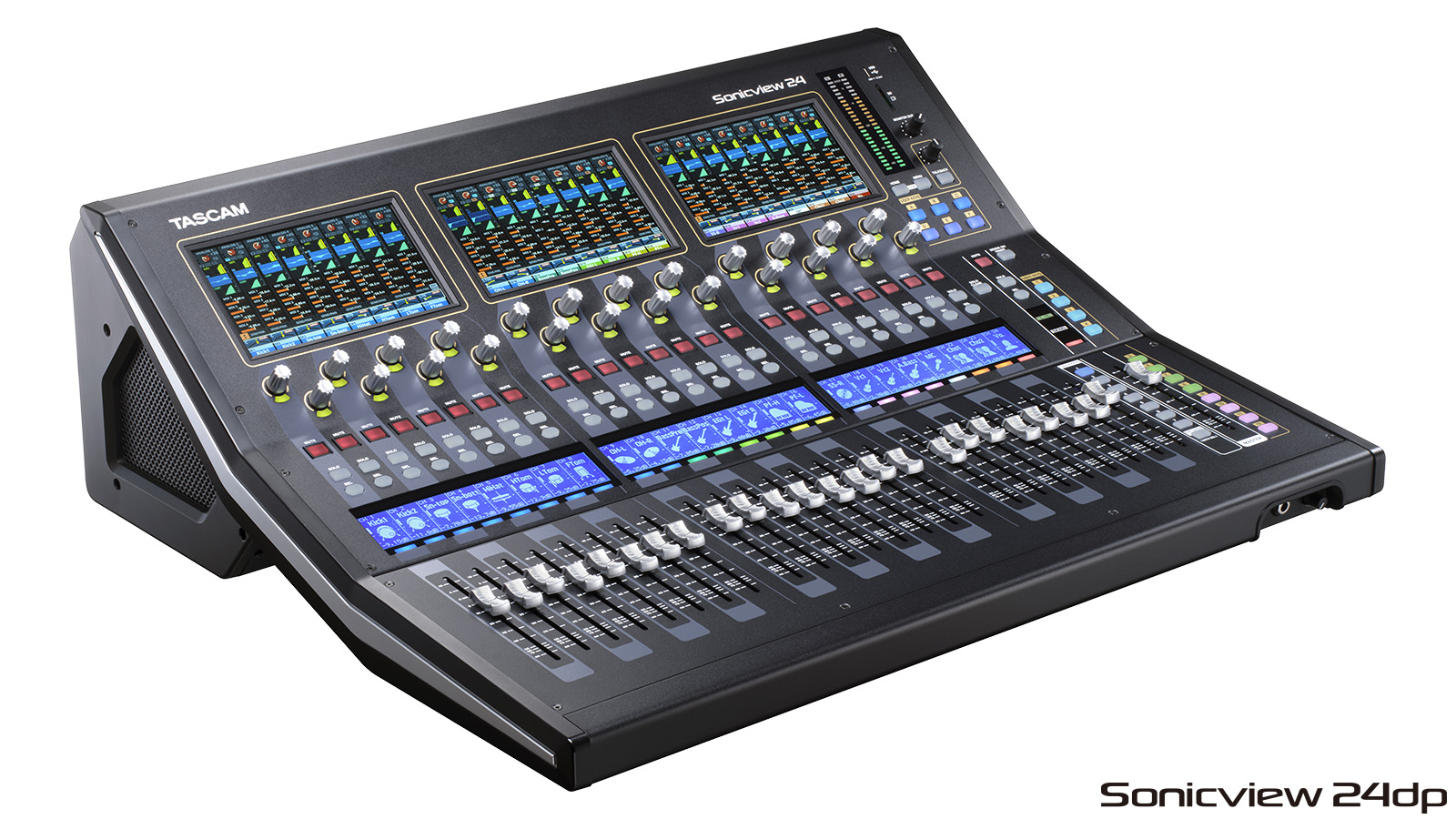

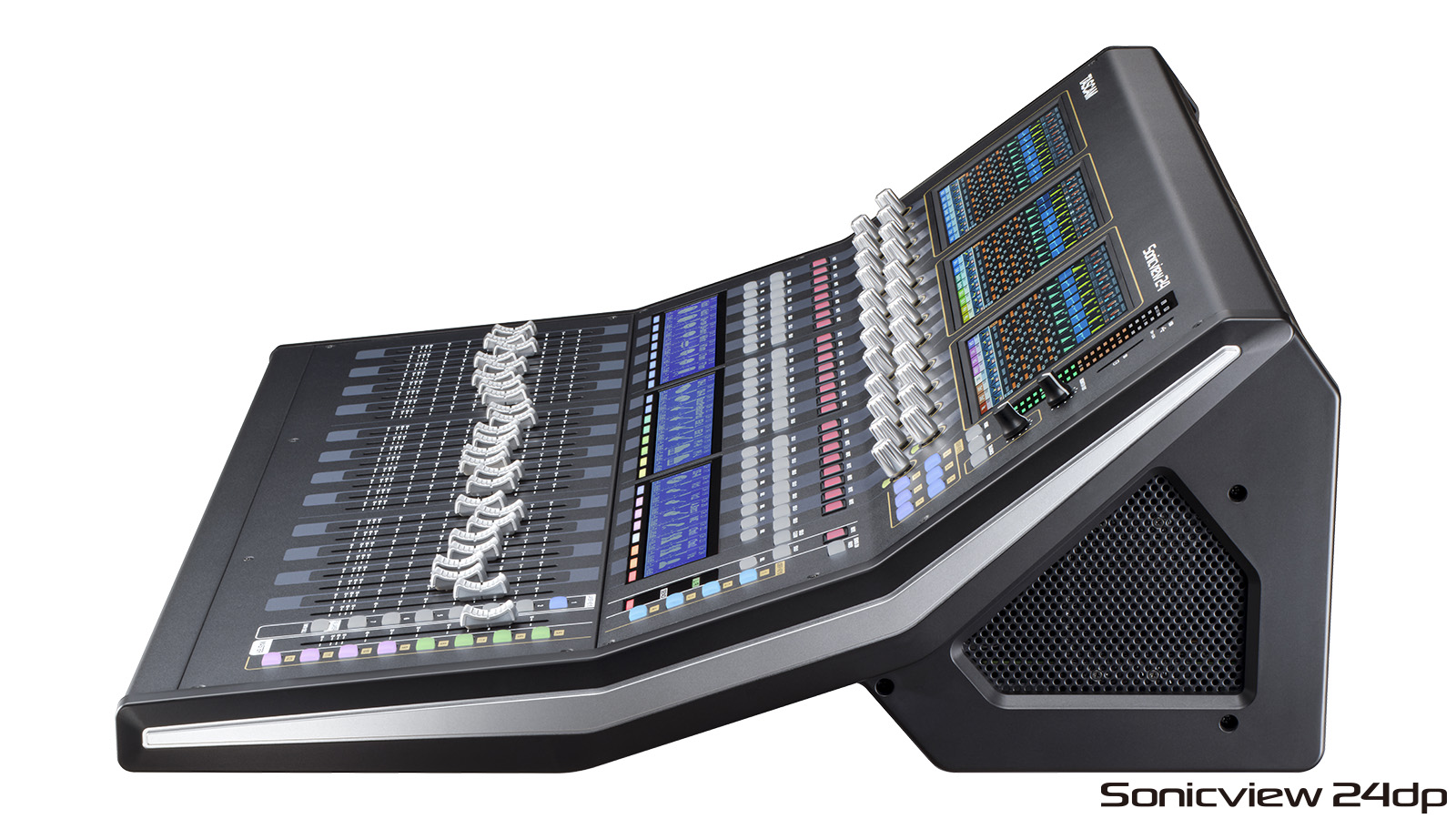

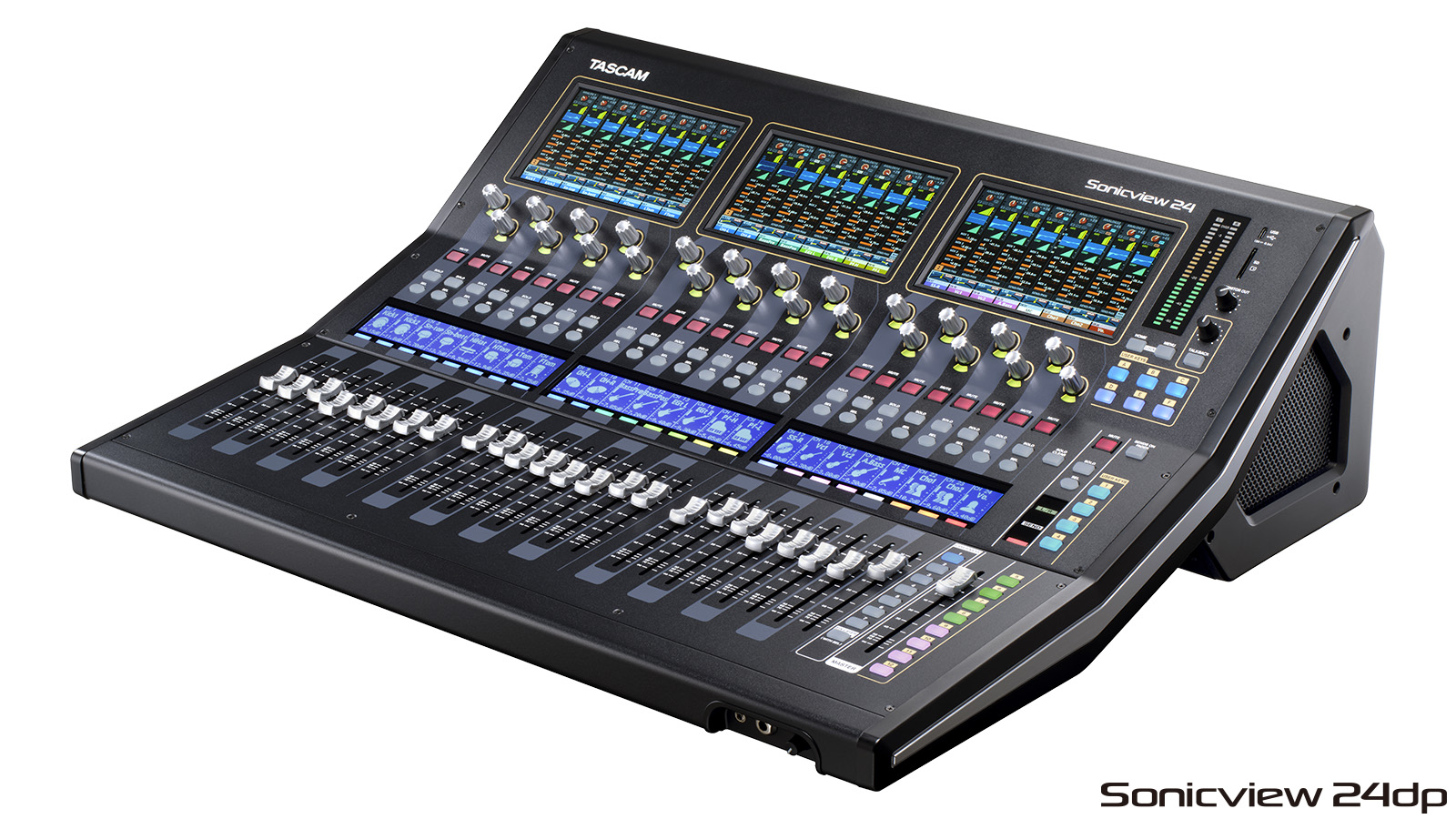

The TASCAM Sonicview 24 is a professional 24-channel digital mixing console built for engineers who demand speed, reliability, and pristine audio quality. With 24 mic/line inputs, dual 7” touchscreens, motorised 100 mm faders, and a highly intuitive workflow, the Sonicview 24 makes complex productions fast and effortless.

Featuring high-resolution 32-bit / 96 kHz audio, deep DSP processing, customisable fader layers, and built-in 32×32 USB audio, this mixer is ideal for:

• Live sound reinforcement

• Churches & venues

• Corporate AV / events

• Broadcast & streaming

• Theatre and touring

• Studio production and hybrid setups

Whether you’re mixing FOH, streaming a service, or running a multi-monitor stage setup, Sonicview 24 delivers professional control and consistent results.

Key Features

• 24 × mic/line preamps with studio-grade clarity

• 32-bit / 96 kHz internal processing for ultra-low-noise operation

• Dual 7” colour touchscreens with TASCAM’s fast Channel Strip View

• 25 × 100 mm motorised faders (24 channels + master)

• 1-Touch Access to EQ, compression, sends, snapshots & routing

• Powerful onboard DSP with EQ, gates, compression, FX & routing tools

• 16 Flex Output buses (use as aux, matrix, subgroup, etc.)

• Built-in 32×32 USB audio interface for DAW recording/virtual soundcheck

• Optional Dante expansion for network audio systems

• Complete scene recall & user profiles

• Rugged touring-grade chassis ideal for production companies

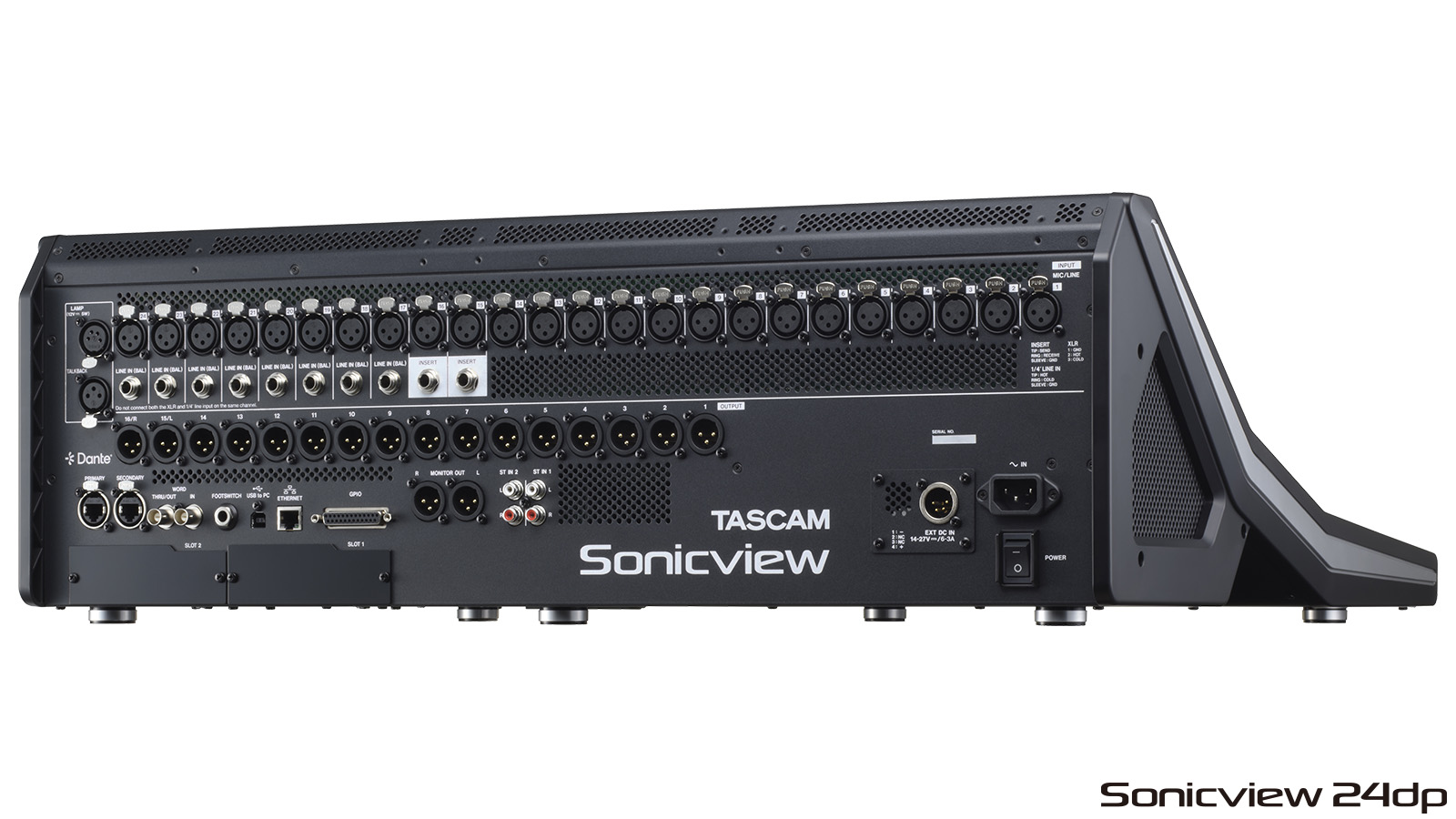

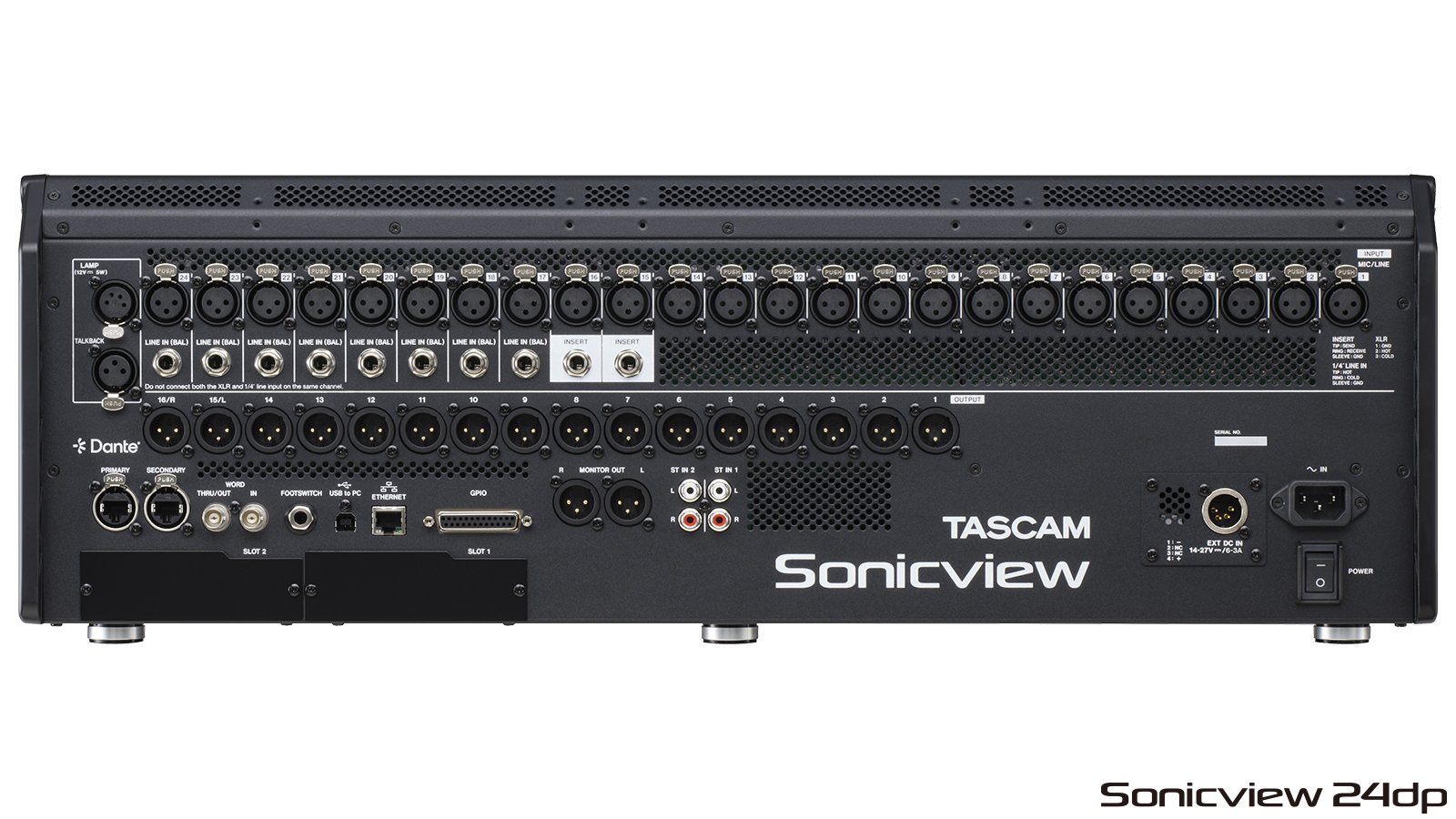

Connectivity & I/O

• 24 × XLR/TRS mic/line inputs

• 2 × stereo line inputs

• 12 × XLR line outputs

• AES/EBU output

• Word Clock In/Out

• USB 32×32 multichannel audio interface

• USB stick recording/playback

• Footswitch input

• Ethernet for remote control app

• Expansion slot for Dante card

Why Choose Sonicview 24?

• Perfect balance of input count, workflow speed, and audio quality

• Ideal for NZ venues, schools, churches & touring productions

• Reliable TASCAM build quality for rental/hire fleets

• Powerful enough for FOH + monitors + broadcast feeds simultaneously

Technical Specifications

Input Channels: 24 mic/line + 2 stereo
Processing: 32-bit FP / 96 kHz
Faders: 25 × 100 mm motorised
Touchscreens: 2 × 7” colour
USB Audio: 32-in / 32-out
Output Buses: 16 Flex Outputs
Dimensions: Approx. 732 × 574 × 192 mm
Weight: Approx. 15.2 kg
