The SoundTools CAT Box 8 offers both a male XLR and a female XLR on each of the four channels allowing the CAT Box 8 to be used for inputs, outputs, or a combination. Minimize the number of cables required by running up to four channels of analog audio, DMX, AES3, or COM lines through a single shielded CAT cable. The disconnectable CAT Box stage boxes can be daisy-chained and used in multiple configurations to build the optimum modular snake system.
VERSATILE SETUP
Build the perfect stage snake system around the versatile and durable SoundTools CAT Box 8. The SoundTools CAT Box 8 offers both a male XLR and a female XLR on each of the four channels allowing the CAT Box 8 to be used for inputs, outputs, or a combination. Minimize the number of cables required by running up to four channels of analog audio, DMX, AES3, or COM lines through a single shielded CAT cable. The disconnectable CAT Box stage boxes can be daisy-chained and used in multiple configurations to build the optimum modular snake system.
WORKS FOR YOU

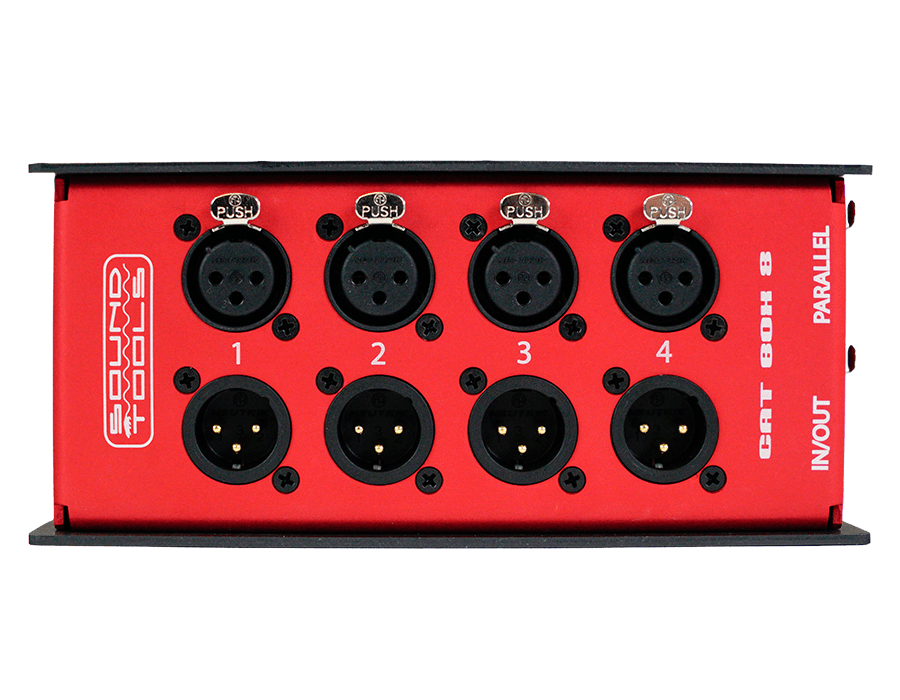

The SoundTools CAT Box offers four XLR female and four XLR male connectors, and an etherCON input and etherCON parallel output. This all-analog, fully passive stage box can carry up to four channels or analog mic level, analog line level, AES3, DMX, or intercom signals.
Not all disconnects are created equally. Because of its design, the SoundTools CAT Box 8 can be used in a multitude of applications.
- Send multiple signal formats down a single shielded CAT cable
- Use as a low-cost hard-wire split
- Daisy-chain units and drop the same channels in multiple locations
- Connect two male or two female CAT Boxes together to create M-M or F-F adaptors
- Remove an internal ribbon cable jumper to convert a CAT Box 8 into two CAT Box 4 units
FUNCTIONAL
Not only is the SoundTools CAT Box 8 designed to work flawlessly, but we created it to look great too. SoundTools CAT Boxes are constructed with anodized machined aluminum and finished with stainless steel screws, so they are rust-resistant and rugged enough to handle life on stage. Stylish black and red coloring is finished with a laser-etched SoundTools logo. Our clearly-labeled inputs and outputs simplify set up and tear down, making this the stage drop box you’ll be reaching for again and again.
SoundTools is founded and run by audio professionals just like you. We know how much your happiness depends on high-quality tools that work every time. The SoundTools CAT Box 8 is covered by our Happy Human Warranty. If you’re not happy with it within the first year, you can return it for a refund. At any time after that, if it fails, contact us and we’ll send you a replacement.
Function
Attach your shielded CAT5e/6/7 cable to the input or thru etherCON connection on the end of the CAT Box 8. Attach either a second CAT Box or another SoundTools Analog Audio over CAT 5 product to the other end of the cable. Insert your XLR cable ends to channels 1, 2, 3, or 4. Now you can run up to four lines of audio down a shielded CAT(5,6,7) cable.
Pair with an additional CAT Rack, CAT Box, CAT Rack, or WallCAT to send and receive four lines of balanced audio.
DIMENSIONS
- Height x Width x Depth:
- 1.75 in (45mm) x 6.75 in (170mm) x
- 3 in (77mm)
- Weight: 12.8 oz (362 G)
SYSTEM REQUIREMENTS
- *Requires shielded cable for full functionality
- Analog audio (including phantom power!)
- DMX signals
- AES3 compatable
- Intercom
TECHNICAL SPECIFICATIONS
- 4 channels of balanced analog audio over shielded CAT5e, CAT6 or CAT7
- Supports phantom power on any or all channels
- XLR male and female on each of the four channels
- Removable internal jumper allows conversion to a dual CAT Box 4 (8 Channels)
- Compatible with AES3, DMX, COM, and other 3-pin XLR based signals
DOCUMENTATION
PACKAGE CONTENTS
- CAT Box 8
- Rubber foot pad
- User documentation
WARRANTY INFORMATION
- Lifetime Happy Human Warranty
PART NUMBER
- Male: CB851
