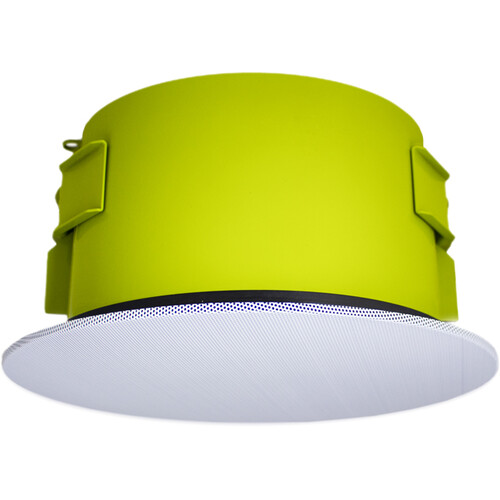

Soundtube 6.5″ poly cone with coaxial 1″ tweeter, SpeedWings™ rapid install. White

Description

6.5″ In-Ceiling Speaker in White

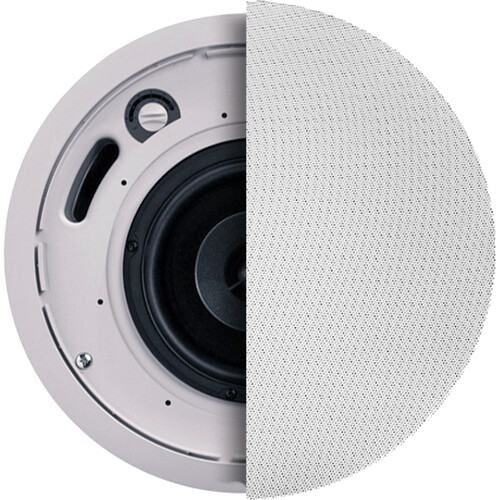

One 6.5 inch (165 mm) polypropylene woofer with rubber surround and one 1.0 inch (25.4 mm) silk dome tweeter. BroadBeam Ring™ technology for mid-range clarity and smooth off axis performance. Easy-access six-position tap switch for 25/70.7/100-volt and transformer bypass settings allows for easy ordering, stocking and installation. Tuned port on baffle for added musicality and bass response down to 64 Hz (-10 dB). Reduced amplification costs and maximum efficiency of 85.0 dB sensitivity, 16 ohm impedance. Incorporates a painted steel magnetic seamless grille for lasting durability and refined aesthetics. Adaptable to material thicknesses ranging from 0.035 inch (0.9 mm) to 1.6 inch (40.6 mm). UL 1480, UL 2043 and EN54-24 listed. IP-Rating: IPX3.
Available in white only.

Manufacturer’s Category: CM-BGM Background Music In-Ceiling
Shipping Weight: 10.4 lbs / 4.72 kg
Carton Height: 8 in / 203.2 mm
Carton Length: 13.25 in / 336.55 mm
Carton Width: 13.25 in / 336.55 mm
Certifications: CE, EN54, RoHS, UL1480, UL2043
Enclosure Properties: ABS Glass Fibre Reinforced, Injection Moulded, Ported
Enclosure Volume: 350 cu in / 5735.47 cu cm
Included Accessories: Conduit Clamp, Grille, Paint Mask,
Optional Accessories: White Grille (GRL-CM6/8EZ-II-WH)|Tile Bridge (AC-CMEZ6/8-TB)|Pre-Construction Bracket (AC-CMEZ6/8-PCB)|Junction Box (AC-CM-EZ-JBOX)
Source Inputs: 4 Pin Ceramic Terminal
Backcan Diameter: 9.67 in / 245.6 mm
Backcan Height: 5.75 in / 146.1 mm
Coverage Angle (±6dB @ 2kHz): 100°
Crossover Frequency: 4.0 kHz
Cutout Width/Diameter: 10.5 in / 266.7 mm
Directivity Factor (Q) (Averaged 100Hz – 10kHz, @ 2kHz): 5.9 and 8.0
Directivity Index (DI) dB (Averaged 100Hz – 10kHz, @ 2kHz): 4.9dB and 6.3dB
Frequency Response (± 10 dB): 50 Hz – 22 kHz
Frequency Response (± 3 dB): 54 Hz – 20 kHz
Grille Properties: Friction-Fit, Magnetic, Micro-Flange, White, Paintable, Painted, Steel
Low Frequency Voice Coil: 1 in / 25.4 mm
Low Pass Crossover: 12 dB per octave 2nd order
Max. Ceiling Thickness: 1.6 in / 40.6 mm
Max. Continuous Power RMS: 50W
Max. Program Power: 100 W
Minimum Impedance (O Ohms): 16 O
Minimum Ceiling Thickness: 0.04 in / 0.9 mm
Network Type: High Pass: 6 dB per octave 1st order
Nominal Impedance (O Ohms): 16 O
Tweeter Driver: 1″ Silk Dome w/ BroadBeam Ring®
Woofer Driver: 6.5″ Polypropylene Cone w/ Butyl Rubber Surround
Sensitivity dB @ 1W/1M: 84.5 dB
Sensitivity dB @ 2.83V/1M: 81.4 dB
Tap Selector: Rotary Switch
Transformer Taps (25V/70.0V/100V): 4W/32W/32W
Visible Diameter: 11.75 in / 298.5 mm
Visible Height: 0.34 in / 8.6 mm
