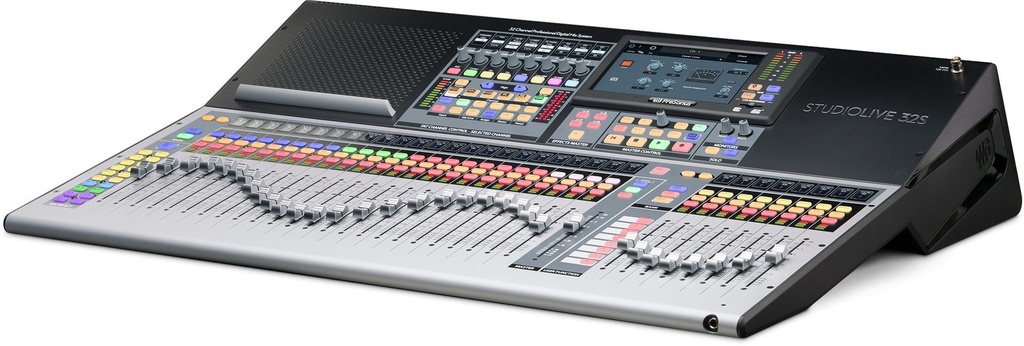

StudioLive 32S Digital Mixer

Limited Time Free NSB16.8 Stagebox
Description
Designed for live sound reinforcement, live recording, and studio recording applications, the PreSonus StudioLive 32S is a Series III S 40-channel digital mixing console, recorder, and audio interface in a single enclosure. The mixer features an integrated hardware and software system with a full-colour touchscreen, 33 touch-sensitive, motorised faders and 32 recallable XMAX preamps. The powerful dual-core FLEX DSP engine supercharges the mixer with Fat Channel vintage-style EQs and compressors on every channel, plus a four-slot FLEX FX processor that can run heralded digital reverbs and delays. Streamline your workflow with recallable scene presets, virtual sound cheque, and the supplied software library, which empowers you with remote control from a computer or iPad, remote monitor mixing using a mobile device, and all the software you need to track, edit, mix, and distribute your music.
The StudioLive 32S boasts 16 XLR mic inputs and 16 mic/line inputs via XLR-1/4″ combo jacks. Additional inputs include four 1/4″ aux inputs and a dedicated XLR talkback mic input with phantom power. The mixer provides a balanced XLR mono output, stereo XLR main outputs, 16 analogue FlexMix outputs (12 XLR, four 1/4″ TRS), a pair of 1/4″ monitor outputs, and a 1/4″ headphone port. A digital AES/EBU output of the main mix is available via a rear-panel XLR socket. Additionally, unbalanced stereo RCA tape inputs and outputs are on hand for hooking up a house music source and a separate stereo recorder. Alternatively, you can wirelessly stream music from a mobile device to the mixer’s built-in Bluetooth receiver. Record 40 channels and the main stereo mix to a Class 10 U3 SD card (available separately) via the onboard 34-track SD recorder, or stream 128 channels (64 in each direction) over USB 2.0 to and from your computer. You can even record redundantly to an SD card and a USB host computer at the same time. Take advantage of the built-in AVB networking capabilities for flexible system expansion, digital patching between networked devices, and more.
Features
At a Glance

40 mixing channels
26 buses
32 recallable XMAX preamps via 16 XLR inputs and 16 XLR-1/4″ combo inputs
33 touch-sensitive motorised faders
Dynamic Fat Channel layout allows access to every Fat Channel parameter and aux send via eight Fat Channel encoders with scribble strips
Dual-core FLEX DSP mix engine
286 processors in various form factors
Built-in Bluetooth receiver for wireless music streaming

Powerful Mixing Features

Expandable plug-in processing with ten vintage AEQ and classic compression options on every input channel and bus
Input delay, high-pass filter, gate, compressor, limiter, and parametric 4-band AEQ per input channel
High-pass filter, compressor, limiter, output delay, and parametric 6-band AEQ per bus
FLEX FX multi-effects processor with four slots to load legendary reverb emulations anddelays with four dedicated effects buses
16 FlexMixes (aux mixes, subgroups, or matrix mixes) with 12 XLR and four 1/4″ TRS mix output jacks
Four static subgroup buses with 1/4″ outputs
Four designated effects buses
24 DCAs to control groups of channels
True virtual soundcheck simplifies mix configuration
Enhanced scene management with scenes organised into projects, scene lock, and channel safe
Password-protected user profiles enable restricting access to specific features
Channel scribble strips and input metering

Audio Networking

Built-in AVB networking allows the creation of a complete ecosystem with PreSonus NSB stage boxes, EarMix 16M personal monitor mixers, and the SW5E AVB switch (all available separately)
Connect NSB-series stage boxes to add remote analogue inputs and outputs wherever required
Add EarMix 16M personal monitor mixers to give your musicians their own customisable 16-channel monitor mixes
Network multiple StudioLive Series III mixers
Route audio to and from any device on the AVB network, thanks to the flexibility of digital patching

Multichannel Recording

Record 34 tracks (32 channels plus a stereo mix) without a computer via the onboard SD card recorder
Stream up to 128 channels (64 in, 64 out) of audio to a Mac or Windows computer via USB 2.0
Record to SD card, via USB, or both simultaneously for safe, redundant live recording
Record with PreSonus Capture, PreSonus Studio One, or any recording software that supports ASIO or Core Audio

DAW Control

Advanced Studio One control integration
MCU emulation mode optimised for Logic Pro
HUI emulation mode optimised for Pro Tools

Complete Software Bundle

UC Surface touch-control for Mac, Windows, and iPad
Capture recording app with virtual soundcheck for Mac and Windows
Studio One Artist DAW for recording, mixing, mastering, sharing, and collaborating on Mac and Windows
QMix-UC personal monitor mix control for iPhone, iPod touch, and Android

Specifications

Software System Requirements
Mac OS X 10.8.5 or Later (64-Bit)Intel Core 2 Duo CPU (Intel Core i3 or Faster Recommended)4 GB RAM (8 GB or More Recommended)Internal or External 7200 rpm Storage Drive with 30 GB Free Disk Space1366 x 768 Minimum Screen ResolutionAvailable USB 2.0 PortInternet ConnectionWindows 7 SP1 Plus Platform Update, Windows 8.1, or Windows 10 (All 32-/64-Bit)Intel Core 2 Duo CPU (Intel Core i3 or Faster Recommended)4 GB RAM (8 GB or More Recommended)Internal or External 7200 rpm Storage Drive with 30 GB Free Disk Space1366 x 768 Minimum Screen ResolutionAvailable USB 2.0 PortInternet ConnectioniOS 10 or LateriPad Pro, iPad Air 2, iPad Air, iPad mini 4, iPad mini with Retina Display, iPad (4th Generation), iPad mini, or iPad (3rd Generation)Android 5.0 (Lollipop) or LaterAndroid Smartphone (QMix-UC)Android Tablet (8″) with 1024 x 768 Resolution (UC Surface)Minimum System Requirements for UC Surface, QMix-UC, and Studio One

Channels
Mixing Channels: 40Analogue Input Channels: 32

Buses
26

Faders
33

Mic/Line Inputs
16 x 3-Pin XLR Female Mic Input16 x XLR-1/4″ TRS Mic/Line Input

Talkback Input
1 x 3-Pin XLR Female

Main/Monitor Out
2 x 3-Pin XLR Male Main Output1 x 3-Pin XLR Male Mono Sum Output2 x 1/4″ TRS Monitor Output1 x 1/4″ TRS Headphone Output4 x 1/4″ TRS Sub Output

AUX Sends
12 x 3-Pin XLR Male FlexMix Aux / Subgroup / Matrix Output4 x 1/4″ TRS FlexMix Aux / Subgroup / Matrix Output

AUX Returns
4 x 1/4″ TRS (Two Stereo Pairs)

Inserts
None

Digital I/O Options
1 x RJ45 for AVB I/O

2 Trk Master I/O
2 x RCA Coaxial Tape Inputs (One Stereo Pair)2 x RCA Coaxial Tape Outputs (One Stereo Pair)

Stereo Digital I/O
1 x 3-Pin XLR Stereo AES/EBU Output

Word Clock I/O
None

Host Connection
1 x USB 2.0 Type-B

MIDI Ports
None

Control Ports
1 x RJ45 GbE

Lamp Socket
1 x BNC (12 V)

Bluetooth
Built-In Bluetooth Receiver

Bluetooth Version
4.1

AEQ Section
Channel: 4-Band EqualiserOutputs: 6-Band Equalzer

Solo/Mute
Solo and Mute per Channel

Phantom Power
48 VDC (±2 VDC), Switchable per Channel

Internal Signal Processing
Dual-Core FLEX DSP Mix Engine

Sampling Rate
44.1 kHz or 48 kHz

Bit Depth
Internal Processing: 32-Bit Floating PointAD-DA: 24-Bit

Reference Level
0 dBFS = +18 dBu

Latency
1.9 ms (Local Routing, Analogue In to Analogue Out, All Processing Active)

Jitter
<20 ps RMS (20 Hz to 20 kHz)

Jitter Attenuation
>60 dB (1 ns In, 1 ps Out)

Crosstalk
Input to Output: -90 dB (+4 dBu Reference, 20 Hz to 20 kHz, Unweighted)Adjacent Channels: -87 dB (+4 dBu Reference, 20 Hz to 20 kHz, Unweighted)

Dynamic Range
ADC and DAC: 115 dB (A-Weighted, 48 kHz)

Frequency Response
Mic/Line Inputs to Main Output at Unity Gain: 20 Hz to 20 kHz (±0.5 dBu)Headphone Output: 20 Hz to 20 kHz (±0.5 dB)

Maximum Input Level
Mic: +12 dBuLine: +18 dBuTape: +12 dBu (±0.5 dBu)

Maximum Output Level
XLR: +24 dBu (±0.5 dBu)Line: +18 dBu (±0.5 dBu)Tape: +18 dBu (±0.5 dBu)Headphone: 100 mW per Channel at 60-Ohm Load

Gain Control Range
Mic Preamp: 0 to 60 dB (±1 dB)

Input Impedance
Mic: 1 kOhmLine: 10 kOhms

Output Impedance
XLR: 100 OhmsLine: 100 OhmsTape: 100 Ohms

THD
Mic/Line Input to Main Output: <0.005% (+4 dBu, 20 Hz to 20 kHz, Unity Gain, Unweighted)

THD + N
Headphone Output: 0.01% (1 kHz, Maximum Gain, 20 Hz Bandwidth, Unweighted)

Signal-to-Noise Ratio
Mic/Line Input to Main Output: 94 dB (+4 dBu Reference, 20 kHz Bandwidth, Unity Gain, A-Weighted)Headphone Output: 96 dB (1 kHz, Maximum Gain, 20 Hz Bandwidth, Unweighted)

Common Mode Rejection Ratio
Mic Input: 65 dB (1 kHz at Unity Gain)

Ambient Operating Temperature
32 to 104°F / 0 to 40°C

Power Requirements
90 to 230 VAC (±10%), 50/60 Hz, 85 W

Dimensions (W x D x H)
32.4 x 23.0 x 6.5″ / 82.2 x 58.3 x 16.5 cm

Weight
37.2 lb / 16.9 kg
