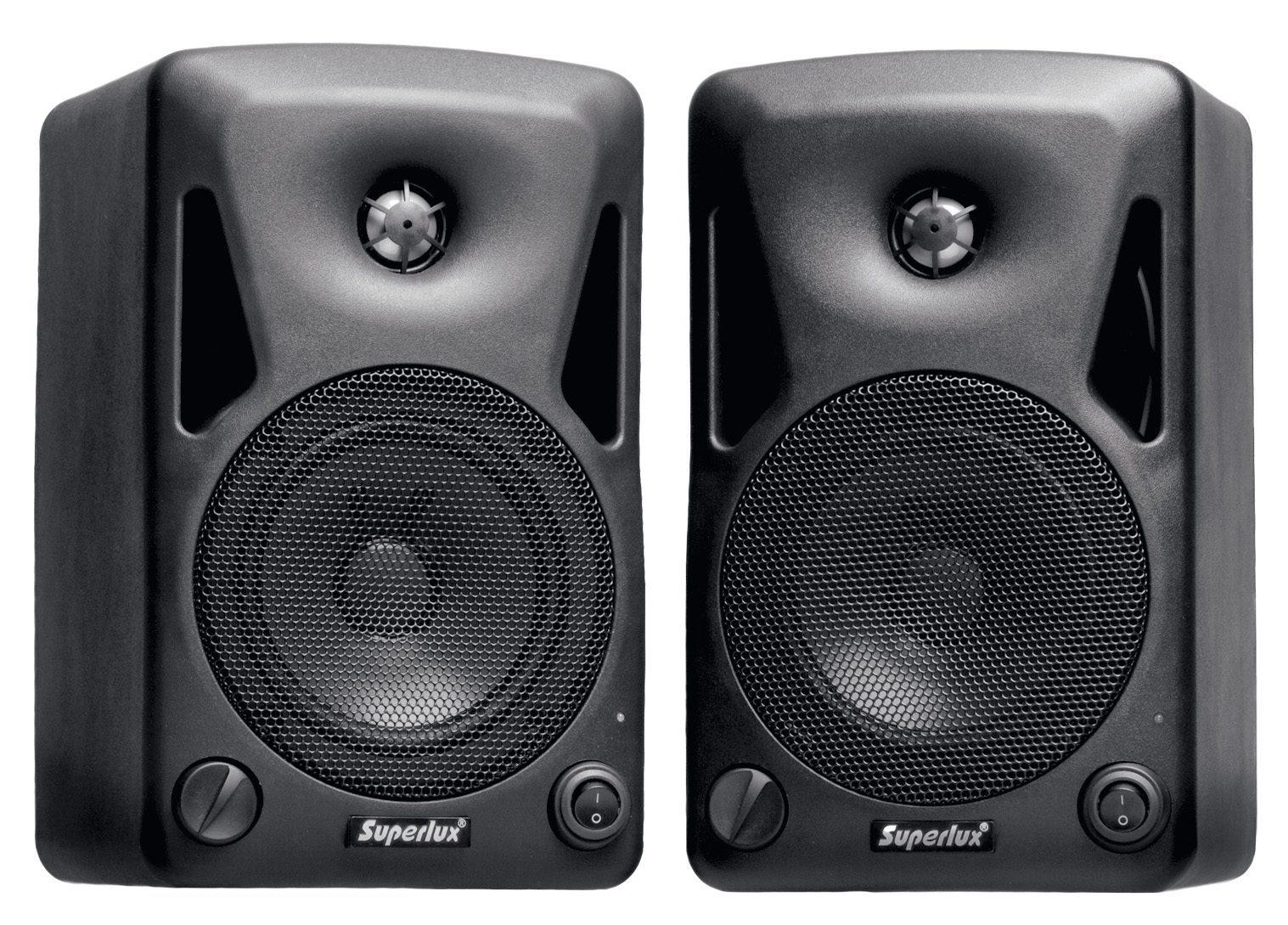

The Superlux BES5A is a very compact bi-amplified active monitor speaker. Its bass reflex system delivers outstanding monitoring precision for digital or analog production in stereo or surround formats, with performance comparable to much larger systems. Advanced driver and enclosure design are carefully matched with superior amplifier and electronic circuitry. Bass response has been widened down to 50 Hz while distortion is substantially lower. The BES5A’s excellent directivity characteristics and accurate imaging together with its compact size and flexible connectivity make the BES5A the perfect monitoring tool for a wide range of applications.
• Advanced bi-amplified power, 40 W for LF and 30 W for HF
• 5″ cone woofer and 1″ titanium dome high frequency drivers
• Integrated die-cast heat-sink and back panel ensures the ultimate
efficient cooling
• XLR3F balanced input and 1/4″ unbalanced input.
• Volume control and TRIM Control for High and Low
• Magnetic shielding

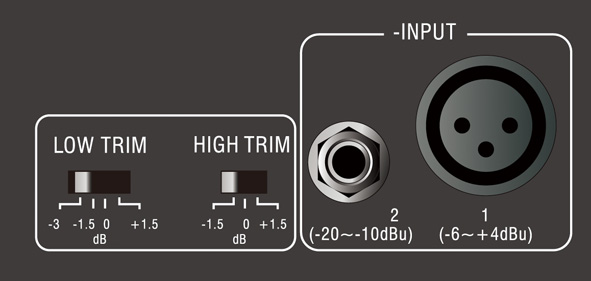

Control and connecting panel
Applications
• Project Studio
• Near Field Monitoring
• Computer Recording
• Home Theater
Type: Bi-amp 5″ 2-way active speaker
Crossover Frequency: 2.5 kHz, 24 dB/oct
Frequency Response (-10 dB): 50 Hz-22 kHz
Max. SPL: 101 dB SPL
Magnetic Shielding: Yes
Drivers LF/ HF: 5″ LF / 1″ titanium dome HF
Enclosure Type/ Material: Bassreflex, PP
Power Amp LF/ HF: 40 W / 30 W
S/N Ratio: ≥ 93 dB
Input Sensitivity, VR @center:
XLR3F: + 4 dBu;
6.3 mm (1/4″): -10 dBu
Connectors: XLR3F & 6.3 mm (1/4″)
Impedance: 10k Ω
Controls:
Volume at the front
Power on / off at the front
TRIM for HF: -1.5 / 0 / +1.5 dB@ 15 kHz
TRIM for LF: -1.5 / 0 / +1.5 dB@ 60 Hz
Indicators: Green for power and red for clipping
Power Consumption: 60 W
AC Power Requirements, depends on region: 115V/60Hz; 230V/50Hz
Dimensions (H×W×D): 287×178×217 mm(11.3×7×8.5 in.)
Net Weight (1 speaker): 6.4 kg (14.1 lbs)
Shipping Weight (2 speakers): 16 kg (35.2 lbs)
