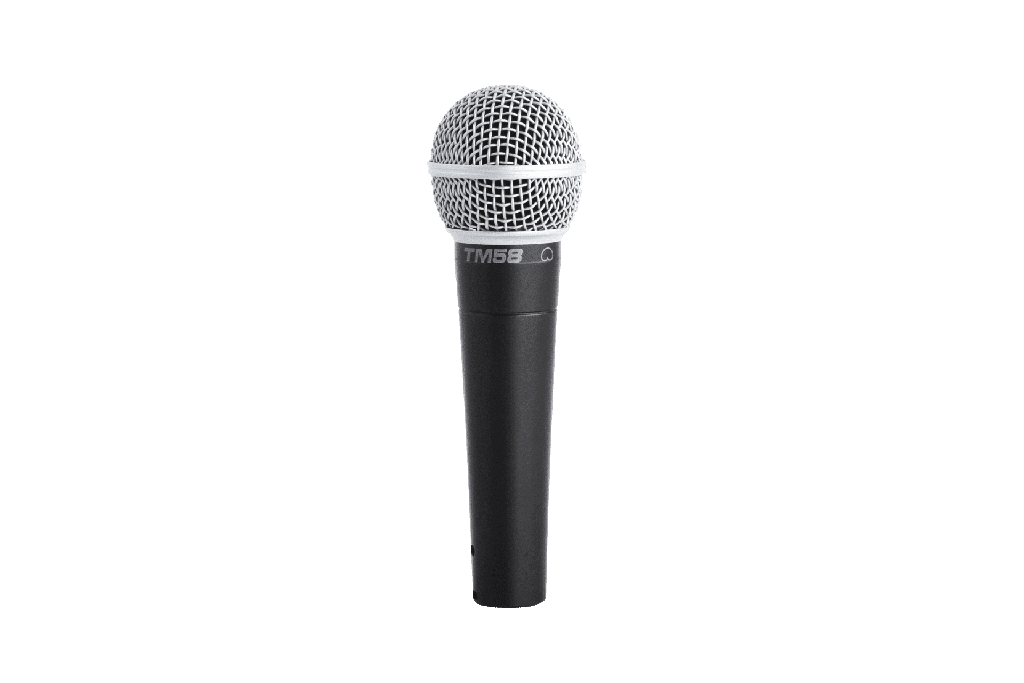

TM58 series cardioid dynamic microphones are able to deliver authentic sound without any unnecessary sound coloration which are designed for speech and performance. Equipped with tailored diaphragm and precise directivity, TM58 series give full and powerful sound.
The higher SPL and high-grade transient response of TM58 series compared with other microphones will make the stage performance strong and the penetrating. TM58 is the correct choice for the perfectionists no matter outdoors or indoors, speech or performance.
Features
• Balanced and clear true sound
• Frequency response is good for intelligent recognition and the mid- high frequency band is bright, the low frequency band is solid powerful
• High SPL capacity
• Newly-designed capsule shock mount
Specifications
Type：Dynamic microphone
Polar pattern：Unidirectional (Cardioid), rotationally symmetrical about microphone axis, uniform with frequency. (Figure 1)
Frequency response：50 to 18,000 Hz (Figure 2)
Sensitivity(at 1,000 Hz Open Circuit Voltage)：-53±2 dB , 1Pa=94dB SPL
Rated impedance：250Ω
Max. SPL (1 kΩ load)：155 dB SPL (THD!ظ1% 1kHz)
Connector：Integral 3 pin male XLR type
Finish：Metal structure, grey, namel -painted , matte finished
Environmental conditions：The TM58 Series operates between -10 to +50 (14 to 122 ) with relative humidity between 0 to 95%.
Dimensions：Φ51.0mm x 163.0mm (2.00 in. x 6.41in.) (Figure 3)
Net weight：320 g
RoHS：The TM58 Series including the product and packages follow the instruction of EU 2002/95/EC and comply to RoHS=
