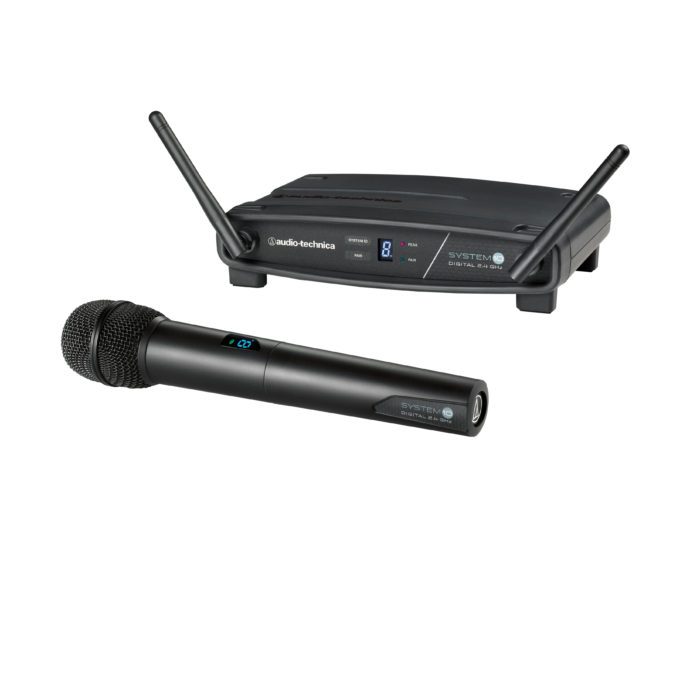

System 10 Wireless Handheld System

Audio-Technica’s System 10 is a digital high-fidelity wireless system designed to provide performing musicians and presenters with advanced 24-bit operation, easy setup and clear, natural sound quality. Operating in the 2.4 GHz range, far from TV and DTV interference, System 10 offers extremely easy operation and instantaneous channel selection. Up to eight channels may be used together without any frequency coordination problems or group selection issues. System 10 receivers and transmitters offer an easy-to-read digital ID display.
System 10 wireless ensures clear communications by providing three levels of diversity assurance: frequency, time, and space. Frequency Diversity sends the signal on two dynamically allocated frequencies for interference-free communication. Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference. Finally, Space Diversity uses two antennas on each transmitter and receiver to maximize signal integrity.
Featuring stackable, contemporary styling, System 10 is available in multiple system configurations, with handheld vocal microphone/transmitters and UniPak® body-pack transmitters designed for use with lavalier, headworn and instrument microphones as well as electric guitars. Each configuration includes the ATW-R1100 receiver and either a body-pack transmitter or handheld microphone/ transmitter. The ATW-R1100 is a digital receiver offering volume control along with AF Peak and Pair indicator lights.

 Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
 2.4 GHz range – completely free from TV interference
 Three levels of diversity assurance: frequency, time, & space
 Automatic frequency selection for seamless, interference-free operation
 Extremely easy operation with instantaneous channel selection, sync, and set-up
 State-of-the-art digital receiver for reliable performance
 Balanced XLR and unbalanced 1/4” output jacks with level control

OVERALL SYSTEM SPECIFICATIONS

Operating Frequencies
2.4 GHz ISM band

Dynamic Range
>109 dB (A-weighted), typical

Total Harmonic Distortion
<0.05% typical

Operating Range
30 m (100′) typical
Open range environment with no interfering signals

Operating Temperature Range
0° C to +40° C (32° F to 104° F)
Battery performance may be reduced at very low temperatures

Frequency Response
20 Hz to 20 kHz
Depending on microphone type

RECEIVER SPECIFICATIONS

Receiving System
Diversity (frequency/time/space)

Maximum Output Level
XLR, balanced: 0 dBV
1/4″ (6.3 mm), unbalanced: +6 dBV

Power Supply
100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply

Dimensions
190.0 mm (7.48″) W x 46.2 mm (1.82″) H x 128.5 mm (5.06″) D

Net Weight
290 grams (10.2 oz)

Accessory Included
Power supply

HANDHELD TRANSMITTER SPECIFICATIONS

RF Power Output
10 mW

Spurious Emissions
Following federal and national regulations

Batteries
Two 1.5V AA
not included

Battery Life
>7 hours (alkaline)
Depending on battery type and use pattern

Dimensions
254.8 mm (10.03″) long,
50.0 mm (1.97″) diameter

Net Weight
280 grams (9.9 oz)
without batteries

Accessory Included
AT8456a Quiet-Flex™ stand clamp
