Easy overdub recording and DAW transfer with a built-in, high sound quality microphone
Music sketchpad that can record anywhere – a must-have for any songwriter

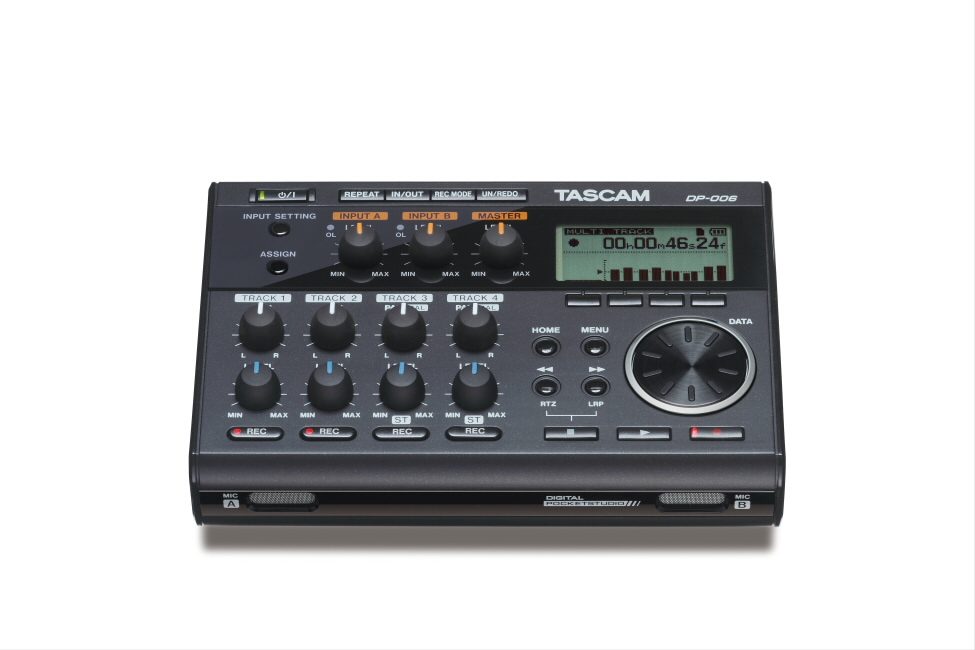

The DIGITAL POCKETSTUDIO DP-006 and DP-008EX are battery-operable multi-track recorders.
Easy to carry around, they are perfect as a song-writer’s external-use music sketchpad.
A user interface that enables intuitive operation similar to cassette MTR
Easy to operate, just like a cassette MRT, with recording preparation achievable in just two steps after turning the device on.
A high-quality microphone is already built-in, so there is no need for an external mic.
Each track has a designated knob so that users can intuitively operate each track without having to rely on the screen. SD/SDHC cards are used for recording media, allowing data to be transferred to the computer via USB.
Choose the DP-008EX for more sophisticated music production
If you wish to obtain a higher-quality music sketchpad, the DP-008EX is the recommended model. In addition to the XLR inputs that enable condenser microphones to be plugged in, the DP-008EX comes equipped with an input equalizer and reverb, enabling simple sound production.
The mastering function can increase sound bass.
With these functions in place, you‘ll wow your band members with a high-quality demo files with the DP-008EX
A multi-recorder that anyone can use to easily record their song ideas
Adding the DP-006 and DP-008EX to your production setup will increase the scope of your music production infinitely.
The music sketchpad can easily accumulate ideas and will capture that melody line as it pops into your head, all in high audio quality, further enhancing your music production.
| DP-008EX | DP-006 | |
| Recording media | SD card(512MB-2GB), SDHC card(4GB-32GB) | |
| File system | TASCAM original (MTR partition) FAT32 (FAT partition) |
|
| INPUT A/B | ||
| XLR | ||
| Connectors | XLR-3-31(1：GND, 2：HOT, 3：COLD), BALANCED | – |
| Input impedance | 2.4kohms | – |
| Nominal input level | -8dBu | – |
| Maximum input level | +8dBu | – |
| 1/4″ TS-jack | ||
| Connectors | 6.3mm(1/4″) TS-jack, UNBALANCED | |
| Input impedance | 10kohms or more(INPUT A:MIC/LINE), 1MΩ(INPUT A:GUITAR) |
|
| Nominal input level | -10dBV | |
| Maximum input level | +6dBV | |
| Headroom | 16dB | |
| Built-in microphones | Omni-directional condenser microphone x 2 | |
| LINE OUT | ||
| Connectors | RCA pin-jack | 3.5mm (1/8″) stereo mini jack |
| Nominal output level | -10dBV | -16dBV |
| Maximum output level | +6dBV | 0dBV |
| PHONES | ||
| Connectors | 3.5mm (1/8″) stereo mini jack | |
| Maximum output level | 20mW+20mW or more (THD+N less than 0.1%, 32ohms loaded) |
15mW+15mW (THD+N less than 0.1%, 32ohms loaded) |
| USB | ||
| Connectors | USB Mini-B type | |
| Format | USB2.0 HIGH SPEED mass storage class | |
| Continuous battery operation time | ||
| Alkaline battery (EVOLTA) | About 5.5H (Using line input/recording) About 6H (Using headphone/playback) |
About 8H (Using line input/recording) About 8.5H (Using headphone/playback) |
| Nickel-metal battery (eneloop) | About 6.5H (Using line input/recording) About 7H (Using headphone/playback) |
About 9H (Using line input/recording) About 9.5H (Using headphone/playback) |
| Power | Four AA batteries (Alkaline or nickel-metal battery) AC adapter (TASCAM PS-P520, sold separately) |
|
| Power consumption | 2.4W(Maximum) | 1W(Maximum) |
| Dimensions | 221(W)×44.3(H)×126.5(D)mm | 155(W)×41.5(H)×107(D)mm |
| Weight | 610g(Without batteries) | 360g(Without batteries) |
| Operating temperature | 5-35˚C | |
| Backup memory | In the PREFERENCE, contents of “Repeat Int”, “Auto Power Save”, “Contrast”, “Back Light” and “FootSW Polarity”. Contents of INPUT SETTING（Without EQ） | In the PREFERENCE, contents of “Repeat Int”, “Auto Pwr Save” and “Contrast” |
| Accessories | 4GB SD card, AA battery x4, USB cable (80cm), Warranty card, Owner’s manual | |
| Audio performance | |
| Frequency response | 20Hz to 20kHz (+1/-3dB, INPUT (MIC/LINE) to LINE OUT) |
| Distortion | Less than 0.05% (INPUT (LINE) to LINE OUT) |
| S/N ratio | More than 81dB (INPUT (MIC/LINE) to LINE OUT) |
