TASCAM AE-4D – 4-Channel AES/EBU ⇄ Dante Converter with DSP Mixer

The TASCAM AE-4D is a compact, professional 4-channel AES/EBU to Dante bi-directional converter with a built-in DSP matrix mixer, designed for modern installed AV, broadcast, and live sound systems. Supporting up to 96 kHz / 24-bit audio, PoE power, and flexible remote control, the AE-4D is an ideal bridge between traditional digital audio equipment and Dante-based networks.

With its half-rack footprint, the AE-4D integrates easily into racks, podiums, AV cabinets, and mobile systems where space, reliability, and clean digital audio routing are critical.

AES/EBU and Dante – Seamless Digital Integration

The AE-4D allows you to:

• Convert 4 channels of AES/EBU to 4 channels of Dante

• Convert 4 channels of Dante back to AES/EBU

• Route signals in either direction simultaneously

This makes it ideal for integrating mixers, DSPs, broadcast gear, and digital playback systems that use AES/EBU into a Dante network — or distributing Dante signals back out to AES/EBU destinations.

Built-In Sampling Rate Conversion

Each AES/EBU input includes a sampling rate converter, allowing sources with differing clock rates to be used reliably within a Dante system — a major advantage in mixed-format professional environments.

Built-In DSP Mixer for Small-Scale Systems

The AE-4D features an internal DSP matrix mixer, enabling:

• Input/output routing

• Level control

• Signal matrixing

• Scene-based configuration

This allows small Dante systems to operate without requiring an external DSP, making the AE-4D a powerful core component in compact installs.

PoE Powered for Clean Installations

The AE-4D supports Power over Ethernet (PoE), allowing both power and audio networking over a single Ethernet cable.
Benefits include:

• No external power adapter required

• Reduced installation complexity

• Lower infrastructure and labour costs

• Clean rack and cabinet layouts

(AC power is not required when PoE is used via a compatible network switch.)

Flexible Remote Control Software

Two dedicated control applications are available, depending on user needs:

TASCAM DCP CONNECT

Designed for system integrators and administrators:

• Full system configuration

• Input/output routing

• DSP and matrix design

• Scene creation and recall

TASCAM EZ CONNECT

Designed for end users:

• Simple, clean UI

• Limited controls such as area volume adjustment

• Ideal for venues, staff, or non-technical users

Both applications are compatible with:

• Windows

• macOS

• iOS

• Android

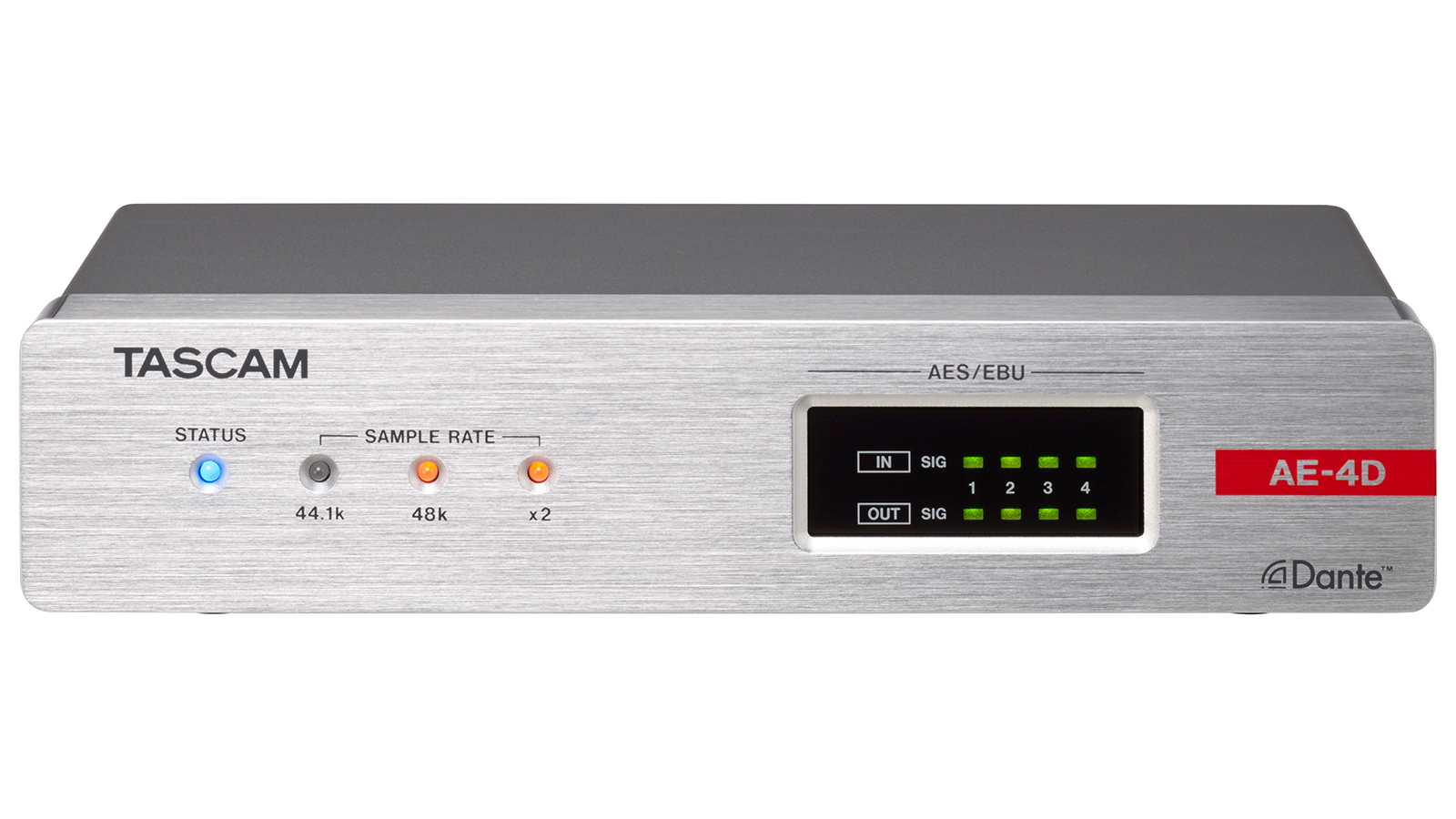

Clear Signal Monitoring

Front-panel signal indicators allow quick confirmation of:

• AES/EBU input activity

• AES/EBU output status

• Dante signal presence

This is especially useful during commissioning, troubleshooting, and live operation.

Key Features

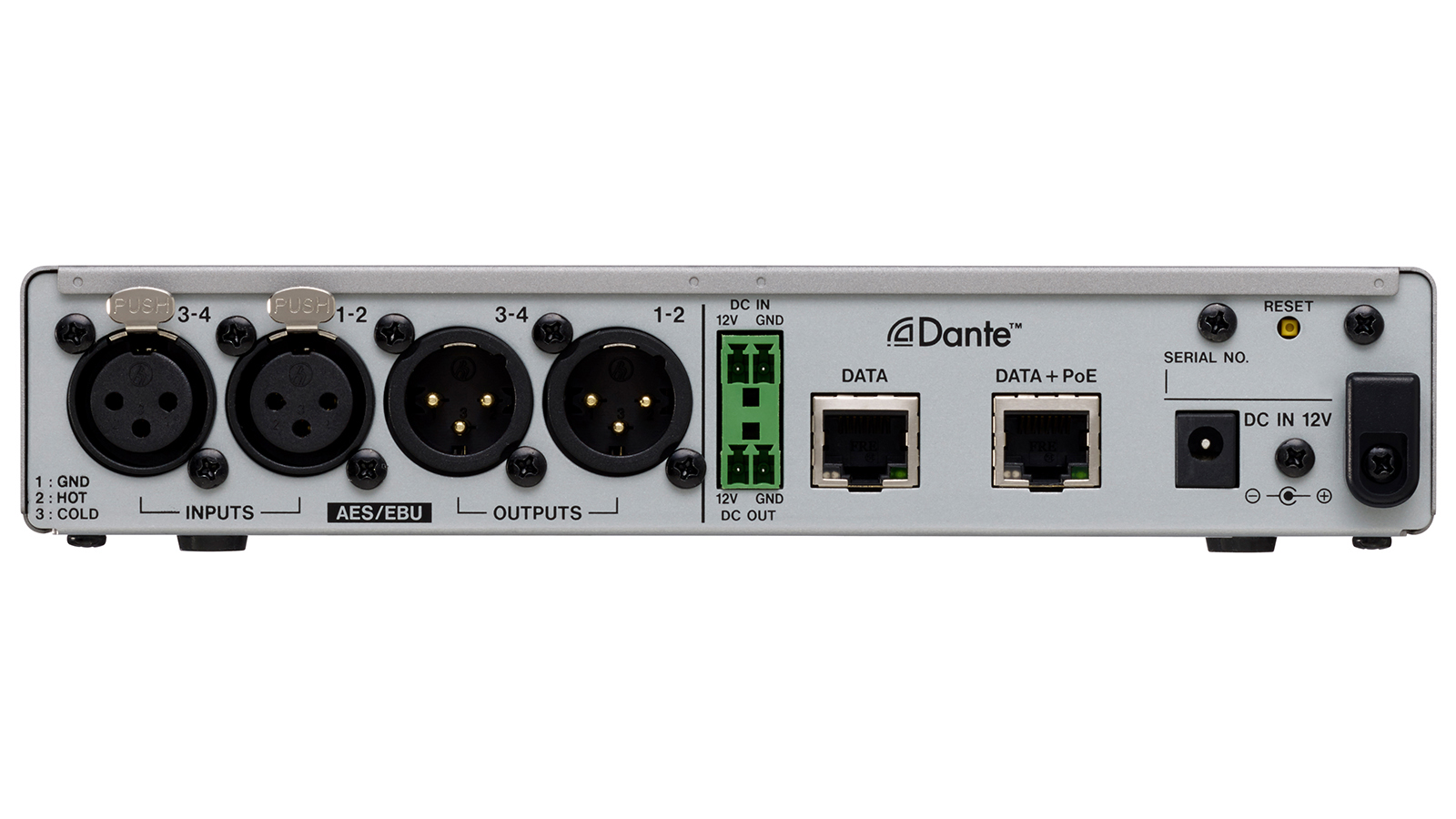

• 4 × AES/EBU input/output channels (XLR)

• 4 × Dante input/output channels

• Built-in DSP matrix mixer

• Sampling rate converters on AES/EBU inputs

• PoE (Power over Ethernet) support

• Half-rack mountable chassis

• Two control software options (integrator & end-user)

• Signal presence indicators

• Supports up to 96 kHz / 24-bit audio

Specifications

• Audio Format:
  AES/EBU ⇄ Dante, up to 96 kHz / 24-bit

• Dimensions:
  214 (W) × 44.45 (H) × 136.1 (D) mm

• Weight:
  795 g

• Mounting:
  Half-rack (installation brackets included)

• Power:
  PoE (via Ethernet)

What’s in the Box

• AE-4D main unit × 1

• Installation brackets × 2

• Owner’s manual (including warranty) × 1

Ideal Applications

• Dante-based installed AV systems

• Broadcast and studio routing

• Houses of worship

• Conference and council chambers

• Theatres and performance venues

• Any system requiring AES/EBU ↔ Dante conversion with DSP control
