TASCAM BO-16DX/IN D-Sub to XLR Input Adapter for Professional Installations

The TASCAM BO-16DX/IN is a rugged, 1U rackmount input breakout adapter designed for professional AV installations, live sound systems, and networked audio workflows. It provides a clean and reliable way to interface 16 balanced XLR inputs on the front panel with dual AES59-2012–compliant D-Sub outputs on the rear—perfect for fast, organised connections between stage boxes, FOH and monitor consoles, audio-over-IP converters, and patch systems.

With its compact depth and flexible mounting options, the BO-16DX/IN is ideal for both fixed installations and portable rack systems.

Clean XLR to D-Sub Integration

The BO-16DX/IN features:

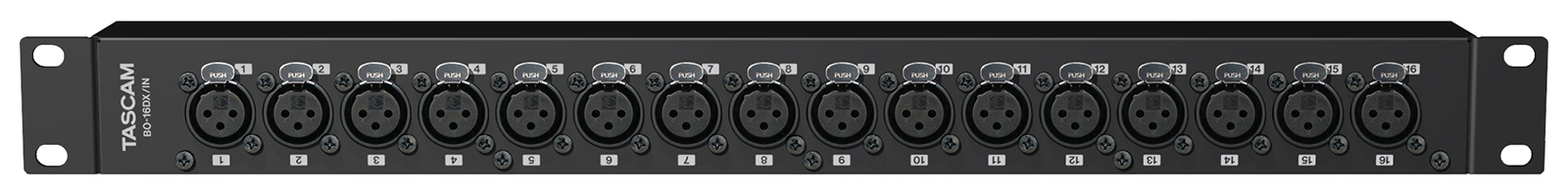

• 16 front-panel XLR input connectors for microphones or line-level sources

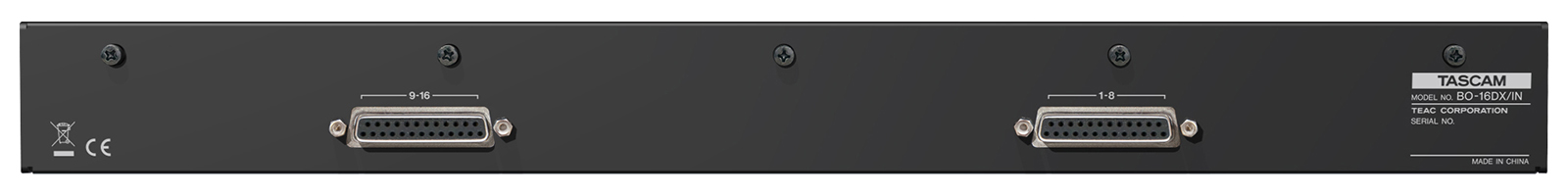

• Two rear-panel 25-pin D-Sub outputs using TASCAM pin assignments

• Full compliance with AES59-2012, ensuring compatibility with standard D-Sub looms

This makes it an ideal interface between traditional analogue audio connections and modern digital or networked systems.

Perfect Companion for Dante & AoIP Systems

Designed as a companion to the TASCAM ML-16D and ML-32D Analog-to-Dante converters, the BO-16DX/IN (paired with the BO-16DX/OUT) creates an elegant and service-friendly bridge between analogue audio sources and Dante networks.

Typical applications include:

• Connecting stage inputs to Dante converters

• Linking FOH and monitor consoles via structured cabling

• Clean patch-bay style routing in equipment racks

• Fixed installs in theatres, houses of worship, and corporate AV systems

Flexible Rack Mounting Options

To simplify rack layout and cable management, the BO-16DX/IN offers multiple mounting configurations:

• Reversible 180-degree mounting

  • Install facing forward or backward to suit cable flow

• Removable rack ears

  • Allows tabletop or shelf use when not rackmounted

• Ultra-short depth

  • Only approx. 45 mm (1.8″) behind the rack ears

  • Can be mounted at the rear of a rack case or used as a front-panel patch bay

An allowance of approximately 13 mm clearance above each XLR connector ensures easy access to release levers even when units are stacked closely.

Key Features

• 16 × XLR input connectors on the front panel

• Dual D-Sub outputs on the rear (AES59-2012 compliant)

• Uses TASCAM standard D-Sub pinout

• 1U rackmount design

• Short chassis depth for flexible rack layouts

• Multiple mounting orientations (front, rear, or tabletop)

• Rackmount screws included

Specifications

• Dimensions:
  482.6 × 44.1 × 54.5 mm (19.0″ × 1.7″ × 2.1″)

• Weight:
  0.9 kg / 1.99 lbs

• Rack Size:
  1U

What’s in the Box

• BO-16DX/IN × 1

• Rackmount screw kit × 1

• TASCAM ID registration guide × 1

• Owner’s manual (including warranty) × 1

Why Choose the BO-16DX/IN?

The BO-16DX/IN is a clean, professional-grade solution for organising and routing multi-channel analogue audio in modern systems. Whether you’re building a Dante-based installation, tidying up rack wiring, or creating a flexible patch interface, it delivers reliability, compatibility, and installer-friendly design in a compact 1U format.
