TASCAM CA-XLR2d-N XLR Microphone Adapter (Nikon Version)

The TASCAM CA-XLR2d-N is the Nikon-specific version of TASCAM’s professional XLR microphone adapter for mirrorless cameras. The “N” designation means this model is optimised for Nikon cameras, supporting direct digital audio transmission and power via the Nikon accessory shoe on compatible models.

With dual XLR/TRS inputs, a high-performance HDDA microphone preamplifier, and direct digital audio output to the camera, the CA-XLR2d-N delivers clean, low-noise, professional sound without the need for external recorders or audio syncing in post.

Designed for Nikon Mirrorless Cameras

When used with compatible Nikon cameras, the CA-XLR2d-N:

• Transmits digital audio directly through the accessory shoe

• Draws power from the camera body (no batteries required)

• Eliminates analogue noise and post-production sync workflows

Note: This is the Nikon (-N) version. For Canon or FUJIFILM cameras, use the corresponding -C or -F models. The CA-XLR2d-N can also be used with other cameras via the included battery holder and analogue cable, but digital shoe audio is Nikon-only.

Key Features

• Nikon-specific digital shoe interface (-N version)

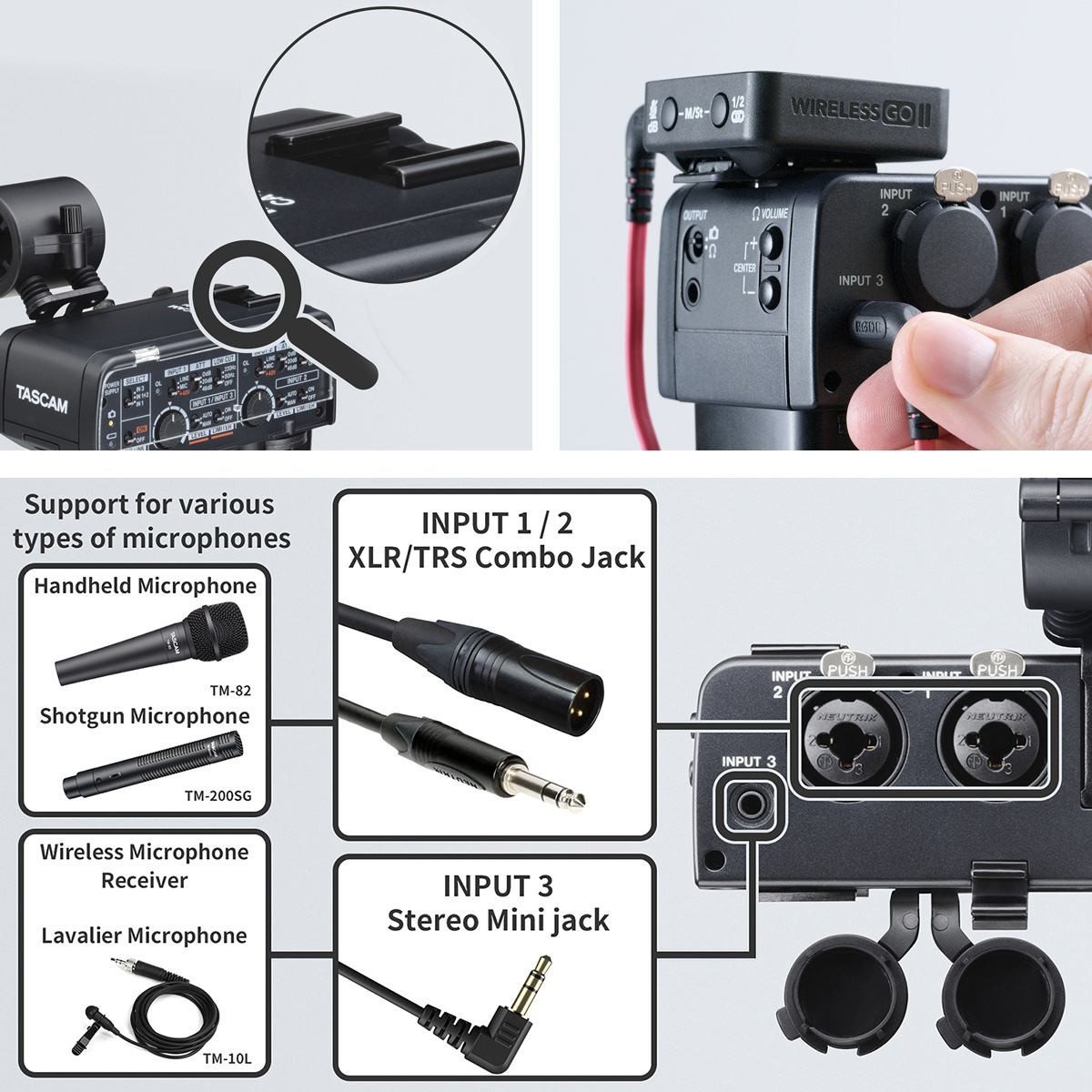

• 2 × XLR/TRS combo inputs with mic/line switching

• +48V phantom power for condenser microphones

• HDDA mic preamps for low noise and wide dynamic range

• Direct digital audio transmission to compatible Nikon cameras

• 3.5 mm (1/8″) stereo mini input for lav or plug-in-power microphones

• Cold shoe on top panel for additional accessories

• Shock-mount mic holder and integrated cable management

What’s in the Box

• CA-XLR2d-N unit (with bottom connector cover) × 1

• CA-AK1-N accessory shoe mount adapter (attached) × 1

• CA-AK1-AN cold shoe mount adapter × 1

• Battery holder × 1 (requires 2 × AA batteries, not included)

• Mic holder (attached) × 1

• 3.5 mm (1/8″) stereo mini cable × 1

• Quick guide (including warranty) × 1

• TASCAM ID registration guide × 1

Specifications

• Inputs:

  • 2 × XLR/TRS combo (mic/line, +48V phantom power)

  • 1 × 3.5 mm stereo mini input

• Dimensions: 88.2 (W) × 119.1 (H) × 110.0 (D) mm (excluding protrusions)

• Weight: 341 g (mic holder attached, battery holder not attached)
